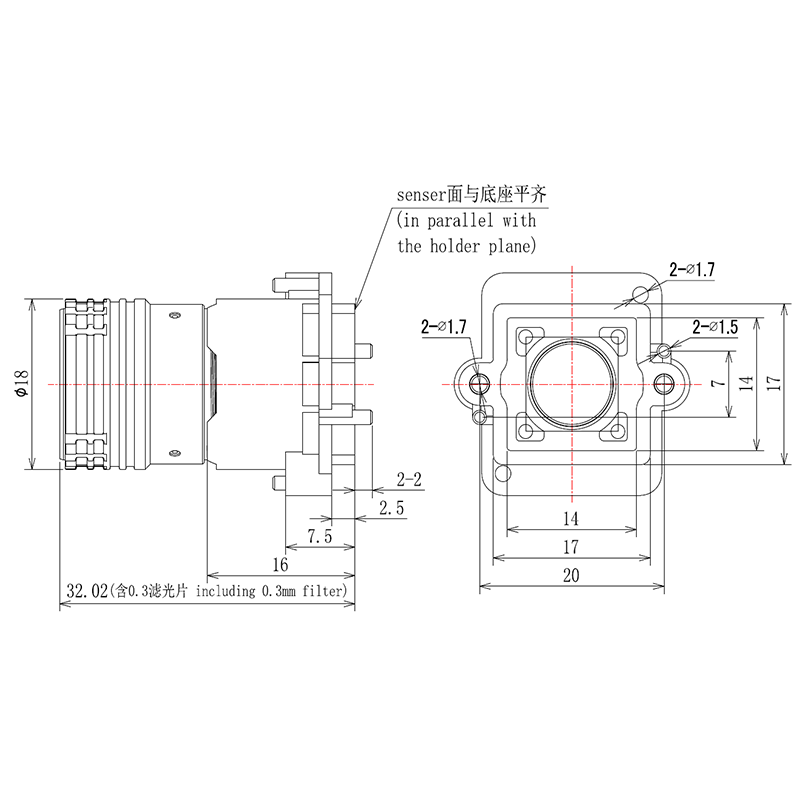

CCL1270610MPF
1/2.7″ 6mm low-distortion lens, 2-megapixel, M16XP0.5 mount, F1.0 CCTV lens.
CCL1270610MPF is 1/2.7″ 6mm low-distortion lens with IR cut Filter, 2-megapixel resolution, M16XP0.5 mount, F1.0 Large aperture CCTV lens.
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 6mm |
| F.O.V.(1/2.7″) | 64°(D) |
| 56°(H) | |
| 31°(V) | |
| DISTORTION | <-2.5% |
| RESOLUTION | 2 Megapixel |
| MOUNT | M16XP0.5 |
| APERTURE | F1.0 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| B.F.L. | 6.03mm |
| T.T.L. | 31.92mm |
| CONSTRUCTION: | Lens+Holder+IR cut Filter |
