S02214012018F
1/4″ , 2.2mm, 120 degree wide angle S mount, F1.8, IP67 waterproof automotive lens.

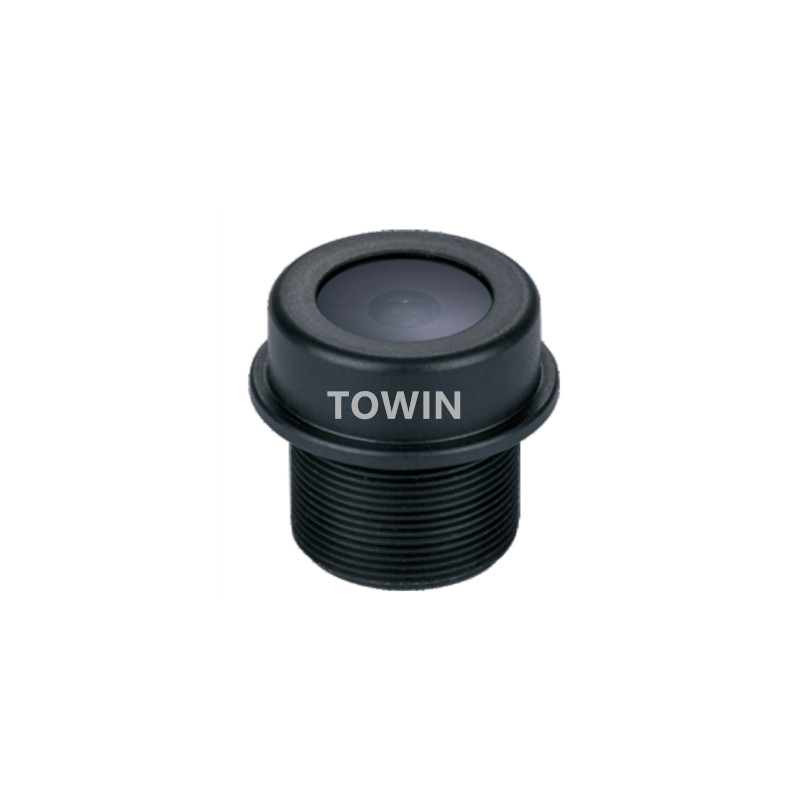

S02214012018F is a 2.2mm IP67 wide angle S-Mount lens. It is designed for 1/4″ sensors, such as AR0140AT, OV9712. It is waterproof automotive lens with very short T.T.L. 16mm.
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 2.2mm |
| F.O.V. | 160° |
| 120° | |
| 70° | |
| RESOLUTION | 1.3 MP |
| DISTORTION | <81% |
| APERTURE | F1.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 16mm |
| STRUCTURE | 4G1M+IRCF |
| MARK | IP67 |

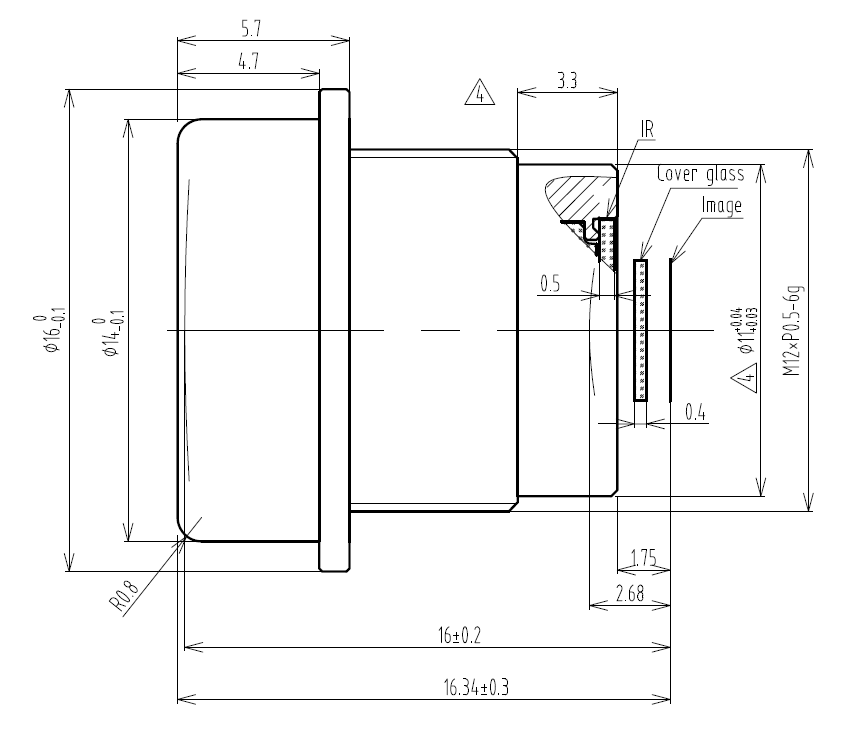

S02214012018F 2.2mm IP67 S-Mount lens-1
