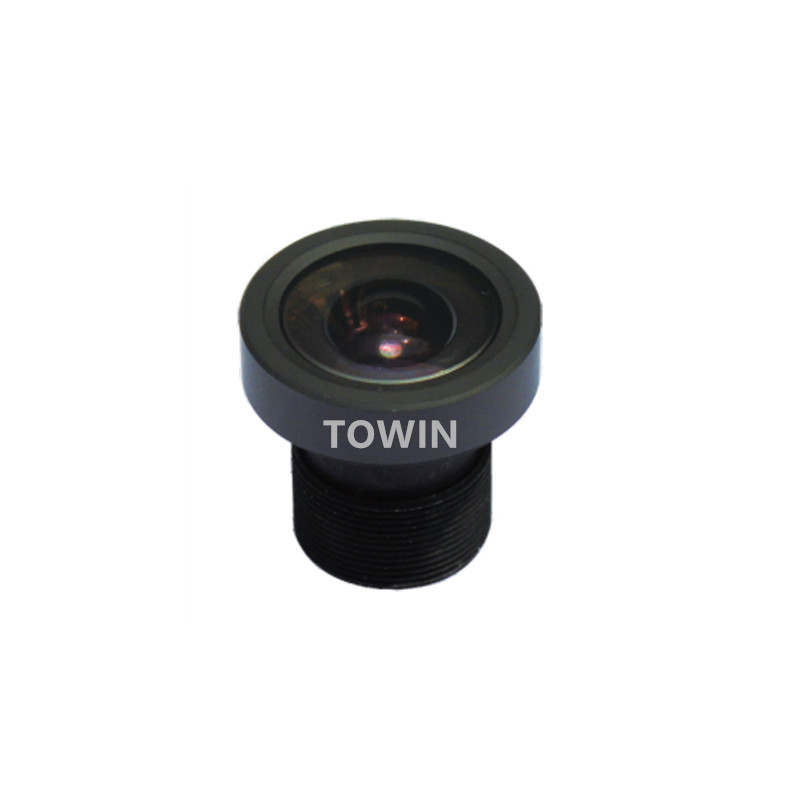

S02513011620F is a 2.5mm HD S-Mount lens. It is designed for 1/3″ sensors, such as AR0130, OV4688, IMX258, 5 Mega Pixel. And it is a wide angle board lens with H FOV 116 degree.
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 2.5mm |
| F.O.V. | 148° |
| 116° | |
| 86° | |
| RESOLUTION | 5 MP |
| TV DISTORTION | <14% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 22mm |
| STRUCTURE | 6G+IRCF |

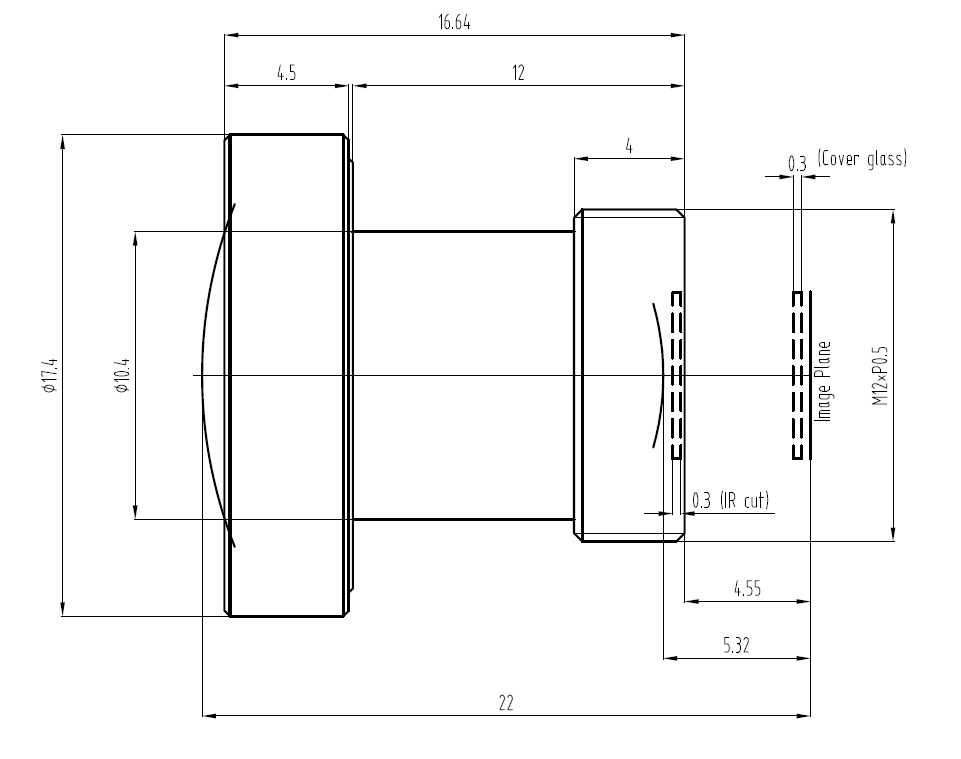

S02513011620F 2.5mm HD S-Mount lens-1
