S02312912522F69

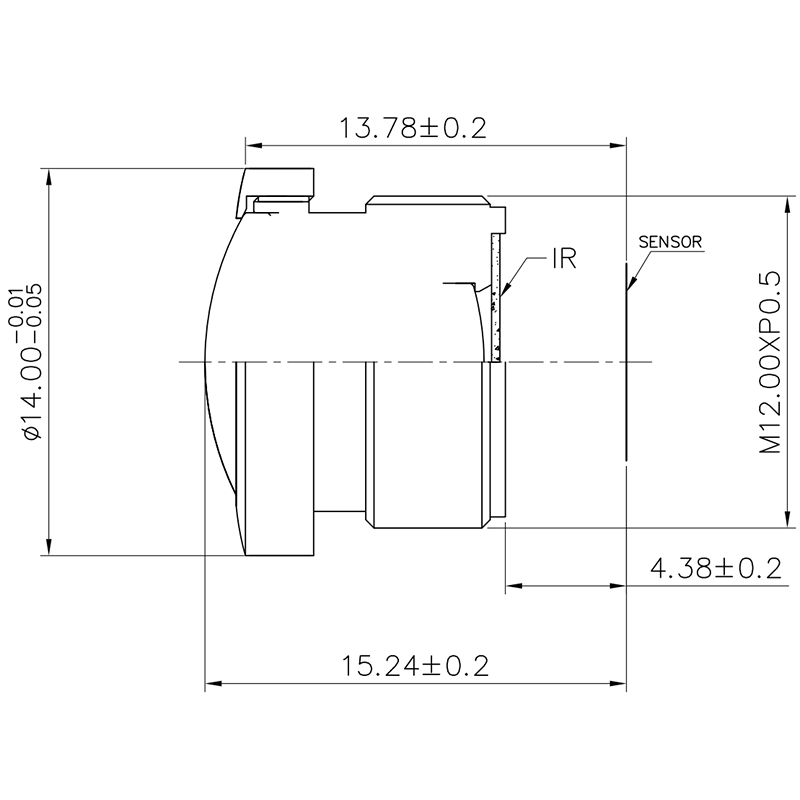

Wide-angle 2-Megapixel CCTV lens with Built-In IR Filter, 1/2.9″ M12/S-Mount lens 154°(D) F2.2 IP69 waterproof security surveillance.
S02312912522F69 is Wide-angle 2-Megapixel CCTV lens with Built-In IR Filter, 1/2.9″ M12/S-Mount lens 154°(D) F2.2 IP69 waterproof security surveillance.
| IMAGE FORMAT | 1/2.9″ |
| FOCAL LENGTH | 2.3mm |
| F.O.V. (IMX273) | 154°(D=6.26) |
| 125°(H=5.02) | |
| 100° (V=3.74) | |
| RESOLUTION | 2 MP |
| DISTORTION | <-39% |
| APERTURE | F2.2 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 15.24mm |
| STRUCTURE | 6G+IRCF |
| WATERPROOF | IP69 |
