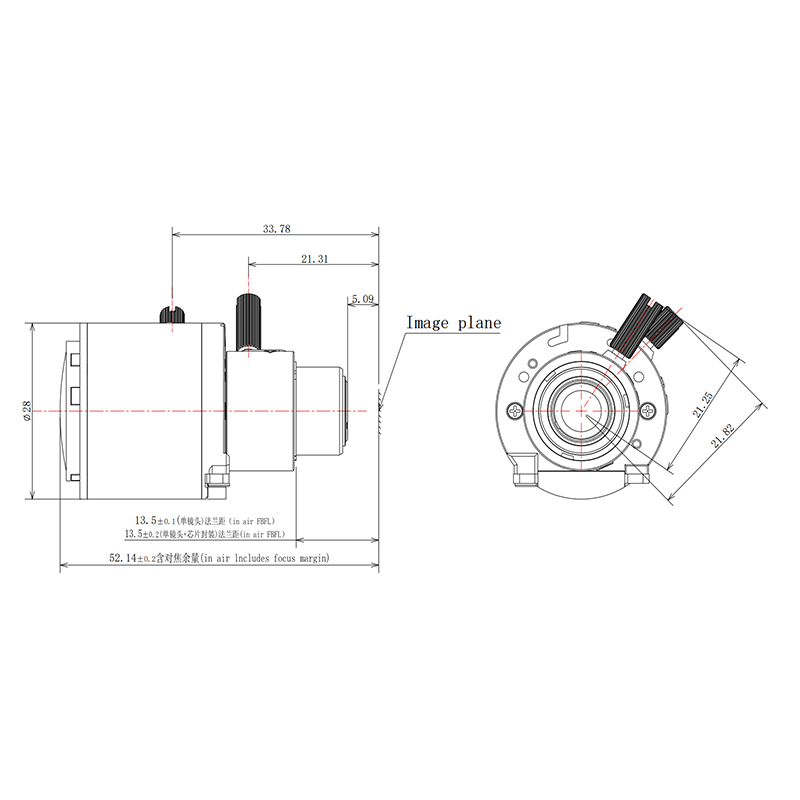

CCTV Lens – D14301012716F2

D14301012716F2 is 3-10mm Wide-angle CCTV lens, 1/2.7″ manual zoom and focus lens, 2-Megapixel resolution, F1.6~F3.0 aperture φ14 Mount lens.

3-10mm Φ14 2MP Manual Zoom Wide Angle CCTV Lens

This 3-10mm Φ14 manual zoom CCTV lens is designed for wide-area security and surveillance systems requiring flexible field-of-view adjustment. With a 130° maximum diagonal FOV, F1.6–F3.0 variable aperture, 2MP resolution, and a compact Φ14 mount, it provides flexible framing for different monitoring distances and installation environments.

Manual Zoom CCTV Lens Core Highlights at a Glance

• 3–10mm manual zoom range for flexible wide-angle to narrower scene framing
• 130° maximum diagonal FOV for broad-area surveillance
• F1.6–F3.0 aperture range supports different focal-length configurations
• 0.2m M.O.D. enables relatively close-range monitoring
• Φ14 compact mount for space-conscious camera integration

Manual Zoom CCTV Lens Applications

Core Application Scenes

The 3–10mm focal-length range allows users to adjust the viewing angle according to the installation distance and surveillance area. At 3mm, the lens provides a broad 130° diagonal FOV for large-area monitoring. Moving toward 10mm narrows the field of view to 37° diagonal, making it more suitable for focused observation of specific areas.

Designed for flexible CCTV surveillance applications, this lens can be used in:

• Indoor security monitoring
• Retail store surveillance
• Building entrances and reception areas
• Corridors and passageways
• Small commercial facilities
• Office security systems
• General-purpose IP camera systems
• Close-range area monitoring
• Multi-distance surveillance installations

The 0.2m minimum object distance also provides flexibility for installations where the monitored subject may be relatively close to the camera.

For projects requiring different focal lengths or mounting configurations, explore TOWIN’s CCTV Lens Products and C-Mount Lenses.

Compatible Device List

This lens can be considered for integration with:

• CCTV cameras
• IP security cameras
• Compact surveillance cameras
• Indoor monitoring cameras
• Commercial security camera modules
• Custom OEM camera assemblies
• Embedded surveillance systems

The Φ14 mount should be checked against the camera housing and mechanical interface before integration.

Optical Selection Considerations

A key feature of this lens is its 3–10mm manual zoom range. Unlike a fixed focal lens, the user can manually adjust the focal length during installation to obtain the required framing.

At the 3mm setting, the lens provides a 130° diagonal FOV, which is useful when broad scene coverage is required. At the 10mm setting, the FOV decreases to 37° diagonal, providing a more concentrated view of a specific monitoring area.

This makes the lens useful for surveillance systems where installation conditions may vary and the exact viewing angle needs to be adjusted after camera positioning.

When selecting a lens, sensor format, working distance, required FOV, resolution, and mechanical compatibility should all be considered. TOWIN’s Lens Selection Guide provides additional information for choosing an appropriate optical configuration.

You can also use the FOV Calculator to estimate the relationship between focal length, sensor size, and image coverage.

For users comparing different optical principles and parameters, the Lens Basics section provides additional technical reference information.

Frequently Asked Questions

Q1: What type of lens is the 3–10mm Φ14 lens?
A: It is a manual zoom wide-angle CCTV lens designed for 1/2.7″ sensors, with a focal-length range of 3–10mm.

Q2: What is the maximum field of view of this lens?
A: The maximum specified FOV is 130° diagonal, 108° horizontal, and 57° vertical, achieved at the wide 3mm focal-length setting.

Q3: Can the focal length be adjusted?
A: Yes. The lens provides a manual 3–10mm zoom range, allowing the viewing angle to be adjusted according to the surveillance scene.

Q4: What is the resolution of this CCTV lens?
A: The lens is specified for 2 Megapixel imaging and is designed for camera systems using a compatible 1/2.7″ image format.

Q5: What is the minimum object distance?
A: The specified M.O.D. is 0.2m, making the lens suitable for monitoring relatively close subjects as well as general surveillance scenes.

Q6: Is this lens suitable for indoor security cameras?
A: Yes. The 3–10mm focal-length range and wide-angle capability make it suitable for indoor surveillance applications such as offices, retail spaces, entrances, and corridors.

Q7: What should I check before using this lens with my camera?
A: Check the camera’s sensor format, mechanical mounting interface, required FOV, working distance, and available back focal length. The lens is designed for a 1/2.7″ image format and uses a Φ14 mount.

Q8: Can TOWIN provide other zoom or CCTV lens configurations?
A: Yes. TOWIN provides various optical configurations for CCTV, security, industrial, and embedded imaging applications. Contact TOWIN with your sensor size, focal-length range, FOV, and mechanical requirements for a suitable configuration.
