Low distortion wide angle 72° M8 mount lens 1/5″ for OV7740 car rear view driving recorder

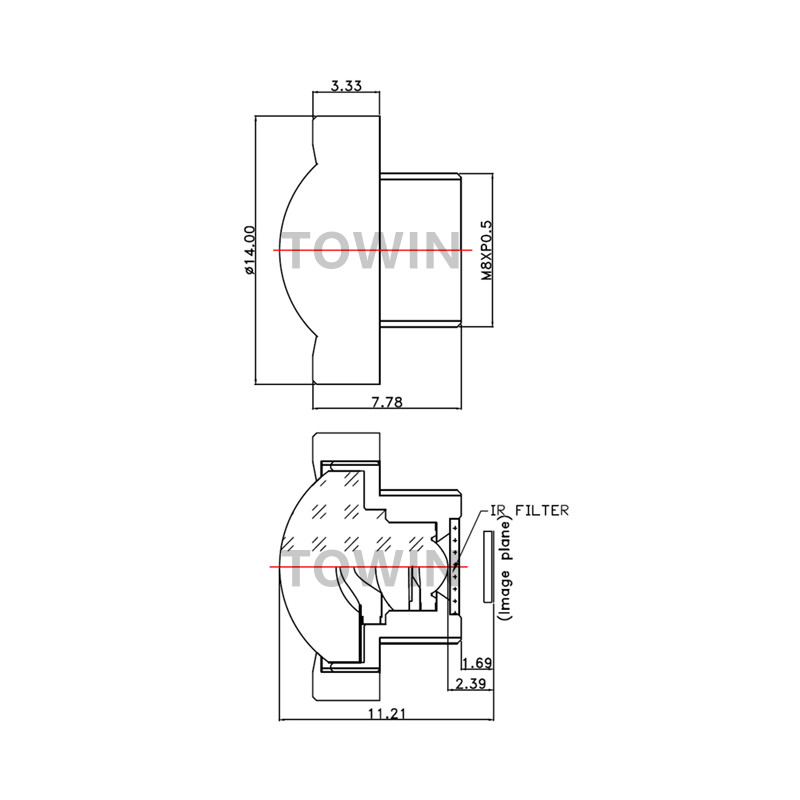

CCL15019F Low distortion wide angle 72° M8 mount lens 1/5″ for OV7740 car rear view driving recorder
| IMAGE FORMAT | 1/5″ |
| FOCAL LENGTH | 1.9mm |
| F.O.V. | 90°(D) |
| 72°(H) | |
| 60°(V) | |
| RESOLUTION | VGA |
| TV DISTORTION | <-3% |
| APERTURE | F1.8 |
| MOUNT | M8X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| T.T.L. | 11.21mm |
| LENS COMPOMEMT | 2G2P+IR cut |
CCL15019F Low distortion wide angle 72° M8 mount lens for OV7740 car rear view driving recorder
Online contact
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
