Low distortion wide angle 5mm 45° 1/4″ M12 mount lens HD MP for PC web camera
CCL14049MP Low distortion wide angle 5mm 45° 1/4″ M12 mount lens HD MP for PC web camera
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 4.9mm |
| D.F.O.V. | 55° |
| RESOLUTION | Megapixel |
| OPTICAL DISTORTION | <-1.2% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 1.3mm |
| T.T.L. | 10.30mm |

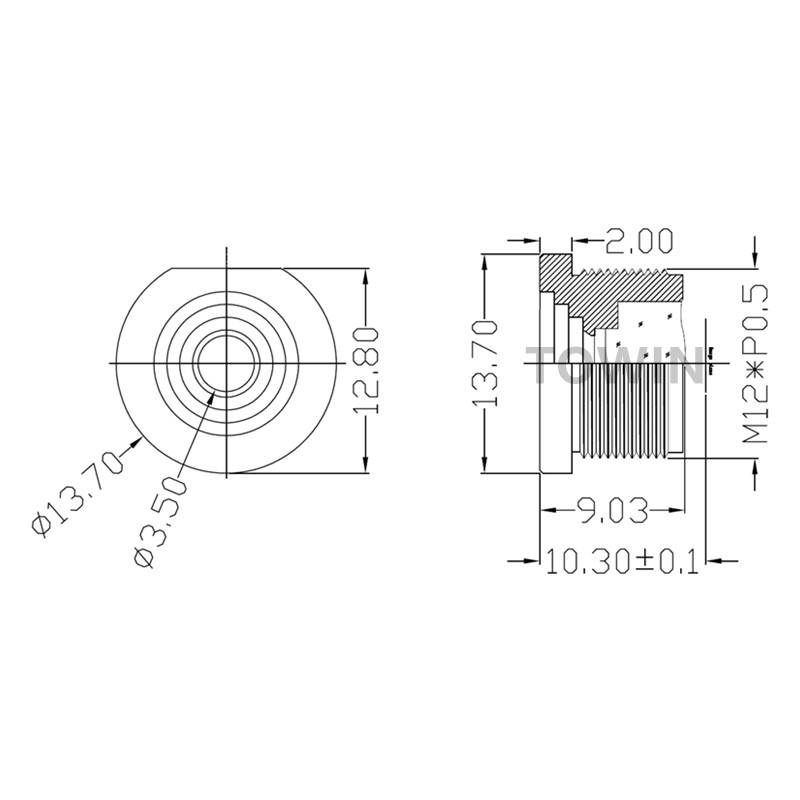

| DIMENSION | Φ13.7×9.03mm |
| LENS COMPOMEMT | 4P |
CCL14049MP Low distortion wide angle 5mm 45° M12 mount lens HD MP for PC web camera
