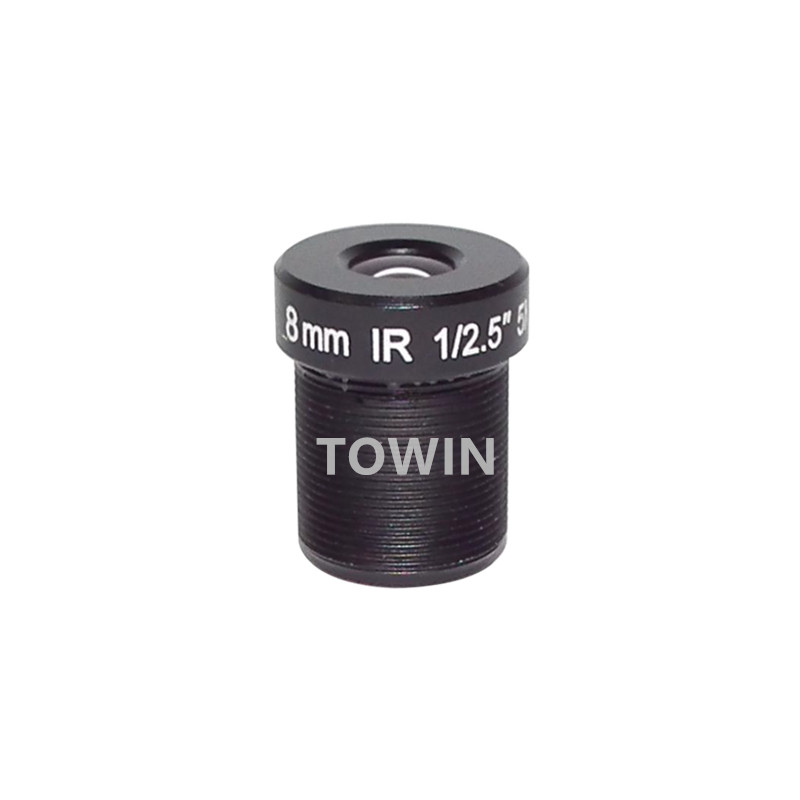

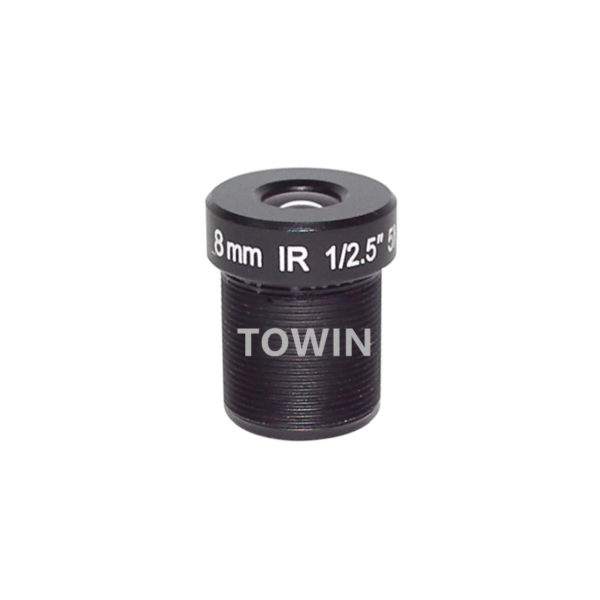

CCL13080MPFR M12 S-mount 8mm HD CCTV board lens for 1/3″ AR0330 3MP IR corrected
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 8mm |
| F.O.V. | 45°(D) |
| 36°(H) | |
| 27°(V) | |
| RESOLUTION | 3 MP |
| DISTORTION | <-6% |
| APERTURE | F2.0 |
| MOUNT(mm) | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 8.2mm |
| T.T.L. | 23.30mm |
| DIMENSION | Φ14×16.4mm |
| CONSTRUCTION | 6G+IR cut |

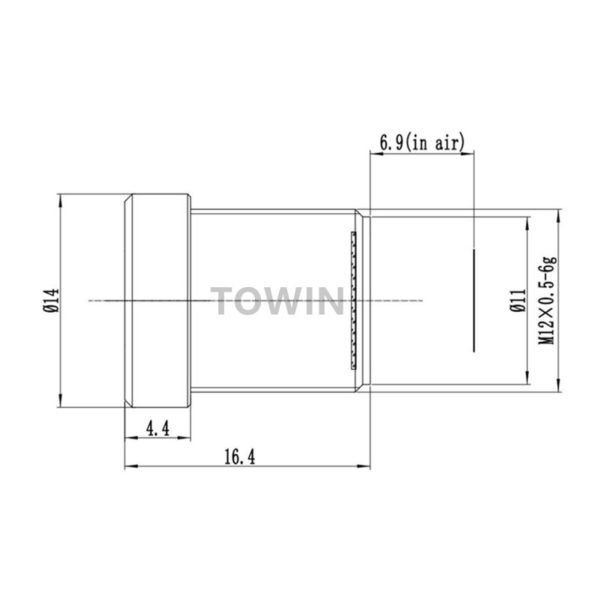

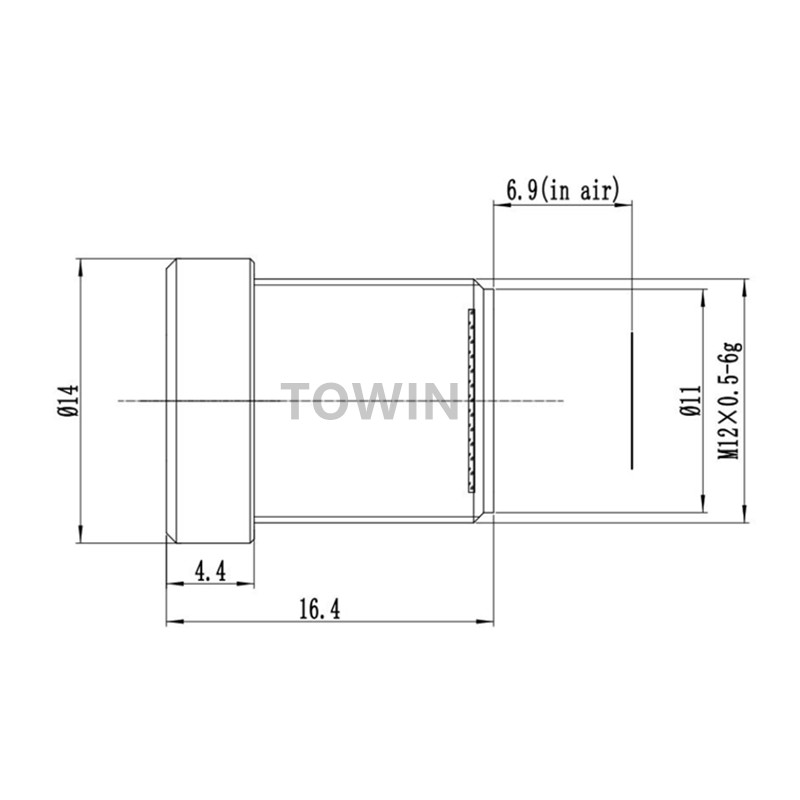

CCL13080MPFR M12 S-mount 8mm HD board lens-1
