CCL13029MPFR

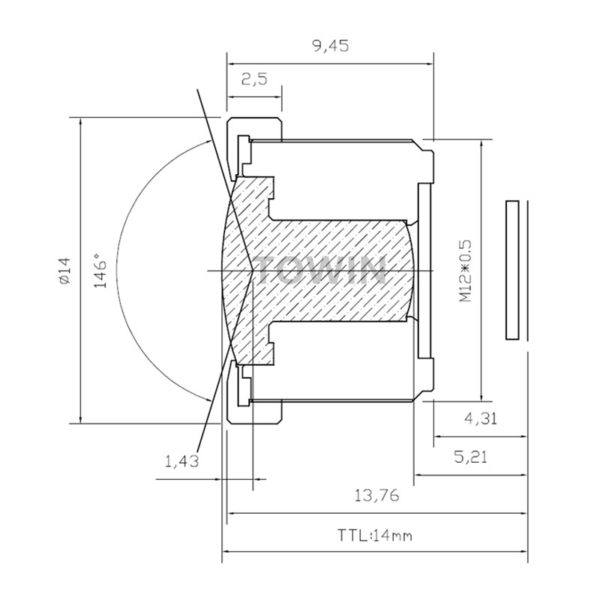

Wide Angle M12 S-mount board lens 2.9mm short TTL for OV4689 car view recorder
CCL13029MPFR Wide Angle M12 S-mount board lens 2.9mm short TTL for OV4689 car view recorder
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 2.9mm |
| F.O.V. | 141°(D) |
| 110°(H) | |
| 69°(V) | |
| F.O.V.(@OV2710, 1/2.7″) | 160°(D) |
| 130°(H) | |
| 66°(V) | |
| RESOLUTION | 4 Megapixel |
| DISTORTION | <45% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.21mm |
| TTL | 14 |
| M.O.D. | 0.2m |
| LENS COMPOMEMT | 5G+IR cut |
CCL13029MPFR Wide Angle M12 S-mount board lens 2.9mm short TTL for OV4689 car view recorder
