CCL127032MPF is a 1/2.7″ 3.2mm wide angle M12 S-mount board lens for sensor OV2710 with short T.T.L. and IR cut off filter.
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 3.2mm |
| F.O.V.(OV2710) | 144.5°(D) |
| 116°(H) | |
| 60°(V) | |
| RESOLUTION | 4 MegaPixel |
| DISTORTION | <-43% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |

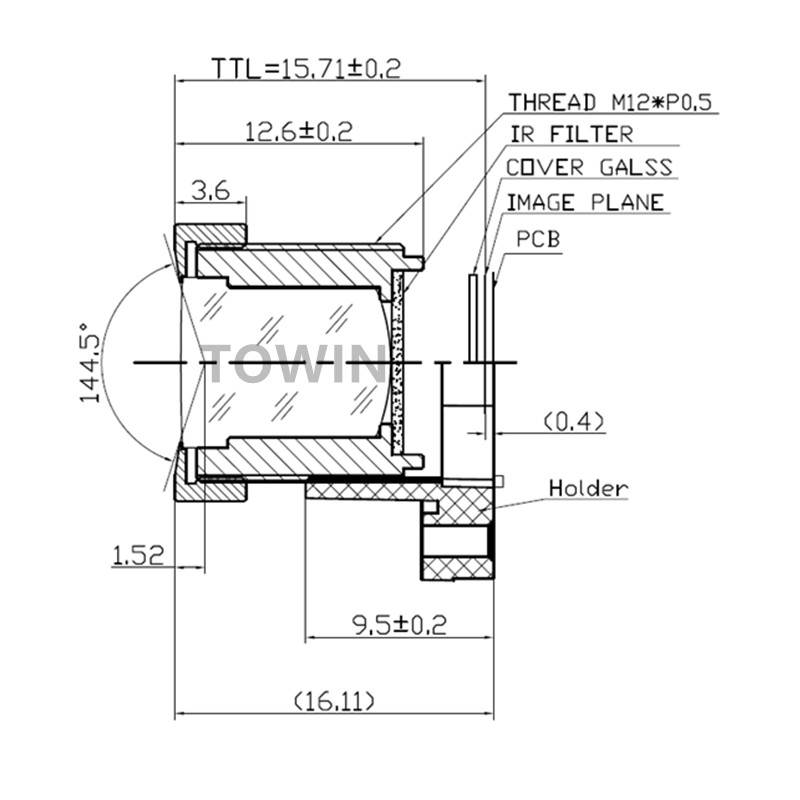

| T.T.L. | 15.71mm |
| CONSTRUCTION | 6G+IRF |
CCL127032MPF 3.2mm wide angle OV2710 M12 S-mount board lens
