CCL125065MPF
CCL125035MPR
05/16/2020
CCL125040MPF
05/16/2020
CCL125065MPF

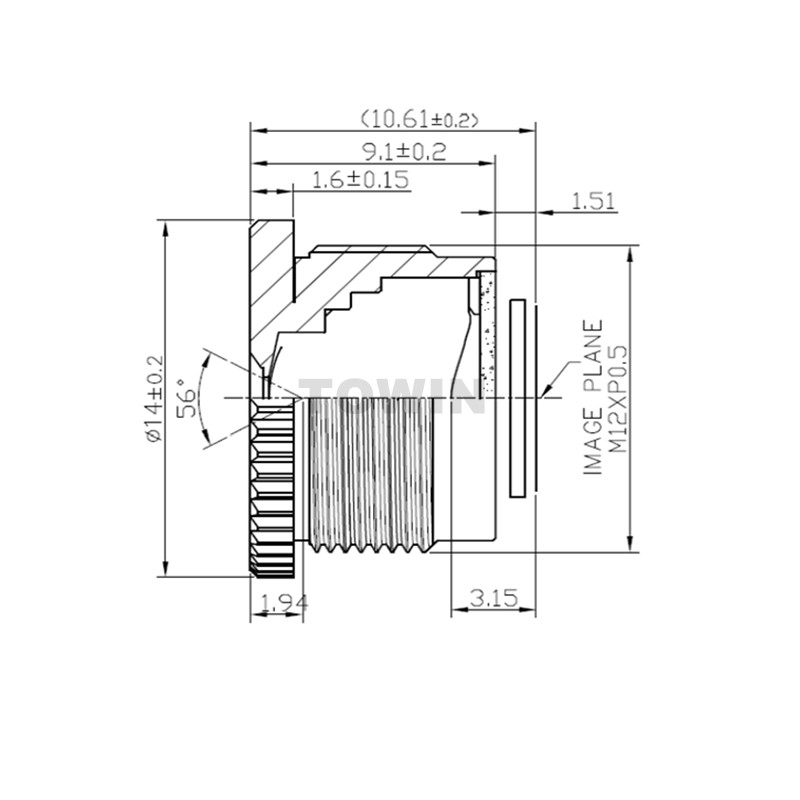

Low distortion 1/2.5″ 6.5mm 56° M12 mount lens rectilinear scanning HD 5MP short TTL
CCL125065MPF Low distortion 1/2.5″ 6.5mm 56° M12 mount lens rectilinear scanning HD 5MP short TTL
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 6.5mm |
| D.F.O.V. | 56° |
| RESOLUTION | 5 MP |
| OPTICAL DISTORTION | <-0.1% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.B.F.L. | 1.51mm |
| M.O.D. | 0.1m |
| T.T.L. | 10.61mm |
| DIMENSION | Φ14x9mm |
| LENS COMPOMEMT | 2G2P+IR cut |
CCL125065MPF Low distortion 6.5mm 56° M12 mount lens rectilinear scanning HD 5MP short TTL
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| FEATURE | |
| MARK |
