CCL12088MP

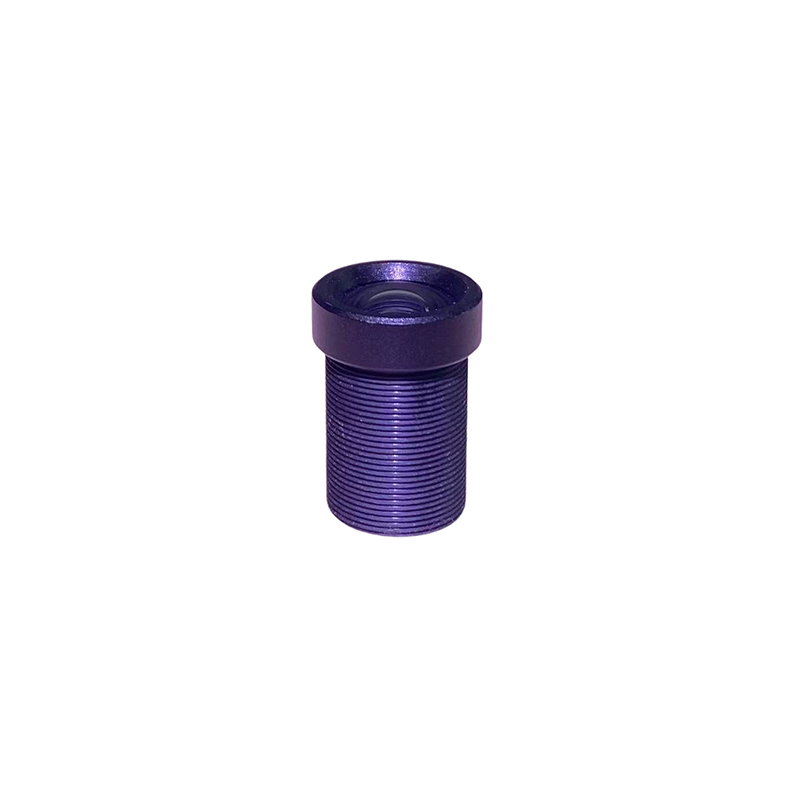

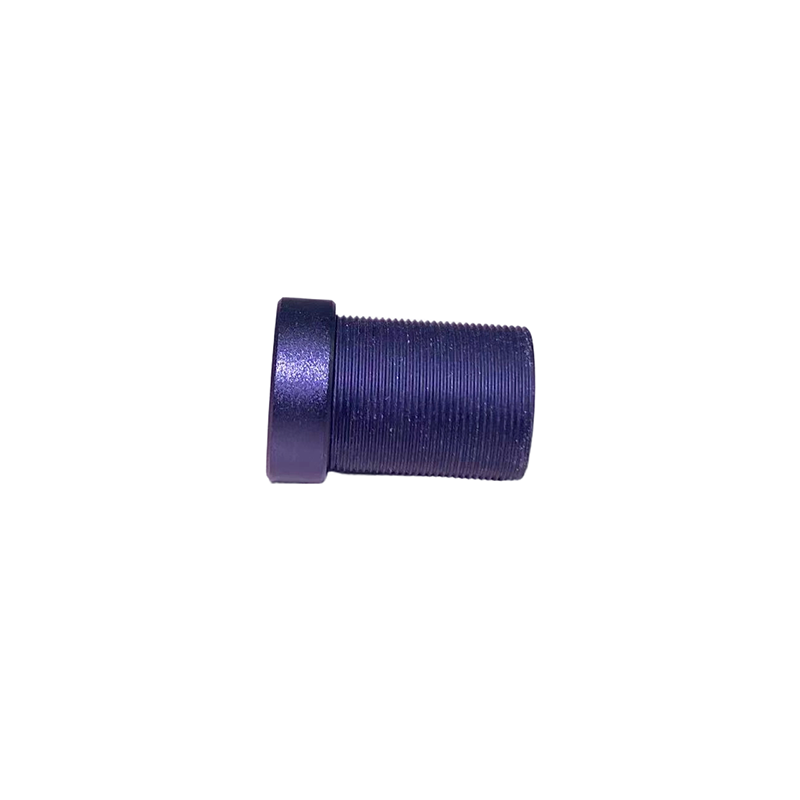

Low distortion industrial M12 S-mount board lens 1/2″ 8.8mm HD 3MP rectilinear scanning
CCL12088MP Low distortion industrial M12 S-mount board lens 1/2″ 8.8mm HD 3MP rectilinear scanning
| IMAGE FORMAT | 1/2″ |
| FOCAL LENGTH | 8.8mm |
| F.O.V. | 50°(D) |
| 40°(H) | |
| 31°(V) | |
| RESOLUTION | 3 MP |
| DISTORTION | <0.29% |
| APERTURE | F2.0 |
| MOUNT(mm) | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 7.4mm |
| T.T.L. | 25.20mm |

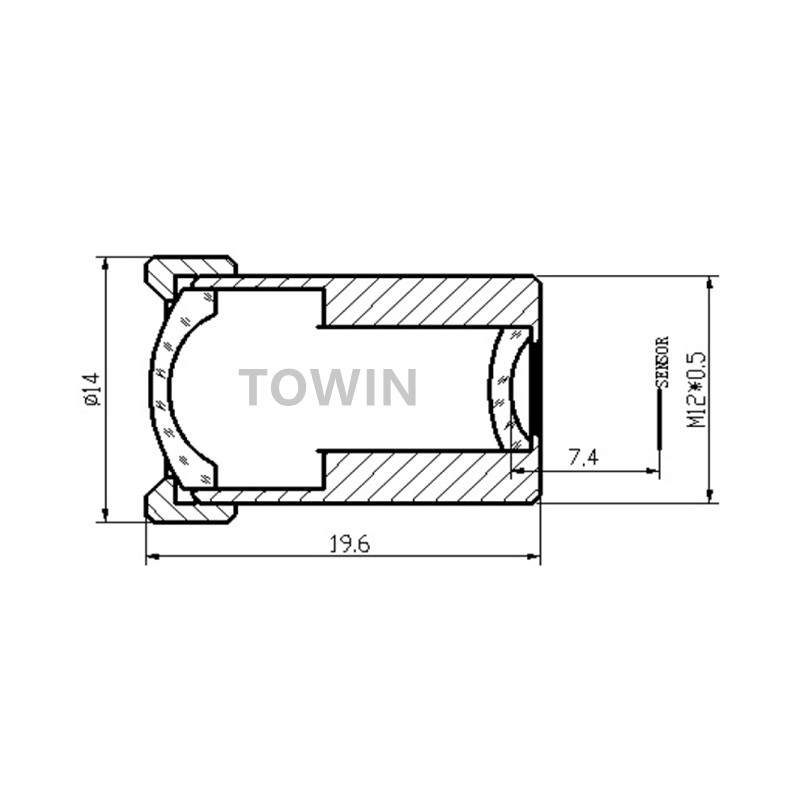

| DIMENSION | Φ14×19.6mm |
| LENS COMPOMEMT | 6G |
CCL12088MP Low distortion industrial M12 S-mount board lens 8.8mm HD 3MP rectilinear scanning
