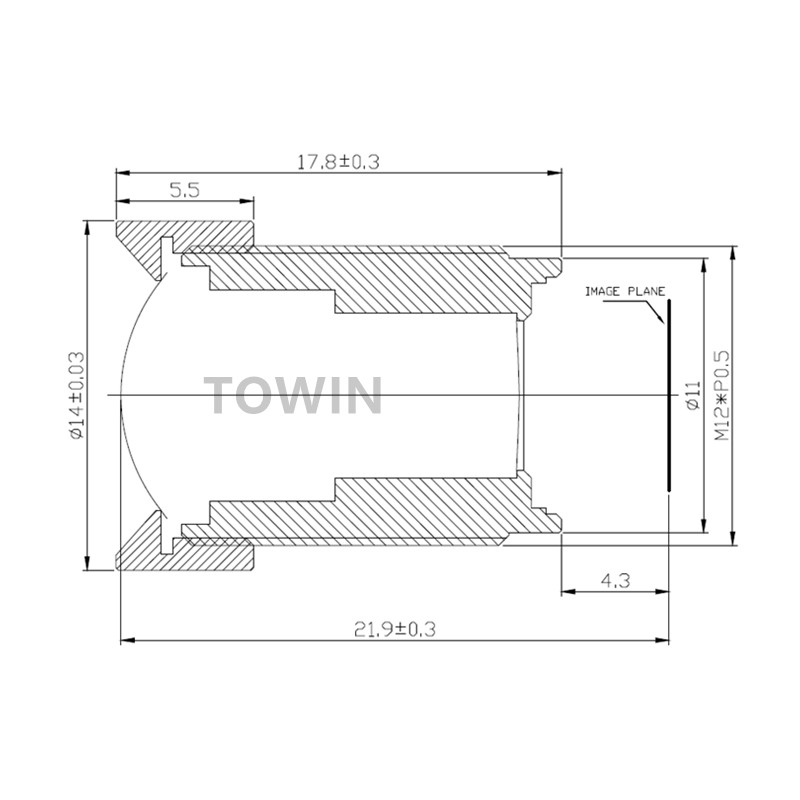

Low distortion wide angle 4.1mm 84° M12 mount lens 1/1.8″ F4.0 HD rectilinear scanning
CCL118041MPF Low distortion wide angle 4.1mm 84° M12 mount lens 1/1.8″ F4.0 HD rectilinear scanning
| IMAGE FORMAT | 1/1.8″ |
| FOCAL LENGTH | 4.1mm |
| F.O.V. | 96°(D) |
| 84°(H) | |
| 67°(V) | |
| RESOLUTION | 6 MP |
| DISTORTION | <-0.4% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 22.1mm |
| DIMENSION | Φ14×17.2mm |
| LENS COMPOMEMT | 3G2P+IR cut |
CCL118041MPF Low distortion wide angle 4.1mm 84° M12 mount lens F4.0 HD rectilinear scanning
