Introduction: Core Logic for Choosing a CCTV Lenses

When it comes to CCTV Lenses, many people immediately think of core requirements such as “no blind spots, clear image, night vision, and dustproof”—after all, the essence of surveillance is all-around protection and 24/7 availability. Whether it’s home, shop, or outdoor surveillance, a reliable lens is needed that can cover every corner, capture details without blurring, accurately identify objects in the dark, and operate stably in harsh environments.

However, the CCTV lens market is flooded with products of varying quality. How can you avoid parameter traps and choose a truly practical, high-performance model? Today, we’ve tested and selected 5 CCTV lenses worth buying, breaking them down step-by-step from image resolution, panoramic view, night vision capabilities to dustproof and waterproof ratings, helping you avoid pitfalls and easily choose the right CCTV lens.

M12 4mm HD CCTV lens

How to Choose a CCTV Lens – From Resolution to Viewing Angle

• 1. Resolution: Prioritize 1080P and above high-definition specifications. 4K image quality is suitable for scenarios requiring high detail (such as shop cash registers).
• 2. Viewing Angle Coverage: A true panoramic lens should achieve a 360° horizontal viewing angle, avoiding “pseudo-panoramic” lenses (actual viewing angle <180°).
• 3. Night Vision Capability: Supports infrared night vision or starlight night vision. A night vision distance of ≥10 meters is more practical. Image clarity is crucial in low-light environments.

Recommended CCTV Lenses: 5 High-Performance TOWIN Options to Precisely Cover Your Security Needs

Next, we will break down these 5 carefully selected TOWIN CCTV lenses in detail, analyzing them from four dimensions: resolution, panoramic viewing angle, night vision capability, and protection level, helping you accurately avoid pitfalls and find the right surveillance tool for your scenario.

1. Panoramic Coverage with No Blind Spots: CCL1320117MP 220° Fisheye CCTV Lens

• Core Positioning: Ultra-wide panoramic coverage, single lens handles all-area monitoring
• Core Parameters: 1.17mm focal length, 220° (horizontal/vertical/diagonal) full-scene coverage, 8MP high-definition resolution, F2.2 large aperture, IR infrared correction technology, M12×0.5 standard interface, minimum focusing distance 0.1m
• Core Advantages: A true “blind spot ceiling,” the 220° ultra-wide fisheye field of view allows a single lens to cover entire rooms, shop lobbies, and other large spaces, eliminating the need for multiple cameras and completely eliminating blind spots; the 8MP sensor with an F2.2 large aperture captures details clearly and without noise, making key information such as text and faces readily visible; IR infrared correction technology ensures consistent imaging day and night, eliminating infrared whitening at night and accurately identifying targets even in dark environments.
• Suitable scenarios: Suitable for scenarios requiring wide-area, blind-spot-free coverage, such as family living rooms, shop lobbies, office building lobbies, and warehouses.

IR corrected 1.17mm M12 Fisheye CCTV lens

2. Ultra-HD Detail King: S13012002528F 48MP Low-Distortion CCTV Lens

• Core Positioning: Ultra-HD + Low Distortion, Precisely Capturing Key Details
• Core Parameters: 13.98mm focal length (±5%), 31.5° diagonal field of view, 48MP ultra-high resolution, TV distortion <-1%, F2.8 large aperture, built-in IR filter, M12×0.5 interface, compatible with 1/1.8″ and 1/2″ sensors
• Core Advantages: 48MP resolution reaches professional-grade HD standards, clearly identifying key information such as receipt amounts, facial features, and license plate numbers even when zoomed in; ultra-low distortion rate of <-1% avoids image stretching and distortion, resulting in more accurate data restoration; built-in IR filter ensures stable infrared imaging at night, and the F2.8 large aperture maintains bright and clear images even in low-light environments.
• Suitable scenarios: Convenience store checkout counters, office valuables areas, residential community entrances and exits, warehouse shelving areas, and other scenarios requiring precise and detailed recognition.

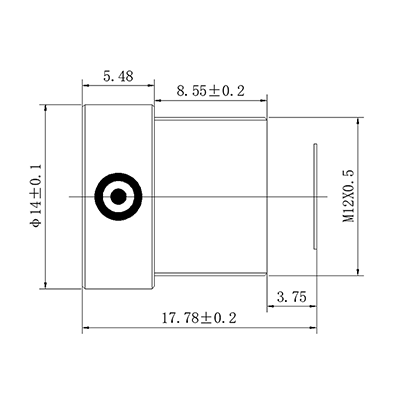

Low-distortion M12-mount 48-Megapixel lenses

3. IR Correction Night Vision: S01812811124–IMX415 8MP Day&Night Lens

• Core Positioning: Wide field of view + low distortion, balancing coverage and image quality
• Core Parameters: 1.8mm wide-angle focal length, 111° horizontal field of view, 8MP, distortion rate <-2.9%, F2.4 large aperture, IR correction, M12×0.5 interface, minimum focusing distance 0.2m
• Core Advantages: The 1.8mm wide-angle lens combined with a 111° horizontal field of view can cover narrow spaces such as corridors and stairwells while avoiding the severe distortion of fisheye lenses, resulting in higher image fidelity; 8MP meets the high-definition needs of daily surveillance; the F2.4 large aperture allows sufficient light intake for clear nighttime imaging; IR correction technology ensures seamless switching between day and night surveillance without the need for additional parameter adjustments.
• Suitable for: Residential building corridors, shop walkways, hotel passageways, underground parking garages, and other scenarios requiring a wide field of view and high image fidelity.

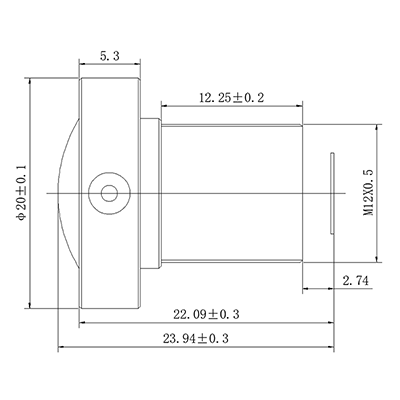

F2.4 IR correction lens

4. Dedicated for Extreme Outdoor Environments: S01014019520F IP69K Waterproof Fisheye Lens

• Core Features: Waterproof and dustproof + wide temperature adaptability, stable all-weather outdoor monitoring
• Core Parameters: 1.0mm focal length, 195° horizontal field of view, 1.3MP (1.3MP) resolution, F2.0 aperture, IP69K waterproof and dustproof rating, operating temperature -40°C to +85°C, built-in IR filter, M12×0.5 interface
• Core Advantages: IP69K top-level waterproof and dustproof rating, withstands high-pressure washing, heavy rain, sandstorms, and other harsh environments, suitable for outdoor open-air scenarios; -40°C to +85°C wide temperature range design ensures stable operation in both frigid winters and scorching summers; 195° fisheye field of view provides wide outdoor coverage; F2.0 aperture + IR filter ensures clear images even in low-light outdoor environments at night.
• Suitable Scenarios: Monitoring needs in extreme environments such as construction sites, park perimeter walls, open-air parking lots, and outdoor areas of farms.

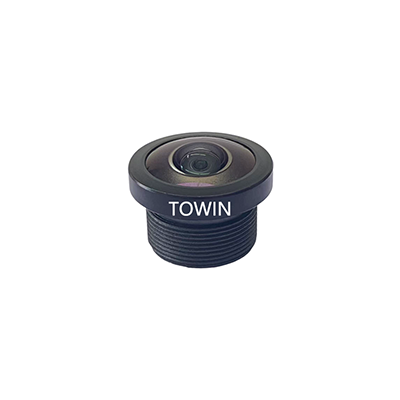

waterproof IP69K M12 Fisheye CCTV lens

5. Preferred Choice for Concealed Monitoring: CCL127028PMP 3MP Pinhole Hidden Lens

• Core Positioning: Concealed installation + wide-angle coverage, discreet and unobtrusive protection
• Core Parameters: 2.8mm focal length, 108° horizontal field of view, 3MP, F2.4 large aperture, IR compatible, M12×0.5 interface, manual focus, pinhole concealed design
• Core Advantages: The compact pinhole design allows for concealed installation in ceilings, decorative paintings, or inside equipment, preserving the aesthetics of the space and making it suitable for scenarios requiring discreet monitoring; the 108° wide-angle field of view + 3MP high-definition resolution ensures performance without compromising concealment, capturing crucial details; the F2.4 large aperture combined with IR compatible design provides clear nighttime concealed monitoring with no obvious infrared glare.
• Suitable scenarios: Confidential rooms, shop security, home security, office area security monitoring, and other scenarios requiring concealed installation.

4.2mm 1/3″ HD M12 mount Pinhole lens

5 Lens Core Parameters & Scene Overview

FAQs

Why is the resolution of a CCTV lens important?

Resolution directly affects the clarity of the surveillance footage. High-resolution lenses (such as 1080P and above) can capture more details, suitable for scenes requiring precise identification, such as faces, license plates, etc. Especially in shops and important areas, choosing ultra-high resolution lenses such as 48 megapixels ensures that key details remain clearly visible even after magnification.

What is a panoramic CCTV lens, and what are its advantages?

Panoramic CCTV lenses typically feature a wide-angle or fisheye design, covering a larger field of view. A horizontal viewing angle of 220° or higher enables monitoring without blind spots, reducing blind areas. This is especially important for large spaces (such as shop lobbies or warehouses), avoiding the complexity and cost of stitching together multiple cameras.

How does night vision affect surveillance performance?

Night vision allows surveillance equipment to maintain good image quality in low-light environments. Lenses supporting infrared night vision or starlight night vision can capture clear images in complete darkness. Choosing a lens with a night vision range greater than 10 meters provides more reliable monitoring at night, ensuring security without time constraints.

What special features do outdoor CCTV lenses need?

Outdoor CCTV lenses need to be waterproof, dustproof, and have a wide operating temperature range. An IP69K protection rating ensures the device operates normally in harsh weather conditions (such as heavy rain and sandstorms). Simultaneously, the lens must be able to withstand extreme temperature changes (e.g., -40°C to +85°C) to guarantee stable monitoring around the clock.

Low light F1.6 HD M12 CCTV lens

Conclusion

When choosing a CCTV lens, considering factors such as resolution, viewing angle, night vision capabilities, protection rating, and concealment is crucial. These characteristics not only affect the clarity and coverage of the surveillance footage, but also determine the applicability and reliability of the equipment in different environments. By comprehensively evaluating these key factors, users can select the most suitable surveillance camera based on their specific needs to ensure the effectiveness and stability of their security monitoring system.
