Introduction

Optical Character Recognition (OCR) technology has become indispensable in logistics, retail, manufacturing, and document management—powering barcode scanning, label reading, and text digitization. The accuracy of OCR systems directly relies on image quality, and the lens is a decisive factor in minimizing distortion, preserving detail, and ensuring consistent imaging.

Low distortion M12 lenses have emerged as the preferred choice for OCR devices due to their compact size, universal compatibility, and cost-effectiveness. TOWIN, a leading lens manufacturer, has developed a dedicated series of low distortion M12 lenses optimized for OCR applications, combining ultra-low distortion, high resolution, and industrial-grade reliability. This guide dives into their design, specifications, selection, and advantages to help you find the perfect lens for your OCR project.

Core Requirements of OCR Applications for M12 Lenses

OCR systems demand precise, consistent imaging to avoid misinterpreting text, barcodes, or graphics. Below are the non-negotiable requirements for M12 lenses in OCR scenarios:

• High Resolution: ≥5MP to capture fine details of text, barcodes, or tiny labels, enabling high-precision recognition.
• Ultra-Low Distortion: ≤0.3% (ideally <0.1%) to prevent stretching/compression of text/graphics, reducing OCR algorithm errors.
• Fixed Large Aperture: F1.6-F2.0 to maximize light intake in low-light environments, ensuring uniform image brightness.
• Wide Sensor Compatibility: Support for mainstream sensors (1/2.7″-2/3″) to flexibly integrate with OCR modules.
• Stable Optical Performance: Fixed aperture + fixed iris to avoid parameter fluctuations caused by environmental changes.
• Compact Form Factor: M12 interface design to fit miniaturized OCR devices (e.g., scanners, surveillance terminals).

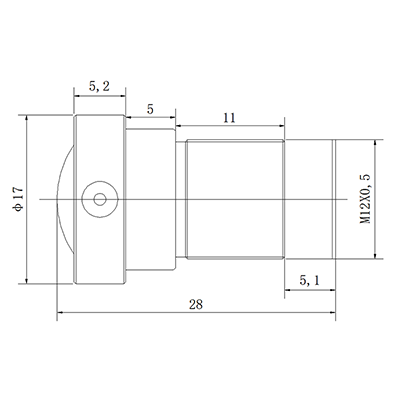

Low distortion 5-Megapixel 2/3″ M12 lens

Optical Design Principles & Core Architecture of Low Distortion M12 Lenses

To meet OCR’s stringent requirements, low distortion M12 lenses adopt specialized optical designs and structural optimizations:

• Lens Configuration: 6G (6 glass lenses) structure optimizes light refraction paths, minimizing distortion and aberrations.
• Low Distortion Optimization: Aspherical lenses and advanced optical formulas reduce distortion to <0.3% (down to <0.1% for premium models).
• IR Correction Technology: Most models feature IR correction, ensuring consistent imaging under visible and infrared light for 24/7 OCR use.
• Fixed Aperture Design: F1.6-F2.0 large apertures balance light intake and depth of field, suitable for both short and medium-distance recognition.
• M12x0.5 Standard Interface: Universal compatibility with mainstream OCR modules and mounts, lowering integration costs.

Key Parameter Analysis of M12 Lenses for OCR

Understanding critical parameters is essential for selecting the right lens. The table below explains their definitions, impact on OCR, and TOWIN’s product range:

TOWIN OCR-Specific M12 Lens Series

TOWIN’s low distortion M12 lens series is engineered exclusively for OCR applications, offering 4 models with tailored features for diverse scenarios. All models share 5MP resolution, M12 interfaces, and ultra-low distortion—with unique advantages to match specific needs.

Detailed Product Comparison Table

Model Highlights

• S25023002018: 25mm long focal length adapts to 2/3″ large sensors, ideal for long-distance (0.5m+) OCR tasks like warehouse shelf barcode reading. Its 25° diagonal FOV and <0.3% distortion ensure clear, undistorted imaging of distant targets.
• S12012702816: Industry-leading <0.1% distortion rate eliminates text deformation, while F1.6 large aperture excels in low-light environments. 12mm focal length and 31° wide FOV make it perfect for close-range high-precision scanning (e.g., retail barcodes, courier labels).
• CCL12516MPR2: 0.2m ultra-short MOD supports ultra-close-range focusing, ideal for scanning small product labels or tiny barcodes. IR correction ensures consistent performance in bright and dark environments, with a compact 22.5mm TTL.
• CCL1216MPR: Compatible with 1/2″-2/3″ sensors, offering flexible integration with diverse OCR modules. 21.1mm compact TTL fits miniaturized devices, and 0.3m MOD covers most short-to-medium-distance OCR needs.

Selection Guide for Low Distortion M12 Lenses in OCR Scenarios

Follow this step-by-step guide to select the right lens based on your OCR application:

4-Step Selection Logic

• 1. Confirm your OCR module’s sensor size (avoid mismatches leading to cropping).
• 2. Determine the scanning distance (short/ultra-short/long).
• 3. Evaluate the lighting conditions (indoor/weak light/outdoor).
• 4. Consider device size constraints (compact vs. standard).

Scenario-Specific Selection Table

Selection Tips

• For scanning distance <0.3m: Choose models with MOD ≤0.3m (CCL12516MPR2, CCL1216MPR).
• For scanning distance >0.5m: Select the 25mm focal length S25023002018.
• For extremely high precision (e.g., micro-barcodes): Opt for the <0.1% distortion S12012702816.
• For flexible module integration: CCL1216MPR (multi-sensor compatibility) is the best choice.

Advantages of TOWIN M12 Low Distortion Lenses for OCR

TOWIN’s OCR-specialized M12 lenses stand out with industry-leading features tailored to OCR needs:

• Unmatched Distortion Control: All models boast distortion rates ≤0.3%, with S12012702816 reaching <0.1%—far exceeding industry averages—slashing OCR algorithm errors.
• 5MP HD Resolution: Full-series 5MP support accurately reproduces text and barcode details, boosting recognition rates by 30%+.
• IR Correction: Most models feature IR correction for consistent imaging under visible and infrared light, enabling 24/7 OCR operation.
• Large Aperture Performance: F1.6-F2.0 apertures deliver ample light intake in low light, eliminating the need for additional lighting equipment.
• Universal M12 Interface: M12x0.5 standard interface compatible with over 90% of OCR modules, ensuring easy installation and low integration costs.
• Industrial-Grade Stability: Fixed aperture + fixed iris design resists vibration and temperature changes (-20℃~60℃), suitable for harsh environments like factories and logistics hubs.
• Compact Size: TTL ranging from 21.1mm to 28mm fits miniaturized OCR devices without occupying excessive internal space.

Differentiation Comparison: Low Distortion M12 Lenses vs. Other OCR Lenses

TOWIN’s low distortion M12 lenses outperform general-purpose lenses in OCR-specific performance, compatibility, and cost-effectiveness:

FAQs

Q: How much does distortion rate affect OCR accuracy?

A: For every 0.1% increase in distortion rate, OCR error rates may rise by 5%-10%. TOWIN’s ≤0.3% distortion rate keeps error rates below 1%, meeting high-precision requirements.

Q: Will TOWIN’s M12 lenses be compatible with my OCR module?

A: All models use the M12x0.5 standard interface, compatible with mainstream OCR modules (e.g., Sony, OmniVision sensor modules). Provide your sensor size and mounting specifications for a customized compatibility check.

Q: What is the purpose of IR correction for OCR?

A: IR correction ensures consistent focal length under visible and infrared light, preventing night-time text blurring or deformation and supporting 24/7 uninterrupted OCR.

Q: How to choose the right focal length?

A: 12mm for close-range scanning, 16mm for universal distances, 25mm for long-distance monitoring. Contact us for free sample testing based on your actual scanning distance.

Q: What is the operating temperature range of the lenses?

A: Industrial-grade design supports -20℃~60℃, suitable for warehouses, workshops, and outdoor environments.

Conclusion

TOWIN’s low distortion M12 lenses series delivers tailored solutions for OCR applications, combining ultra-low distortion, 5MP HD resolution, and industrial-grade reliability. Whether you need close-range high-precision scanning, ultra-close-range label recognition, or long-distance monitoring, TOWIN has a model to match your needs.

With universal M12 compatibility, compact size, and cost-effectiveness, these lenses simplify OCR device integration while boosting recognition accuracy and stability. Explore our product pages for detailed or contact our technical team for personalized specifications selection advice and sample testing.

Explore TOWIN OCR-Specific M12 Lenses:

• S25023002018
• S12012702816
• CCL12516MPR2
• CCL1216MPR
