When it comes to industrial cameras, security systems, or high-precision equipment, the type of lens used can significantly impact the performance of the system. Two popular types of lenses are the C-Mount and CS-Mount lenses. Understanding the difference between C-Mount and CS-Mount lenses is essential when selecting the right lens for your camera setup.

What is a C-Mount Lenses?

A C-Mount lenses is a type of lens commonly used in industrial cameras, CCTV systems, and microscopy. The “C” in C-Mount refers to the standard screw thread (1-inch diameter and 32 threads per inch) that is used to attach the lens to the camera body. These lenses work with larger sensor sizes and typically serve in high-quality video and imaging systems.

The C-Mount lens features a flange back distance of 17.526mm, making it relatively long compared to other lens mounts.This feature makes it ideal for cameras with larger sensors, as it allows for more flexibility in focus and image quality.

low-distortion C-mount lens

What is a CS-Mount Lenses?

A CS-Mount lenses is a variation of the C-Mount, designed with a shorter flange back distance of 12.5mm. This reduction in distance allows for the lens to be placed closer to the camera sensor. CS-Mount lenses are typically used in smaller, more compact cameras and are widely adopted in applications such as surveillance and security systems.

Despite their shorter flange back distance, CS-Mount lenses can be used with C-Mount cameras by using an adapter. However, because the flange back distance is shorter, there may be a slight difference in the focus quality when using a CS-Mount lens on a C-Mount camera.

CS mount wide angle lens IR corrected

Key Differences Between C-Mount and CS-Mount Lenses

The difference between C-Mount and CS-Mount lenses lies primarily in their flange back distance and their corresponding sensor size compatibility. Here are some key differences:

1. Flange Back Distance:

• C-Mount lenses have a flange back distance of 17.526mm, making them suitable for cameras with larger sensors.
• CS-Mount lenses have a flange back distance of 12.5mm, allowing them to be used with smaller sensors.

2. Sensor Compatibility:

• C-Mount lenses are designed to support cameras with larger sensors, offering more flexibility in focus.
• CS-Mount lenses are ideal for cameras with smaller sensors and can provide better performance in systems where space is limited.

3. Lens Size and Weight:

• C-Mount lenses tend to be larger and heavier, as they are intended for more industrial-grade systems and offer higher image quality.
• CS-Mount lenses are smaller and lighter, making them ideal for compact systems such as security cameras.

4. Cost:

• C-Mount lenses are generally more expensive due to their more advanced construction and superior image quality.
• CS-Mount lenses are typically more affordable, as they are designed for simpler, smaller camera systems.

5. Image Quality and Performance:

• C-Mount lenses provide superior image quality and are often used in systems requiring high resolution and precision.
• CS-Mount lenses, while still providing good image quality, may not perform as well in high-precision applications compared to C-Mount lenses.

Why Does the Difference Between C-Mount and CS-Mount Lenses Matter?

Understanding the difference between C-Mount and CS-Mount lenses is crucial for selecting the right lens based on your system’s requirements. If you are working with high-resolution cameras, industrial machinery, or systems that demand precise imaging, a C-Mount lens is the better choice. On the other hand, if you need a more compact and cost-effective solution for standard surveillance systems, a CS-Mount lens may be more appropriate.

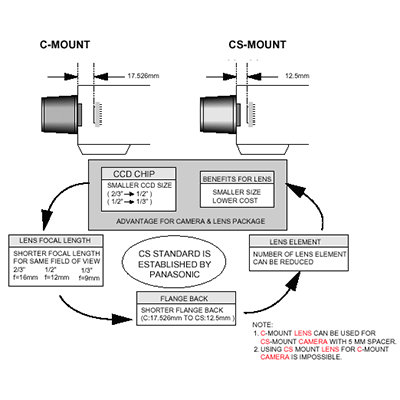

C-Mount vs CS-Mount Lens

When Should You Use C-Mount vs CS-Mount Lenses?

C-Mount Lenses are best suited for:

• High-end industrial cameras
• Scientific or research applications (e.g., microscopy)
• CCTV systems requiring high image clarity and precision
• Cameras with larger sensors and high-resolution demands

CS-Mount Lenses are ideal for:

• Compact security cameras
• Surveillance systems where space is a constraint
• Cost-effective camera setups
• Systems that do not require extremely high resolution

Can You Use a CS-Mount Lens on a C-Mount Camera?

Yes, it is possible to use a CS-Mount lens on a C-Mount camera, but you will need an adapter. However, due to the difference in flange back distances, using a CS-Mount lens may result in a slight degradation in image quality, as the lens may not focus as well with the camera’s sensor. In some cases, this could lead to blurred or distorted images, especially when using cameras with larger sensors.

Which One is Better for Your Application?

The choice between C-Mount and CS-Mount lenses largely depends on your specific needs:

• If you need a high-resolution, versatile lens for larger sensors and precise imaging, a C-Mount lens is likely the best choice.
• If you are working with smaller, more compact systems or need a budget-friendly option, a CS-Mount lens may be a better fit.

C-Mount VS CS-Mount Lens

FAQs

What is the main difference between C-Mount and CS-Mount lenses?

The main difference between C-Mount and CS-Mount lenses is the flange back distance. C-Mount lenses have a flange back distance of 17.526mm, while CS-Mount lenses have a shorter flange back distance of 12.5mm, making them more suitable for smaller sensors.

Can a CS-Mount lens be used with a C-Mount camera?

Yes, a CS-Mount lens can be used with a C-Mount camera, but you will need an adapter to adjust the flange back distance. However, there may be some image quality degradation due to the shorter flange back of the CS-Mount lens.

Which lens provides better image quality: C-Mount or CS-Mount?

C-Mount lenses generally provide better image quality because they are designed for larger sensors and higher resolution. They typically find use in applications that require high precision and clarity.

Are CS-Mount lenses cheaper than C-Mount lenses?

Yes, CS-Mount lenses are typically more affordable than C-Mount lenses due to their simpler design and use in smaller, less demanding systems.

Conclusion

When choosing between C-Mount and CS-Mount lenses, it’s essential to consider the specific requirements of your camera system. The difference between C-Mount and CS-Mount lenses lies in their flange back distances, sensor compatibility, and image quality. Whether you need a high-end industrial lens or a cost-effective surveillance solution, understanding these differences will help you select the best lens for your needs.
