Driving blind spots are a universal safety hazard for all motorists. Every close call on the road carries the risk of collision caused by unseen hazards in these blind zones. These invisible areas significantly elevate driving risks, threatening the safety of drivers, passengers, and all road users. As the automotive industry relentlessly pursues safety and intelligence, eliminating driving blind spots has become a top priority. TOWIN Automotive Lens, the ultimate blind spot terminator, is engineered to redefine the boundaries of driving safety.

According to industry statistics, 60% of lane-changing collisions globally stem from C-pillar blind spots, while 25% of nighttime accidents are linked to poor visibility. TOWIN’s cutting-edge optical solutions directly address these critical pain points, transforming unavoidable blind spots into predictable, controllable safety zones.

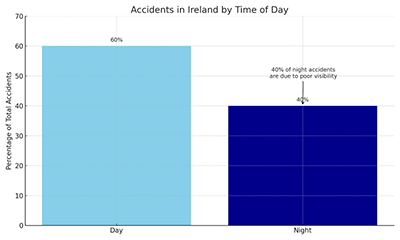

Accidents in Ireland by Time of Day

5 High-Risk Blind Spot Scenarios Every Driver Faces

1. Static Structural Blind Spots (Caused by Vehicle Design)

• A-pillar Blind Spot: Blocks pedestrians or non-motorized vehicles when turning (covers approximately 0.5-1 meter) – effectively eliminated by TOWIN’s ultra-wide angle automotive lenses.
• C-pillar Blind Spot: Vehicles suddenly appearing outside rearview mirror range (high-risk area for lane-changing accidents) – targeted by TOWIN’s distortion-free imaging technology.
• Front/Rear Blind Spots: Particularly severe in SUVs and MPVs (front blind spots can extend 2-3 meters) – fully covered by TOWIN’s high-resolution waterproof automotive lenses.

2. Dynamic Environmental Blind Spots (Triggered by Road Condition Changes)

• Backlight Blind Spot: Glare on dashboards or rearview mirrors causing vision loss – solved by TOWIN’s full-spectrum light transmission technology.
• Rain/Snow Blind Spot: Water or snow outside wiper coverage blocking visibility – addressed by TOWIN’s hydrophobic anti-fouling lens coating.
• Night Blind Spot: Difficulty identifying targets due to oncoming high beams or unlit roads – overcome by TOWIN’s night vision automotive lens with infrared correction.

3. Special Scenario Blind Spots (Activated by Extreme Road Conditions)

• Tunnel Blind Spot: Temporary blindness from sudden light changes when entering/exiting tunnels – mitigated by TOWIN’s rapid light adaptation technology.
• Water Wading Blind Spot: Potholes or obstacles concealed by standing water – detected clearly via TOWIN’s high-stability waterproof lenses.
• Mountain Road Blind Spot: Cliff edges or falling rock risk areas outside curves – monitored effectively by TOWIN’s anti-vibration automotive lenses.

4. Behavioral Habit Blind Spots (Caused by Driver Operations)

• Improper Rearview Mirror Adjustment: Failure to cover critical side/rear areas – complemented by TOWIN’s wide-angle coverage.
• Incorrect Seat Position: Vision range changes due to height differences – accommodated by TOWIN’s flexible installation design.
• Distracted Driving: Loss of real-time road awareness when looking at phones – supported by TOWIN’s clear, low-distortion imaging for quick hazard recognition.

5. External Interference Blind Spots (Caused by Third-Party Factors)

• Large Vehicle Obstruction: Frontal vision blocked by trucks or buses – enhanced by TOWIN’s high-resolution long-distance detection.
• Sudden Child Emergence: Common emergency risk in residential or school zones – captured instantly by TOWIN’s fast-response optical system.
• Pet Dash: Unleashed pets rushing from green belts – detected early via TOWIN’s comprehensive coverage.

How to Deal with Blind Spots

3 Core Technologies of TOWIN Automotive Lens: Breaking Through Blind Spot Barriers

1. Ultra HD Full-Spectrum Light Transmission Technology

Crafted with special optical glass and multi-layer anti-reflective coating, TOWIN’s lenses effectively filter strong light and glare. Whether facing direct midday sun or oncoming high beams, the lenses eliminate mirror whitening and glare, ensuring clear visibility of road details. The hydrophobic anti-fouling coating allows rainwater to slide off instantly, maintaining lens clarity even in heavy downpours without fogging or water buildup. Optimized low-light sensitivity combined with infrared correction technology delivers sharp images of vehicle outlines and distances even on unlit roads, completely solving the “night blindness” dilemma.

Key Benefit: Perfectly resolves dynamic environmental blind spots (backlight, rain/snow, night) and special scenario blind spots (tunnel entry/exit) caused by light interference. All lenses hold IP67 waterproof certification for reliable performance in wet conditions.

2. Ultra Wide Angle Distortion-Free Imaging Technology

With a field of view exceeding 120°, paired with precise optical correction algorithms, TOWIN’s lenses expand vision coverage while eliminating image stretching or distortion. Pedestrians, vehicles, and low-lying obstacles within 3-5 meters of the vehicle – traditional blind spot hazards – are fully visible to the driver.

Key Benefit: Accurately covers static structural blind spots (A-pillar, C-pillar, front/rear) and external interference blind spots, making hidden risks within 3-5 meters visible and eliminating the need for repeated head checks during lane changes or turns.

3. High-Stability Anti-Vibration & Anti-Shake Technology

Integrating precision mechanical design with electronic anti-shake algorithms, TOWIN’s lenses resist high-frequency vibrations across various road conditions. Even on rough mountain roads or unpaved surfaces, images remain stable and clear. With an operating temperature range of -40℃ to 85℃, the lenses perform reliably in extreme cold and scorching heat, ensuring 24/7 blind spot monitoring consistency.

Key Benefit: Confidently handles special scenario blind spots (mountain roads, unpaved surfaces) and extreme environments, maintaining uninterrupted blind spot detection under harsh conditions. All products comply with IATF 16949 automotive quality management system standards.

TOWIN Automotive Lens

“This Isn’t an Upgrade – It’s a Visual Revolution” – Experience “God’s Eye View” on Every Journey

TOWIN Flagship Automotive Lenses: Reshaping Driving Safety Standards

1. A5120020F69: 200° Ultra Wide Angle 8MP Waterproof Automotive Lens

Ultra Wide Field of View: Breaking Spatial Limitations

• Focal Length & Sensor: 1.9mm effective focal length (E.F.L.) paired with 1/2.9″ sensor, achieving a 200° horizontal field of view (H.F.O.V.)
• Comprehensive Coverage: Captures pedestrians, vehicles, and low-lying obstacles within 3-5 meters of the vehicle, directly eliminating A-pillar, C-pillar, front, and rear blind spots – especially critical for SUVs and MPVs with larger blind zones
• Core Advantage: Eliminates lane-changing and turning collision risks at the source, providing drivers with unparalleled confidence

HD Low-Distortion Imaging: Precise Detail Restoration

• Ultra High Resolution: 8MP resolution captures fine details, ensuring clear visibility of fast-moving targets for accurate road condition assessment
• Low Distortion Control: Only 19% distortion rate maintains true object shapes and positions, enabling precise distance judgment and safe driving decisions

All-Scenario Adaptability: Handling Every Challenge

• Light Condition Performance: F2.0 large aperture with multi-layer anti-reflective coating filters glare and strong light, maintaining clear vision in backlight and unlit night conditions
• Waterproof & Anti-Fouling: Fully sealed waterproof structure + hydrophobic coating prevents water accumulation and fogging during heavy rain or wading
• Compact & Versatile Design: 14mm total track length (T.T.L.) seamlessly integrates with 360° panoramic systems or single-side blind spot monitoring for sedans, SUVs, and other vehicle types

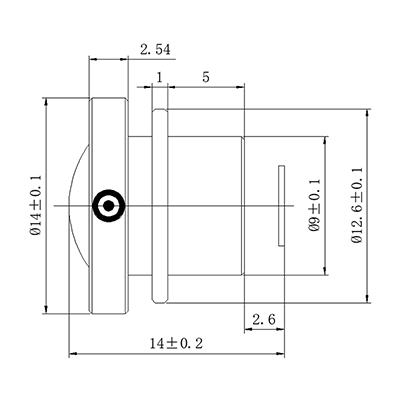

8-Megapixel M12 Fisheye CCTV IP69K waterproof Automotive Lens

2. D04412307720F940: 8MP HD Waterproof Automotive Lens for Complex Roads

Golden Angle of View: Precise Critical Area Monitoring

• Focal Length & Field of View: 4.4mm E.F.L. with 93° H.F.O.V., covering 3-5 meters of key monitoring areas while accurately restoring object distances and contours
• External Interference Handling: Rapidly detects potential hazards like large vehicle obstructions, sudden child/pet appearances, providing drivers with sufficient reaction time
• Core Advantage: Balances coverage and precision, ideal for ADAS (Advanced Driver Assistance Systems) requiring accurate distance data

HD & Stability: Reliable Data Support

• Resolution & Distortion: 8MP ultra high resolution + 14% low distortion rate clearly displays road signs and obstacle details, delivering high-precision image data for ADAS
• Anti-Vibration & Anti-Shake: Built-in high-stability anti-vibration structure + electronic anti-shake algorithm ensures stable images without blurring on rough terrain

Extreme Environment Performance: Worry-Free Operation

• Wide Temperature Range: -40℃ to 85℃ operating temperature adapts to severe cold and extreme heat, ensuring year-round reliable performance
• Low-Light Sensitivity: 1/1.73″ large sensor + F2.0 aperture enhances low-light performance, filtering high beam glare at night and adapting quickly to light changes when entering/exiting tunnels
• Universal Compatibility: 30mm T.T.L. fits mainstream on-vehicle installation scenarios, preferred for high-end passenger cars and intelligent transportation (ITS) blind spot monitoring systems

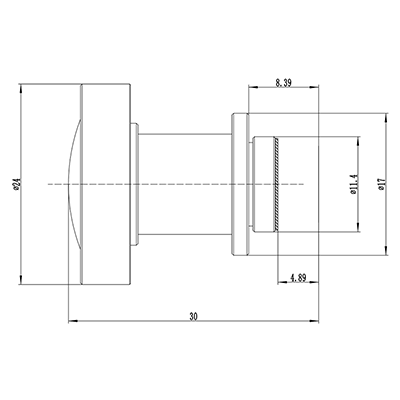

IP67 Waterproof Automotive Lens

Product Specification Comparison Table

Blind Spot Solution vs. Scenario Matching Table

FAQs

Q1: What is the best automotive lens for eliminating A-pillar blind spots?

A1: TOWIN A5120020F69 with 200° ultra wide angle is the top choice. Its 1.9mm short focal length and 1/2.9″ sensor cover 3-5 meters around the vehicle, effectively solving A-pillar and C-pillar blind spot issues for all vehicle types.

Q2: Are TOWIN automotive lenses compatible with SUVs and MPVs?

A2: Yes! Both the A5120020F69 (14mm T.T.L.) and D04412307720F940 (30mm T.T.L.) are seamlessly compatible with most sedans, SUVs, and MPVs. They adapt perfectly to 360° panoramic systems and BSD (Blind Spot Detection) systems.

Q3: What certifications do TOWIN automotive lenses hold?

A3: All TOWIN automotive lenses meet IP67 waterproof standards and IATF 16949 automotive quality management system requirements, ensuring reliability in harsh on-vehicle environments.

Q4: Can these lenses operate in extreme temperatures?

A4: Absolutely. Both models feature an operating temperature range of -40℃ to 85℃, performing reliably in severe cold winters and scorching summers without performance degradation.

Related TOWIN Automotive Lenses

• 1.5mm E.F.L. 195° H.F.O.V. Waterproof Automotive Lens – Ultimate wide-angle solution for compact vehicles
• 6mm E.F.L. 75° H.F.O.V. 12MP Automotive Lens – High-resolution option for premium ADAS applications
• Compact 10mm T.T.L. Waterproof Lens – Space-saving design for electric vehicles

Contact TOWIN for Your Custom Solution

Ready to eliminate driving blind spots and elevate safety standards? Contact TOWIN today:

Email: info@towin-elec.com

TOWIN Automotive Lens represents more than just a product – it’s a comprehensive commitment to driving safety. By integrating advanced optical technology with automotive-grade reliability, we transform unavoidable blind spots into predictable safety zones, enhancing peace of mind for every journey.

Global Presence: Trusted by over 10 major automotive manufacturers worldwide, with products deployed in intelligent transportation systems across 20+ countries

TOWIN’s professional team will provide efficient, tailored optical solutions to meet your specific requirements. Join us in redefining the future of safe driving.
