Wide Angle Lens – S05512506318D9

S05512506318D9 is Wide angle 5-Megapixel M12-mount lens with integrated -In IR Filter, fixed aperture of F1.8, waterproof IP69K rating, for surveillance applications.

5.5mm M12 5MP Wide Angle Lens

This 5.5mm M12 5MP wide angle lens provides an 83° diagonal field of view and features a specialized Visible + 940nm pass filter for imaging systems operating across visible and 940nm near-infrared wavelengths. With an F1.8 aperture, M12x0.5 mount, and IP69K protection, it is designed for automotive, outdoor, and compact multispectral imaging applications.

For additional compact optical configurations, explore the M12 Lens product range.

M12 Wide Angle Lens Core Highlights

• 83° diagonal FOV — provides broad scene coverage from a compact 5.5mm lens.
• 5MP optical capability — designed for high-resolution imaging with the OX05B1S sensor.
• F1.8 aperture — provides strong light-gathering capability for changing lighting conditions.
• Visible + 940nm pass filter — supports imaging applications requiring controlled transmission around the visible and 940nm near-infrared wavelengths.
• IP69K protection — suitable for automotive and demanding outdoor environments.
• M12x0.5 compact mount — supports integration into compact camera modules.

5.5mm M12 Wide Angle Lens Applications

Automotive Imaging

The combination of a 5.5mm focal length, 83° diagonal FOV, F1.8 aperture, and IP69K protection makes this lens suitable for vehicle-mounted camera systems operating in demanding environments.

Potential applications include:

• Automotive monitoring cameras
• Vehicle-mounted vision systems
• Parking and maneuvering cameras
• Side-view cameras
• Outdoor vehicle cameras
• Industrial vehicle imaging
• Specialized perception cameras

The relatively moderate wide-angle FOV provides broad scene coverage while avoiding the extreme viewing geometry of fisheye optics.

For automotive vision applications, see the ADAS Vision solution.

940nm Near-Infrared Imaging

One of the key features of this lens is its Visible + 940nm Pass Filter. This optical configuration is intended for applications where controlled transmission around the 940nm wavelength is required.

Potential applications include:

• 940nm illumination camera systems
• Near-infrared machine vision
• Active illumination imaging
• Smart monitoring devices
• Optical sensing systems
• Specialized automotive cameras
• Embedded NIR imaging modules

When designing a camera around a 940nm light source, the filter transmission characteristics should be evaluated together with the sensor’s quantum efficiency and the illumination wavelength.

For additional optical design information, see TOWIN’s Optical Design resources.

Outdoor and Harsh-Environment Imaging

The IP69K rating makes this lens suitable for camera systems that may be exposed to dust, water spray, high-pressure cleaning, and other demanding environmental conditions.

Potential applications include:

• Outdoor monitoring cameras
• Agricultural equipment
• Construction machinery
• Industrial vehicles
• Smart infrastructure
• Harsh-environment embedded cameras

The environmental protection makes it particularly suitable for camera modules installed outside conventional protected enclosures.

Designed for automotive, outdoor, and visible/940nm near-infrared imaging applications requiring wide scene coverage and IP69K environmental protection.

Compact Embedded Camera Systems

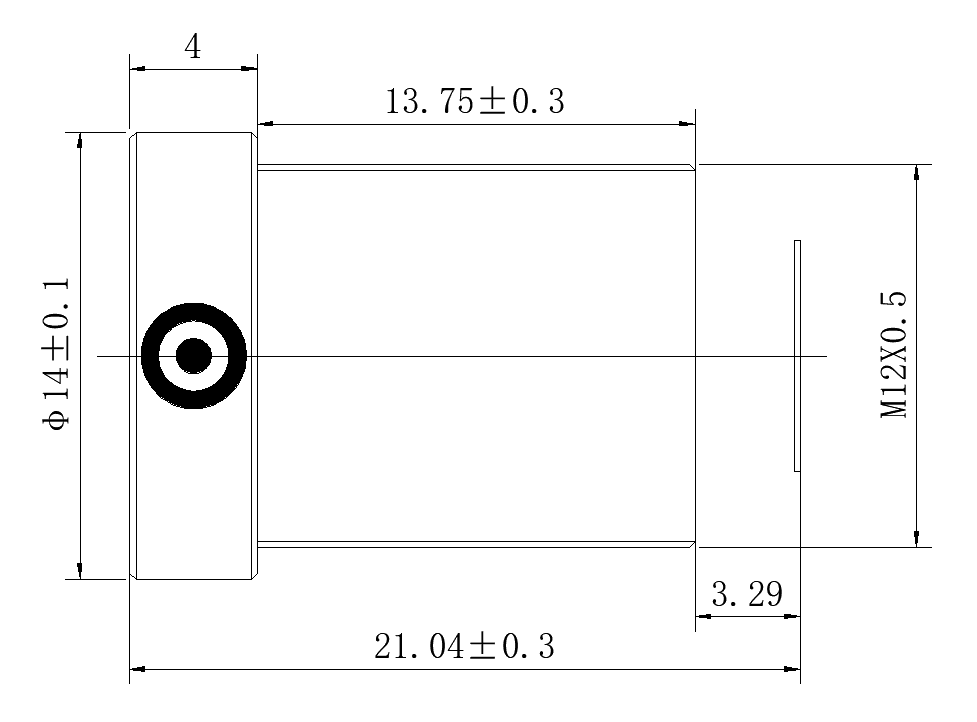

The M12x0.5 mount, 21.04mm TTL, and 0.2m MOD make this lens suitable for compact camera assemblies where installation space is limited.

Compatible systems may include:

• M12 camera modules
• 5MP embedded cameras
• Compact CMOS imaging modules
• NIR camera systems
• Robotics cameras
• Industrial vision modules
• Vehicle-mounted camera modules

When matching the lens with an image sensor, the Sensor Guide can help evaluate sensor format and optical compatibility.

Spectral Filtering Considerations

The Visible + 940nm Pass Filter differentiates this lens from conventional visible-light camera lenses. It is designed around a specific spectral transmission requirement rather than simply providing standard visible-light imaging.

For systems using 940nm LEDs or other near-infrared illumination, the camera designer should consider:

• Sensor sensitivity at 940nm
• LED illumination wavelength
• Required optical transmission
• Ambient light conditions
• Exposure settings
• Required image contrast

The filter should not be described as an IR-corrected optical design. IR correction concerns wavelength-dependent focal shift, whereas this product specification describes a spectral pass-filter configuration.

Frequently Asked Questions

Q1: What type of lens is this 5.5mm M12 lens?
A: It is a fixed-focal, wide-angle M12 lens designed for 5MP imaging and applications requiring Visible + 940nm spectral filtering.

Q2: What is the field of view of this lens?
A: With the OX05B1S sensor, the specified FOV is 83° diagonal, 63° horizontal, and 46° vertical.

Q3: What is the purpose of the 940nm pass filter?
A: The filter is designed to provide controlled spectral transmission for systems using visible and 940nm near-infrared imaging, such as active illumination and specialized NIR camera applications.

Q4: Is this lens an IR corrected lens?
A: Not based on the provided specification. The Visible + 940nm Pass Filter is a spectral filtering feature. IR correction refers to an optical design that compensates for focus shifts caused by different wavelengths.

Q5: Is this lens suitable for automotive applications?
A: Yes. Its IP69K protection, compact M12x0.5 mount, wide FOV, and F1.8 aperture make it suitable for various automotive and vehicle-mounted imaging systems.

Q6: What does IP69K protection provide?
A: IP69K provides a high level of protection against dust and powerful high-temperature water jets, supporting demanding automotive, industrial, and outdoor applications.

Q7: Is this lens suitable for 940nm LED illumination?
A: It can be considered for systems using 940nm illumination. The final performance should be evaluated together with the camera sensor’s sensitivity at 940nm and the characteristics of the illumination source.

Q8: What is the minimum object distance?
A: The specified minimum object distance is 0.2 meters, allowing relatively close-range imaging with the lens’s wide field of view.
