Wide Angle Lens – S03512010812IR

S03512010812IR is Wide-angle 1/2″ M12 lens with 150° diagonal FOV, F1.2 aperture for low light sensitivity, suitable for security surveillance.

3.5mm M12 Wide Angle Lens

This 3.5mm M12 Wide Angle lens is designed for 1/2″ megapixel imaging systems that require an exceptionally wide field of view in a compact optical package. With a 150° diagonal FOV, F1.2 aperture, and 0.1m minimum object distance, it is well suited to panoramic, surround-view, robotics, embedded vision, and close-range wide-area imaging applications.

Product Highlights at a Glance

• 150° diagonal FOV for exceptionally wide scene coverage.
• 3.5mm fixed focal length for compact Wide Angle imaging systems.
• F1.2 aperture provides strong light-gathering capability.
• 0.1m M.O.D. supports close-range panoramic and surround-view imaging.
• 1/2″ megapixel support with 0.4@160lp/mm resolution performance.

3.5mm M12 Wide Angle Lens Applications

Core Application Scenes

This 3.5mm M12 Wide Angle lens is designed for imaging systems where maximizing scene coverage is more important than maintaining a conventional rectilinear perspective. Its 150° diagonal field of view allows a single compact camera to capture a very broad area, making it suitable for panoramic observation, surround-view imaging, compact robotic perception, and embedded wide-area vision.

The 108° horizontal and 78° vertical FOV deliver ample lateral and vertical coverage. Its 0.1 m minimum object distance makes the lens especially effective when the camera sits near monitored or inspected zones. This combination can be valuable for compact robotics, indoor panoramic cameras, equipment monitoring, and small-form-factor perception modules.

The F1.2 aperture provides strong light-gathering capability for applications operating under changing illumination. Its fixed‑iris, manual‑focus and fixed‑zoom setup suits systems where technicians mechanically tune the lens during camera assembly, and the unit then runs from a stationary mounting position.

For panoramic and surround-view systems, the significant TV distortion should be considered as part of the optical design. Applications requiring a geometrically corrected output may use software-based image correction or dewarping after image capture. The Distortion Guide provides additional information for engineers evaluating distortion requirements.

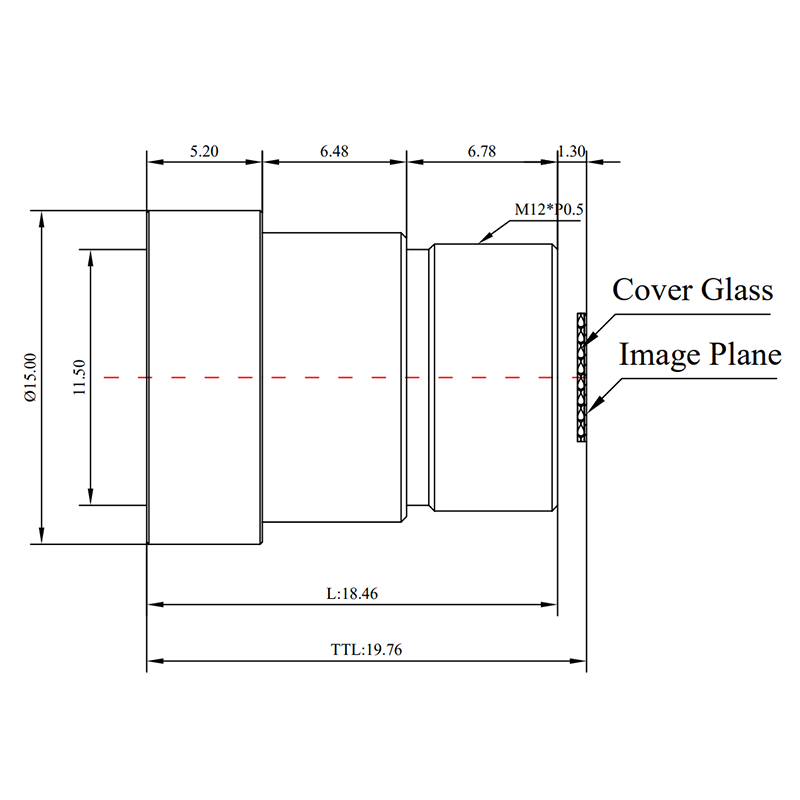

The M12 × 0.5 mount makes the lens suitable for compact camera modules and embedded vision assemblies. For engineers matching the lens to a specific sensor, the Sensor Guide can help evaluate sensor format and optical compatibility.

Compatible Device List

• Panoramic Camera Modules: The 150° diagonal FOV enables broad scene capture from a compact camera position.
• Robotics Vision Systems: Suitable for robotic platforms requiring wide environmental awareness at short working distances.
• Surround-View Camera Systems: The wide-angle optical configuration can support cameras positioned around vehicles, robots, or compact mobile platforms.
• Embedded Vision Devices: The M12 × 0.5 mount provides a compact interface for embedded camera assemblies.
• Indoor Wide-Area Monitoring: Suitable for cameras installed close to ceilings, walls, equipment, or other fixed structures where broad coverage is required.
• Compact OEM Imaging Equipment: The fixed optical configuration can be integrated into customized camera housings and application-specific vision modules.

Designed for panoramic observation, surround-view imaging, robotics perception, and compact wide-area vision applications.

When designing a system around a specific target area, engineers can use the FOV Calculator to estimate scene coverage and determine whether the 150° field of view meets the application’s requirements.

For projects requiring customized mechanical or optical configurations, contact TOWIN to discuss application-specific lens requirements.

Frequently Asked Questions

Q: What sensor format is this 3.5mm M12 Wide Angle lens designed for?
A: The lens is designed for a 1/2″ image format and supports megapixel imaging performance.

Q: What is the field of view of this M12 Wide Angle lens?
A: The specified field of view is 150° diagonal, 108° horizontal, and 78° vertical.

Q: Why is this lens classified as a Wide Angle lens?
A: The combination of a 150° diagonal FOV and significant TV distortion is characteristic of an ultra-wide fisheye-type optical configuration designed to maximize scene coverage.

Q: Is this a low distortion lens?
A: No. The specified TV distortion is less than -18%. This lens is optimized for extremely wide scene coverage rather than low geometric distortion.

Q: What advantage does the F1.2 aperture provide?
A: The F1.2 aperture provides strong light-gathering capability, which can benefit wide-angle imaging systems operating in relatively low or variable lighting conditions.

Q: What is the minimum object distance of this Wide Angle lens?
A: The specified M.O.D. is 0.1m, making it suitable for relatively close-range wide-area imaging applications.

Q: What type of mount does this lens use?
A: It uses an M12 × 0.5 mount, making it suitable for compact embedded cameras, miniature vision modules, and other small-form-factor imaging systems.

Q: Can this lens be used for machine vision?
A: Yes, it can be used in specific machine vision and robotics applications where very wide scene coverage is required. However, its significant optical distortion should be considered carefully for applications involving precise measurement or dimensional inspection.
