Wide Angle Lens – M602713207822

M602713207822 is Wide angle low distortion 8-Megapixel 1/3.2″ CCTV lens with F2.2 aperture, 90° diagonal FOV, 6P structure, and M6.5×0.25 mount.

2.7mm M6.5 8MP Low Distortion Wide Angle Miniature Lens

This 2.7mm M6.5 miniature lens is designed for 1/3.2″ sensors and delivers 8MP imaging with a 90° diagonal field of view and TV distortion below 1%. Its compact 4.5mm TTL, F2.2 fixed aperture, and M6.5 × 0.25 mount make it suitable for high-resolution embedded vision and space-constrained imaging applications.

M6.5 Wide Angle Miniature Lens Core Highlights

• 8MP high-resolution imaging for compact embedded camera systems
• <1% TV distortion provides strong geometric accuracy for wide-angle imaging
• 90° diagonal FOV enables broad scene coverage from a compact 2.7mm focal length
• M6.5 × 0.25 miniature mount supports small camera module integration
• 4.5mm TTL and 0.95mm M.B.F.L. help accommodate space-constrained optical assemblies

2.7mm M6.5 Wide Angle Miniature Lens Applications

High-Resolution Embedded Vision

The combination of 8MP resolution, 78° horizontal FOV, and less than 1% TV distortion makes this lens suitable for compact cameras that need both detailed imaging and broad scene coverage.

Unlike a conventional wide-angle lens with significant geometric deformation, this design maintains controlled distortion while covering a relatively large scene. This is useful for embedded inspection systems where object position and shape need to remain visually consistent across the image.

Designed for high-resolution embedded vision application.

Typical applications include:

• Compact inspection cameras
• Embedded vision modules
• AI edge cameras
• Small-area quality inspection
• Object detection systems
• Automated visual monitoring

For optical selection based on sensor format and imaging requirements, engineers can refer to the Lens Selection Guide.

Low-Distortion Wide-Angle Imaging

With TV distortion below 1%, the lens provides a combination of wide scene coverage and controlled image geometry. The 90° diagonal FOV is particularly useful when a camera needs to capture a larger area without using a fisheye optical design.

This makes the lens suitable for:

• Wide-area visual inspection
• Object positioning
• Dimension-related visual analysis
• Camera-based monitoring
• Compact spatial sensing
• Embedded AI vision

The Distortion Guide provides additional information about how lens distortion affects imaging geometry and system performance.

Compact Machine Vision Systems

The M6.5 × 0.25 mount and 4.5mm TTL are well suited to miniature camera architectures where conventional C-Mount or CS-Mount optics would occupy excessive space.

The lens can be integrated into:

• Miniature machine vision cameras
• Embedded inspection devices
• Robotic vision modules
• Smart sensing cameras
• OEM camera assemblies
• Compact industrial imaging equipment

For systems requiring a broad field of view from a compact optical package, the Wide Angle Lens category provides additional lens options.

Compatible Device List

This lens can be considered for:

• 1/3.2″ 8MP camera modules
• Compact industrial cameras
• Embedded machine vision cameras
• Edge AI vision cameras
• Robotic camera modules
• Smart inspection devices
• OEM imaging modules
• Space-constrained vision systems

Before finalizing a camera module, the Sensor Guide can be used to verify sensor-format compatibility.

Frequently Asked Questions

Q: What sensor size is this 2.7mm lens designed for?
A: The lens is designed for a 1/3.2″ image format and provides a 90° diagonal, 78° horizontal, and 62° vertical field of view.

Q: Is this 2.7mm lens a fisheye lens?
A: No. Although it provides a 90° diagonal field of view, its TV distortion is specified at below 1%. The combination indicates a controlled-distortion wide-angle design rather than a typical fisheye configuration.

Q: Why is the TV distortion below 1% important?
A: Low distortion helps maintain the geometric relationship between objects and their positions in the image. This is particularly useful for inspection, positioning, measurement-related imaging, and machine vision applications.

Q: What resolution does this M6.5 lens support?
A: The lens is specified for 8MP resolution, making it suitable for compact high-resolution camera modules and embedded vision systems.

Q: What is the field of view of the 2.7mm lens?
A: On a 1/3.2″ sensor, the lens provides 90° diagonal FOV, 78° horizontal FOV, and 62° vertical FOV.

Q: What type of mount does this lens use?
A: It uses an M6.5 × 0.25 mount, which is suitable for miniature camera modules and compact optical assemblies.

Q: Does this lens have an adjustable iris?
A: No. It uses a fixed F2.2 aperture and fixed iris configuration.

Q: What is the total track length of the lens?

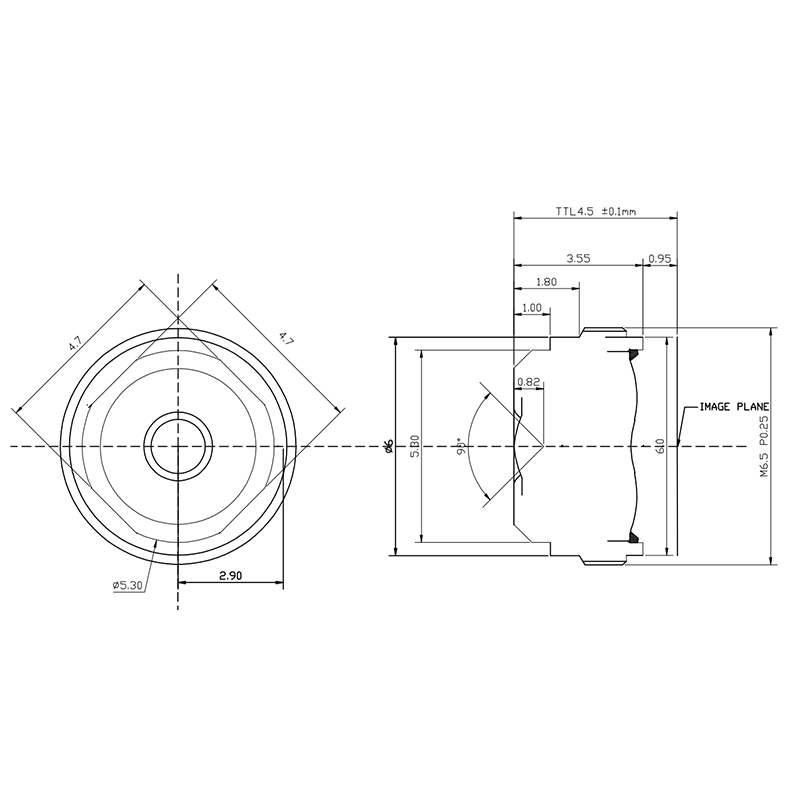

A: The specified T.T.L. is 4.5mm, while the M.B.F.L. is 0.95mm. These compact dimensions support integration into small camera housings and embedded optical systems.
