Wide Angle Lens – CCL12506MPFR1

CCL12506MPFR1 is Wide angle 3MP low distortion 1/2.5″ M12 – mount fixed – iris lens with 74° diagonal FOV, F1.8 aperture for security or general imaging applications.

6mm M12 Wide Angle Fixed Focal Lens

This 6mm M12 wide angle lens is designed for compact camera modules that require broad scene coverage within a small optical package. With a 74° diagonal FOV, 3MP resolution, F1.8 aperture, and M12×0.5 mount, it provides a practical fixed focal solution for embedded vision, monitoring, and compact imaging systems.

For engineers selecting a suitable compact lens, TOWIN’s M12 Lenses provide different focal length and optical configurations for embedded camera applications.

M12 Wide Angle Lens Core Highlights

• Wide 74° Diagonal FOV: Captures a broad scene with a 6mm focal length.
• 3MP Resolution: Provides clear imaging for compact camera applications.
• F1.8 Aperture: Supports effective light gathering for a wide range of imaging environments.
• Compact M12 Design: Φ14 × 16mm dimensions simplify integration into space-constrained camera housings.
• Fixed Focal Configuration: Provides a stable optical setup for applications with defined viewing requirements.

M12 Wide Angle Lens Applications

Core Application Scenes

This 6mm M12 wide angle fixed focal lens is designed for compact imaging systems where broad scene coverage and a small optical footprint are important. Its 60° horizontal FOV allows a single camera to monitor a relatively wide area without requiring an oversized lens assembly, making it suitable for embedded cameras, compact monitoring equipment, smart devices, and visual sensing modules.

The compact Φ14 × 16mm structure is particularly valuable for camera designs where installation space is restricted. It can be integrated into small enclosures, embedded vision modules, smart access devices, and compact industrial monitoring equipment where designers need a wider viewing angle without significantly increasing the optical assembly size.

The 0.3m minimum object distance also makes the lens suitable for relatively close-range imaging tasks, such as equipment observation, localized monitoring, and compact inspection systems. When determining whether the 6mm focal length provides sufficient coverage for a particular installation, engineers can use the FOV Calculator to estimate the expected viewing area.

Designed for compact wide-angle embedded imaging and close-range monitoring applications.

Compatible Device List

• Embedded Vision Cameras: Suitable for compact camera modules requiring a wider field of view and fixed focal length.
• Smart Monitoring Devices: Can be integrated into indoor monitoring equipment where broad scene coverage is required within a compact housing.
• Industrial Monitoring Cameras: Suitable for observing equipment, work areas, and localized production environments.
• Access-Control Imaging Devices: The wide-angle configuration can help capture subjects approaching or moving through a defined area.
• Compact IoT Vision Devices: The Φ14 × 16mm form factor is suitable for space-constrained smart vision hardware.
• OEM Camera Modules: The M12×0.5 interface provides a practical mounting configuration for customized embedded camera designs.

Optical Configuration and Sensor Matching

The lens is designed for a 1/2.5″ image format and provides 74° diagonal, 60° horizontal, and 44° vertical FOV. Its 6mm focal length provides substantially broader coverage than longer focal-length M12 configurations, making it appropriate when scene coverage is a priority.

For more information about selecting the correct image format and lens combination, refer to the Sensor Guide and Lens Selection Guide.

Frequently Asked Questions

Q: What type of lens is this?

A: This is a 6mm M12 wide angle fixed focal lens designed for compact camera modules requiring broad scene coverage and a small optical footprint.

Q: What sensor size is this M12 lens designed for?

A: The lens is specified for a 1/2.5″ image format and provides a 74° diagonal, 60° horizontal, and 44° vertical field of view.

Q: What is the field of view of the 6mm M12 lens?

A: The lens provides a 74° diagonal FOV, 60° horizontal FOV, and 44° vertical FOV when used with the specified 1/2.5″ image format.

Q: Is this lens a low distortion lens?

A: No. The specified optical distortion is below 19%, so this model should not be positioned as a dedicated low distortion lens. Applications requiring stricter geometric accuracy should use a lens specifically optimized for low distortion.

Q: What is the aperture of this M12 lens?

A: The lens features a fixed F1.8 aperture, providing a stable optical configuration and good light-gathering capability for compact imaging systems.

Q: What is the minimum object distance?

A: With a 0.3m MOD, this lens works for imaging tasks where subjects sit 300mm or further from the lens.

Q: What are the dimensions of this lens?

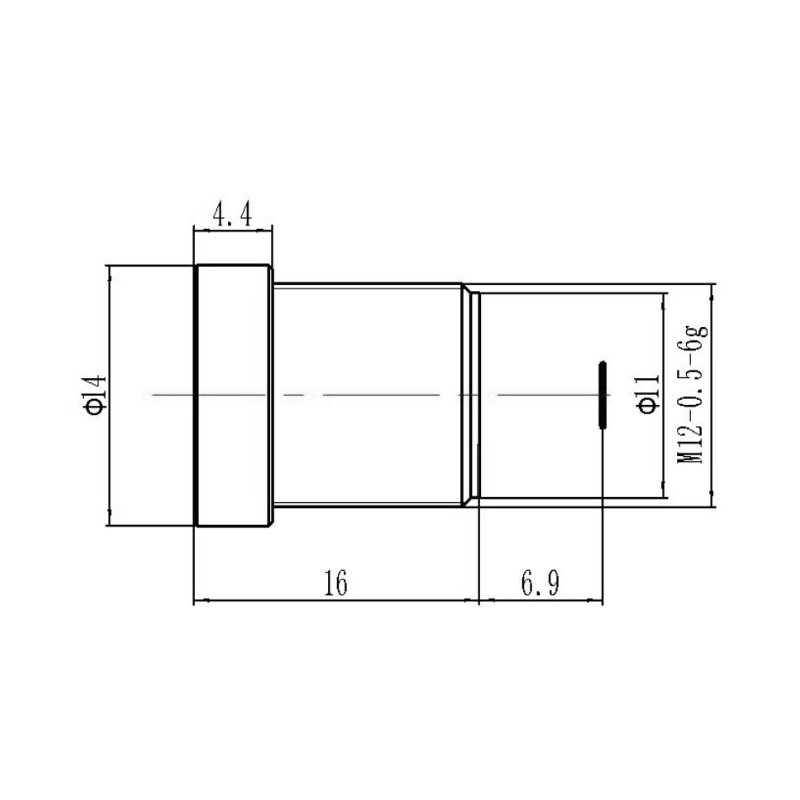

A: Compact at Φ14 × 16mm, this lens fits camera modules and devices with tight mounting space.

Q: Can this 6mm M12 lens be customized for an OEM camera?

A: TOWIN can evaluate customized optical and mechanical requirements for OEM and ODM camera projects. Customers can contact TOWIN with their sensor, FOV, working distance, housing, and integration requirements.

Product Selection Reference

When selecting a 6mm M12 lens, engineers should consider sensor format, required field of view, working distance, available installation space, and image resolution together. This model combines a 6mm focal length with a 60° horizontal FOV and compact Φ14 × 16mm dimensions, making it particularly suitable for applications that need broad coverage without a large optical assembly.

Compared with longer focal-length lenses, this wide angle configuration can cover a larger scene from a similar working distance. Engineers can review the Lens Basics resources for additional information about focal length, FOV, and lens selection.

For projects requiring a specific combination of sensor, focal length, field of view, and mechanical dimensions, contact TOWIN for an application-specific optical evaluation.
