Wide Angle Lens – CCL1250298MPFR3

CCL1250298MPFR3 is M12-mounted 5MP wide-angle lens with a 2.98mm focal length, low distortion (<-0.2%), fixed F2.4 aperture, and 850nm IR dual-pass filter.

2.98mm M12 5MP Low Distortion Wide Angle Lens

This 2.98mm M12 low distortion wide angle lens combines a 100° diagonal FOV with distortion below -0.2%, providing broad image coverage while maintaining excellent geometric control. Designed for 1/2.5″ and 1/2.7″ sensors, its 5MP resolution, compact M12 × 0.5 mount, and visible/850nm dual-pass optical design make it well suited to advanced machine vision, embedded imaging, and near-infrared vision systems.

For system designers working with different sensor formats, the Sensor Guide can help evaluate sensor and lens compatibility. The Lens Selection Guide provides additional guidance when balancing focal length, field of view, distortion, and application requirements.

Product Core Highlights

• 100° diagonal FOV on 1/2.5″ sensors for broad scene coverage.
• Ultra-low distortion below -0.2% for highly controlled image geometry.
• 5MP resolution for detailed industrial imaging.
• Visible + 850nm dual-pass design for visible and near-infrared imaging.

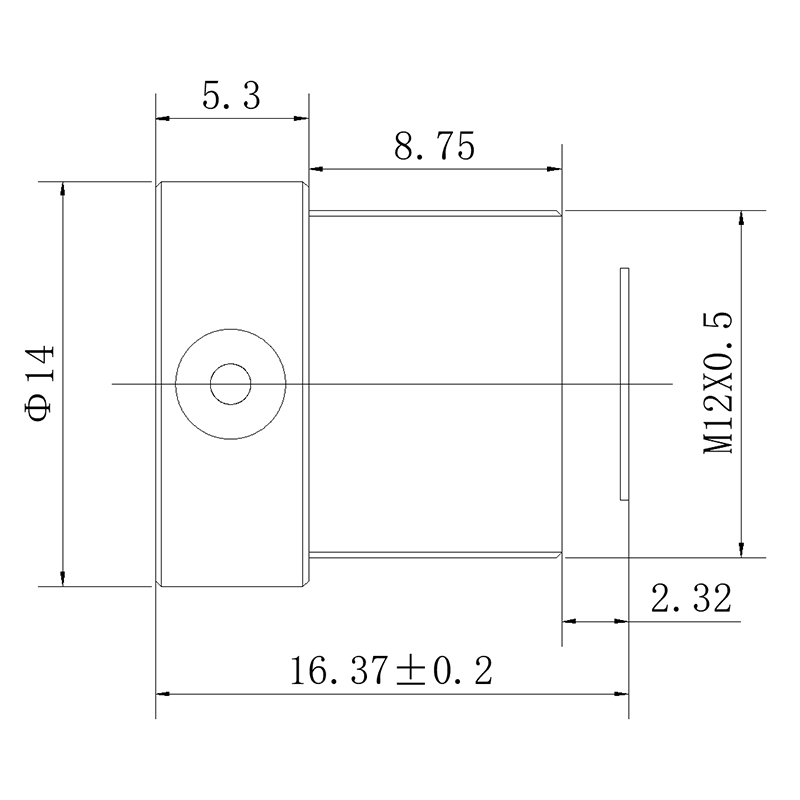

• Compact M12 × 0.5 configuration with a 16.37mm TTL.

This lens is part of the M12 Lenses range and provides an unusual combination of wide-angle coverage and extremely low distortion. This makes it particularly valuable for compact vision systems where a broad viewing area is required without introducing significant geometric deformation.

M12 Low Distortion Wide Angle Lens Applications

Core Application Scenes

This 2.98mm M12 industrial lens is designed for applications requiring a wide field of view while maintaining much tighter geometric control than conventional wide-angle optics. On a 1/2.5″ sensor, it provides a 100° diagonal and 86.9° horizontal FOV, allowing a compact camera to capture a large scene without relying on an extremely distorted image.

Its most distinctive characteristic is the distortion below -0.2%. This specification makes the lens particularly suitable for vision systems where wide-area coverage and image geometry need to coexist. Examples include visual positioning, object detection, scene analysis, industrial monitoring, and embedded machine vision where straight edges and object proportions should remain relatively stable across the image.

The integrated visible and 850nm dual-pass filter gives this lens a specialized advantage for systems that need to operate in both visible-light and 850nm near-infrared imaging conditions. This can be useful in smart vision equipment where NIR illumination is used to enhance contrast, support imaging under controlled lighting, or capture information that is less visible under conventional illumination.

The compact M12 × 0.5 mount and 16.37mm TTL also make the lens practical for embedded camera modules and space-constrained vision devices. With a 0.2m minimum object distance, it can be integrated into relatively close-range imaging systems where a broad field of view is required.

The lens is not intended to replace a dedicated fisheye lens. Instead, its optical positioning is closer to a low-distortion wide-angle lens, making it particularly useful when the application needs broad coverage without the pronounced geometric deformation normally associated with extreme wide-angle imaging.

For engineers calculating the expected coverage at a particular installation distance, the FOV Calculator can be used to evaluate sensor size, focal length, and field-of-view relationships.

Designed for low-distortion wide-area imaging, embedded vision, and visible/850nm near-infrared machine vision applications.

Compatible Device List

• 1/2.5″ Industrial Cameras: Supports wide-area imaging with a 100° diagonal FOV and 86.9° horizontal FOV on the specified sensor format.
• 1/2.7″ Camera Modules: Provides a 96° diagonal FOV and broad horizontal coverage for compatible compact camera platforms.
• Embedded AI Vision Cameras: The compact M12 interface and low-distortion optical design are suitable for intelligent camera modules used for object detection and scene analysis.
• Machine Vision Systems: Suitable for applications requiring broad image coverage with controlled geometric distortion.
• Robotic Vision Modules: The wide FOV can help compact robots and automated equipment obtain a broader visual field for positioning and environmental awareness.
• NIR Vision Systems: The visible/850nm dual-pass configuration supports systems using 850nm near-infrared illumination.
• Compact Inspection Devices: The small optical format can be integrated into space-constrained imaging equipment where conventional industrial lenses may be too large.
• Custom Embedded Camera Platforms: The fixed F2.4 aperture and M12 × 0.5 interface provide a straightforward optical configuration for integrated camera designs.

For projects requiring customized coatings, filter characteristics, mechanical dimensions, sensor matching, or application-specific optical development, engineers can contact Towin Lens for technical consultation.

Frequently Asked Questions

Q: What sensor sizes are compatible with this 2.98mm M12 lens?
A: The lens provides specified FOV data for both 1/2.5″ and 1/2.7″ sensors, making it suitable for compatible camera modules using these image formats.

Q: What is the field of view on a 1/2.5″ sensor?
A: On a 1/2.5″ sensor, the lens provides 100° diagonal, 86.9° horizontal, and 70.5° vertical FOV.

Q: Is this a low distortion lens?
A: Yes. The specified distortion is below -0.2%, which is exceptionally low for a lens providing such a broad field of view.

Q: Is this lens considered a fisheye lens?
A: No. Despite its 100° diagonal FOV, the < -0.2% distortion specification indicates a low-distortion wide-angle optical design rather than a conventional fisheye configuration.

Q: What does the 850nm dual-pass filter mean?
A: The optical design supports visible light and 850nm near-infrared transmission, making the lens suitable for imaging systems that combine conventional visible illumination with 850nm NIR illumination.

Q: Is the 2.98mm focal length fixed?
A: Yes. This is a fixed focal lens with a 2.98mm focal length and fixed F2.4 aperture.

Q: What is the minimum object distance?
A: The specified M.O.D. is 0.2m, allowing the lens to be used in relatively close-range wide-area imaging applications.

Q: What applications are suitable for this M12 low distortion lens?
A: Suitable applications include embedded machine vision, robotic vision, wide-area inspection, intelligent camera systems, visual positioning, object detection, and visible/850nm NIR imaging where broad coverage and low distortion are both important.
