Low Distortion Lens – S16023003028

S16023003028 is Low distortion 8-Megapixel M12-mount CCTV lens with a 37° diagonal field of view, F2.8 aperture, suitable for security surveillance applications.

16mm 8MP M12 Low Distortion Lens

This 16mm M12 low distortion lens is designed for 2/3″ image sensors and supports up to 8MP resolution. With an F2.8 fixed aperture, 37° diagonal FOV, and exceptionally low TV distortion below 0.1%, it provides precise image reproduction for high-resolution machine vision and compact industrial imaging systems.

Product Core Highlights

• 8MP optical performance for high-resolution industrial imaging.
• <0.1% TV distortion for highly accurate image geometry.
• F2.8 fixed aperture for consistent optical performance.
• 2/3″ sensor support for advanced compact vision cameras.

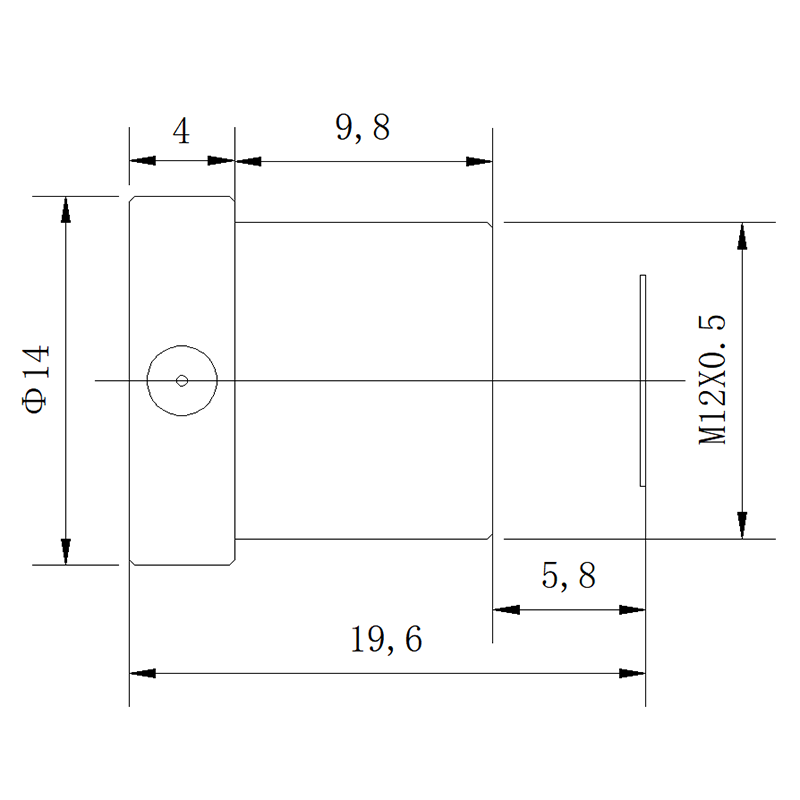

• M12 × 0.5 mount for space-efficient camera integration.

16mm M12 Low Distortion Lens Applications

Core Application Scenes

This 16mm 8MP M12 lens is engineered for imaging applications where high resolution and extremely low distortion are more important than ultra-wide scene coverage. Its 2/3″ image format and 8MP resolution make it suitable for compact cameras that require detailed target reproduction while maintaining a relatively controlled field of view.

The defining feature is its TV distortion below 0.1%. Such low distortion helps preserve the geometric relationship between objects and their positions in the captured image, making the lens particularly relevant to machine vision tasks involving dimensional inspection, alignment, edge detection, component positioning, and other image-processing operations where optical distortion can introduce measurement errors.

The F2.8 fixed aperture provides a consistent optical configuration for fixed-camera installations. Combined with a 0.1m minimum object distance, the lens can be deployed in relatively close-range inspection environments where the camera is positioned near a component, workpiece, or target area.

The compact M12 × 0.5 mount also makes this lens suitable for specialized embedded vision equipment where conventional larger industrial lens mounts may be difficult to integrate. For system designers evaluating the relationship between sensor format, focal length, working distance, and coverage, TOWIN’s Lens Selection Guide provides a useful starting point.

Compatible Device List

• High-Resolution Machine Vision Cameras: Suitable for compact 2/3″ 8MP camera modules used in automated inspection.
• Dimensional Inspection Systems: The extremely low distortion can help maintain geometric accuracy during image-based inspection.
• Robotic Inspection Cameras: Suitable for robotic systems that need detailed imaging of components at a controlled working distance.
• Embedded Industrial Cameras: The M12 × 0.5 interface supports integration into compact camera assemblies.
• OEM Vision Equipment: Suitable for customized imaging equipment requiring 8MP performance and highly controlled distortion.

For more compact optical options, explore the M12 Lenses product range. For automated inspection and industrial imaging applications, see TOWIN’s Machine Vision solution.

When evaluating the target coverage of this 16mm lens, the FOV Calculator can help estimate image coverage based on the sensor and working distance. For applications requiring a different focal length, the Focal Length Calculator can assist with preliminary lens selection.

Designed for high-precision machine vision inspection, dimensional imaging, and compact industrial camera applications.

Frequently Asked Questions

Q: What sensor size is supported by this 16mm M12 lens?
A: This lens is designed for 2/3″ image sensors and supports up to 8MP resolution.

Q: What is the field of view of the lens?
A: The lens provides a 37° diagonal FOV, 30° horizontal FOV, and 23° vertical FOV.

Q: How low is the distortion of this lens?
A: The specified TV distortion is less than 0.1%, making it particularly suitable for applications where maintaining image geometry is important.

Q: Why is low distortion important for machine vision?
A: Low optical distortion helps preserve the relative geometry of objects in the captured image. This can be valuable for inspection, alignment, measurement, positioning, and image-processing applications.

Q: What aperture does this lens use?
A: The lens features a fixed F2.8 aperture and fixed iris configuration, providing a consistent optical setup for fixed-camera applications.

Q: What is the minimum object distance?
A: The specified M.O.D. is 0.1m, or 100mm, allowing the lens to be used for relatively close-range industrial imaging.

Q: Is this lens suitable for compact machine vision systems?
A: Yes. The 2/3″ sensor coverage, 8MP resolution, extremely low distortion, and M12 × 0.5 mount make it suitable for selected compact machine vision and embedded inspection systems.

Q: How can I determine whether this 16mm focal length is suitable for my application?
A: Focal length should be selected based on sensor size, working distance, and required field of view. TOWIN’s Sensor Guide explains sensor and optical compatibility, while the FOV Calculator can help estimate the required coverage. For project-specific requirements, you can contact TOWIN for technical support.
