S02112312022B850

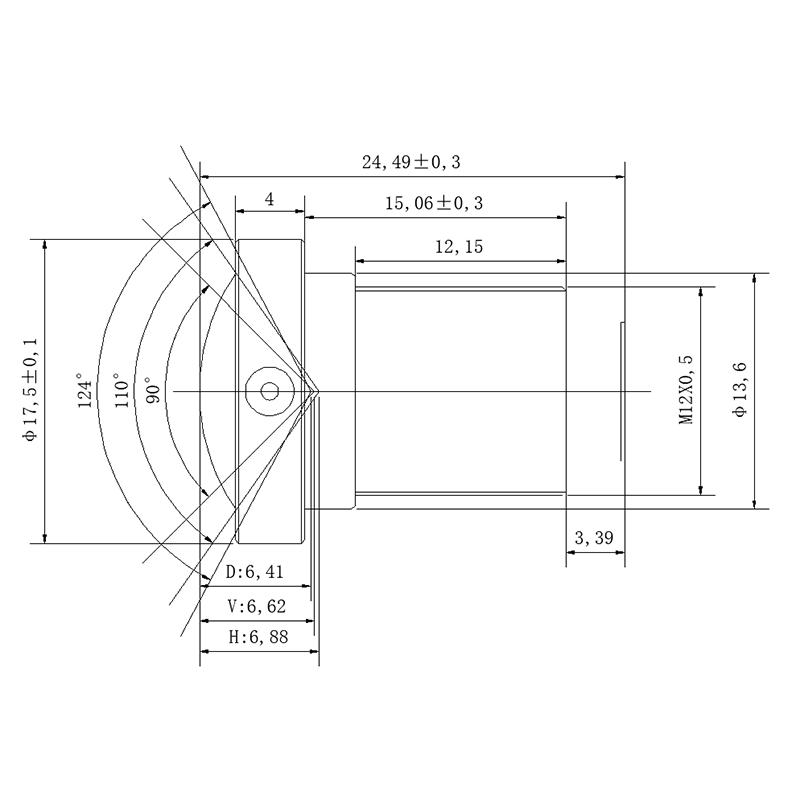

5-Megapixel low distortion lens, 2.1mm wide-angle lens, 1/2.5″ M12/S mount lens, F2.2, suitable for surveillance applications.
S02112312022B850 is 5-Megapixel low distortion lens, 2.1mm wide-angle lens, 1/2.5″ M12/S mount lens, F2.2, suitable for surveillance applications.
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 2.1mm |
| F.O.V. | 124°(D) |
| 110°(H) | |
| 90°(V) | |
| RESOLUTION | 5 MP |
| TV DISTORTION | <-5% |
| APERTURE | F2.2 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 24.49mm |
| STRUCTURE | 4G2P+BPF850 |
