Low Distortion Lens – M805812705530F

M805812705530F is Low Distortion Lens 5-Megapixel CCTV lens with Built-In IR Filter, 1/2.7″ 5.8mm 63° M8x0.35 mount, structure for security surveillance.

5.8mm M8 5MP Low Distortion Fixed Focal Lens

This 5.8mm M8 low distortion lens is a compact fixed focal lens designed for 1/2.7″ sensors and 5MP imaging systems. With a 63° diagonal FOV, <5.5% distortion, 0.1m minimum object distance, and a compact 10.3mm TTL, it provides a practical optical solution for space-constrained embedded cameras, compact inspection modules, and miniature vision equipment.

Product Highlights at a Glance

• 5MP resolution supports detailed imaging for compact vision systems.
• < -5.5% distortion provides controlled image geometry for embedded imaging applications.
• 63° diagonal FOV delivers broad coverage without fisheye-level perspective.
• M8 × 0.35 mount provides a compact interface for miniature camera assemblies.
• 5G + IRCF structure combines a compact optical configuration with integrated IR-cut filtering.

5.8mm M8 Low Distortion Lens Applications

Core Application Scenes

This 5.8mm M8 low distortion lens is designed for compact camera systems that require a balance between field of view, image resolution, and optical size. Its 63° diagonal FOV provides useful scene coverage for close- to medium-range imaging, while the controlled distortion helps maintain more consistent object geometry across the captured image.

The lens is well suited to compact machine vision modules, embedded inspection cameras, robotic visual sensors, smart electronic equipment, and miniature industrial imaging devices. With support for 1/2.7″ sensors and 5MP resolution, it can provide detailed image capture without requiring a large optical assembly.

The 0.1m minimum object distance makes the lens particularly useful for equipment positioned relatively close to the target. This can benefit compact inspection modules used for component recognition, assembly verification, object positioning, and localized visual inspection.

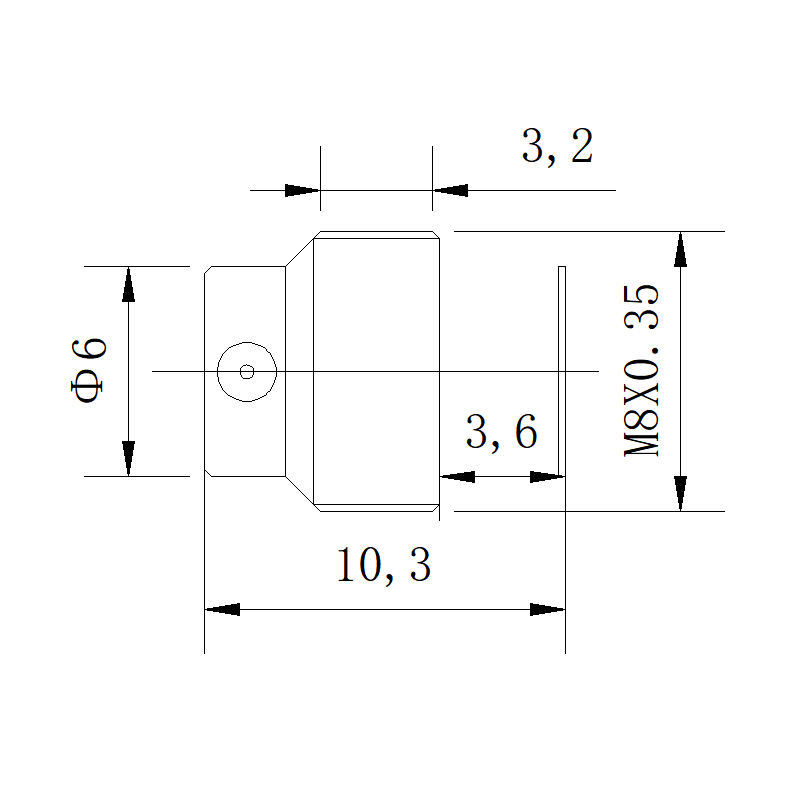

Its M8 × 0.35 mount and 10.3mm TTL are important advantages when mechanical space is limited. The 4.9mm BFL also provides a defined optical mounting reference for camera module integration. The 5G + IRCF construction is suitable for camera designs incorporating an IR-cut filter within the optical assembly.

For embedded systems that operate under controlled visible-light conditions, the integrated IRCF can help maintain natural-color imaging by filtering unwanted infrared wavelengths. This makes the lens suitable for compact camera modules where optical performance and mechanical integration need to be considered together.

Designed for compact machine vision, embedded inspection, and space-constrained industrial imaging applications.

Compatible Device List

• Compact Machine Vision Cameras: Suitable for 1/2.7″ sensors and up to 5MP imaging in space-constrained vision modules.
• Embedded Inspection Modules: The compact M8 interface and short optical length are suitable for small inspection equipment.
• Robotic Vision Sensors: The 55° horizontal FOV provides practical forward-facing coverage for compact robotic sensing modules.
• Industrial Camera Modules: Suitable for object recognition, positioning, assembly inspection, and localized visual monitoring.
• Smart Embedded Cameras: The 10.3mm TTL helps reduce the optical footprint of compact camera assemblies.
• Close-Range Imaging Devices: The 0.1m M.O.D. supports imaging applications where the camera is installed relatively close to the target.

For additional miniature optical configurations, explore Towin’s Other Mount Lenses and M12 Lenses. For application-specific vision systems, the Machine Vision solution provides additional information about integrating optical components into industrial imaging equipment.

When selecting a lens for a 1/2.7″ camera, sensor size and image format should be checked before finalizing the optical configuration. Towin’s Sensor Guide explains the relationship between camera sensors and lens image formats, while the Lens Selection Guide covers key parameters such as focal length, FOV, resolution, and distortion.

For applications where geometric accuracy matters, the Distortion Guide provides additional information about lens distortion and its influence on captured images.

Engineers can also use the FOV Calculator to estimate the expected scene coverage when combining this lens with a specific sensor and camera configuration.

Frequently Asked Questions

Q: What type of lens is the 5.8mm M8 lens?
A: It is a fixed focal, low distortion miniature lens designed for 1/2.7″ sensors and 5MP imaging applications.

Q: Is this lens a fisheye lens?
A: No. The 63° diagonal FOV does not represent a fisheye optical design. The lens is better classified as a compact low distortion fixed focal lens.

Q: What is the field of view of this 5.8mm lens?
A: When used with a 1/2.7″ sensor, the lens provides approximately 63° diagonal, 55° horizontal, and 32° vertical FOV.

Q: What does the < -5.5% distortion specification mean?
A: It indicates that the lens has controlled geometric distortion compared with highly distorted ultra-wide optical designs. This can be beneficial in visual recognition, inspection, positioning, and other imaging applications where object geometry matters.

Q: What sensor size is this M8 lens designed for?
A: The lens is specified for a 1/2.7″ image format and supports 5MP resolution.

Q: What is the function of the IRCF in this lens?
A: IRCF generally refers to an infrared-cut filter. It helps block unwanted infrared wavelengths from reaching the image sensor, supporting more consistent visible-light color reproduction in suitable camera systems. It should not be interpreted as an IR-corrected optical design unless IR correction is separately specified.

Q: What is the minimum object distance of this lens?
A: The specified M.O.D. is 0.1m, making the lens suitable for relatively close-range imaging applications.

Q: What are the advantages of the M8 × 0.35 mount?
A: The M8 × 0.35 interface provides a compact mounting solution for miniature camera modules, embedded vision devices, and equipment where the available optical installation space is limited.
