CCL1402322MP

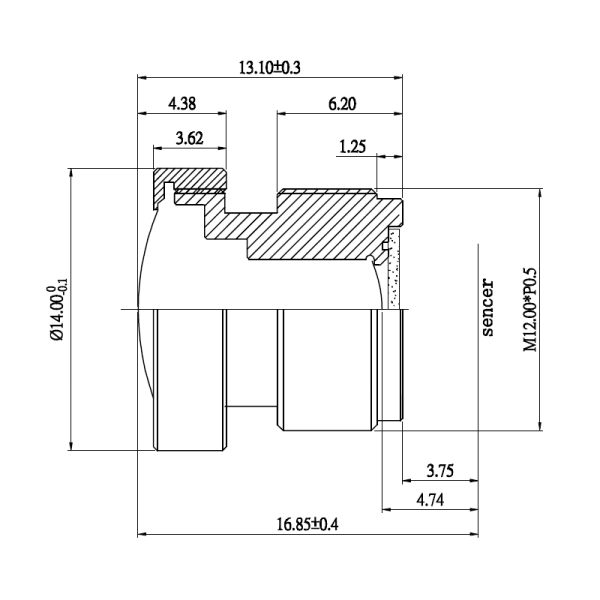

2.3mm Low distortion lens, F2.2 120° M12/S-mount wide-angle lens, 1/4″ High-resolution 5-Megapixel CCTV lens.
CCL1402322MP is 2.3mm High-precision Low distortion lens, F2.2 120° M12/S-mount wide-angle lens, 1/4″ High-resolution 5-Megapixel CCTV lens.
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 2.3mm |
| F.O.V. | 120°(D) |
| 90°(H) | |
| 60°(V) | |
| TV DISTORTION | 12% |
| RESOLUTION | 5MP |
| APERTURE | F2.2 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 4.74mm |
| M.O.D. | 0.3m |
| CONSTRUCTION | 6G |
