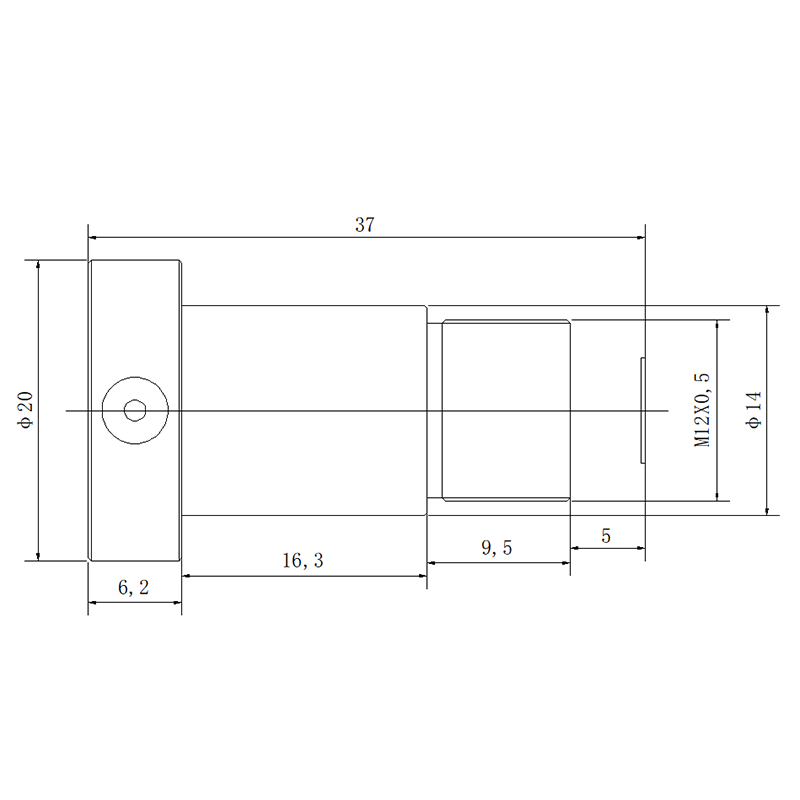

CCTV Lens – S04012509612- IMX462

S04012509612- IMX462 is 4mm 3-Megapixel wide-angle CCTV lens, 1/2.8″ M12/S-mount lens, F1.2 Aperture, IR corrected, suitable for low-light conditions.

4mm M12 IR corrected CCTV Lens

This 4mm M12 IR corrected CCTV lens is designed for 1/2.8″ image sensors and delivers a 110° diagonal field of view with a fast F1.2 aperture. Optimized for the Sony IMX462 sensor, its IR corrected optical design supports consistent imaging across visible and near-infrared wavelengths, making it well suited for day-and-night surveillance, smart security, and low-light vision systems.

Product Highlights at a Glance

• 110° ultra-wide FOV for broad-area camera coverage
• F1.2 fast aperture for strong light-gathering performance in low-light scenes
• IR corrected optical design for improved focus consistency across visible and near-infrared wavelengths
• IMX462 optimized for 1/2.8″ Sony STARVIS-class low-light imaging systems
• 0.15m M.O.D. supports close-range monitoring and compact camera applications

M12 IR corrected CCTV Lens Applications

Core Application Scenes

This 4mm M12 IR corrected lens is designed for camera systems that need wide-area coverage, strong low-light performance, and stable imaging when switching between visible and near-infrared illumination. Its 110° diagonal FOV provides broad scene coverage without relying on the extreme geometric distortion associated with fisheye optics.

The combination of F1.2 aperture and IR correction makes this lens particularly suitable for 24-hour security cameras. During daytime operation, the camera can use visible light for normal color imaging, while under low-light or nighttime conditions, near-infrared illumination can be used without causing the optical focus shift that can occur with lenses not designed for IR wavelengths.

The lens is specified for the Sony IMX462 and can therefore be integrated into compact low-light camera modules built around this sensor. The M12x0.5 mount is well suited to embedded camera designs where limited mechanical space requires a compact optical interface.

With a 0.15m minimum object distance, the lens can also support close-range observation. This makes it practical for entrances, indoor monitoring zones, equipment areas, access points, and other locations where both nearby subjects and a relatively broad scene need to remain visible.

For applications requiring accurate geometric imaging rather than wide-area coverage, the Lens Selection Guide can help with selecting the appropriate optical configuration.

Compatible Device List

• Day & Night Security Cameras: Suitable for compact surveillance cameras operating continuously across daytime and nighttime conditions.
• Sony IMX462 Camera Modules: Optimized for the 1/2.8″ IMX462 sensor, making it suitable for low-light embedded camera designs.
• IR Night-Vision Cameras: The IR corrected design supports applications using near-infrared illumination for nighttime monitoring.
• Smart Security Systems: Suitable for AI-enabled security cameras, access monitoring systems, and intelligent surveillance devices.
• Embedded Vision Modules: The M12x0.5 interface allows integration into compact camera assemblies and space-constrained vision equipment.
• Indoor Wide-Area Monitoring: The 110° diagonal FOV can cover entrances, corridors, rooms, equipment zones, and other relatively broad indoor scenes.
• Close-Range Imaging: The 0.15m M.O.D. supports applications where subjects or objects may be positioned relatively close to the camera.

For additional information about compact M12 optical solutions, explore M12 Lenses and the dedicated M12 Lens solution.

For security-focused deployments, see the Smart Security solution. If the camera is intended for continuous traffic or roadside monitoring, the Smart Traffic solution provides additional application context.

To understand how sensor format affects lens selection and field of view, refer to the Sensor Guide. For a project requiring a customized optical or mechanical configuration, contact Towin.

Designed for low-light surveillance, IR night vision, smart security, and wide-angle embedded camera applications.

Frequently Asked Questions

Q: What type of lens is this 4mm M12 lens?
A: It is a fixed focal length, wide-angle M12 lens with an IR corrected optical design. It is specified for 1/2.8″ image sensors and provides a 110° diagonal FOV with the IMX462.

Q: Is this lens compatible with the Sony IMX462?
A: Yes. The specified F.O.V. is measured at the IMX462 sensor, and the lens is designed for the 1/2.8″ image format used by this sensor.

Q: What is the field of view of this 4mm M12 lens?
A: With the IMX462, the lens provides 110° diagonal, 93° horizontal, and 50° vertical field of view.

Q: What does IR corrected mean?
A: IR correction refers to an optical design intended to maintain more consistent focus performance across visible and near-infrared wavelengths. This is particularly useful for cameras that switch between daytime imaging and IR-assisted night vision.

Q: Why is the F1.2 aperture useful for security cameras?
A: The F1.2 aperture allows a relatively large amount of light to reach the sensor, helping the camera maintain usable image brightness in low-light environments.

Q: Is this lens suitable for night vision?
A: Yes. The combination of IR correction, F1.2 aperture, and compatibility with the low-light-oriented IMX462 makes it suitable for camera systems using near-infrared illumination for nighttime imaging.

Q: What is the minimum object distance of this lens?
A: The specified M.O.D. is 0.15m, allowing the lens to focus on relatively close subjects when correctly integrated and adjusted within the camera system.

Q: Can Towin customize this IR corrected M12 lens?
A: Towin can evaluate customized optical and mechanical requirements based on the target sensor, FOV, housing dimensions, wavelength range, and application. Project-specific requirements can be submitted through Contact Towin.
