CCL12507560MPF

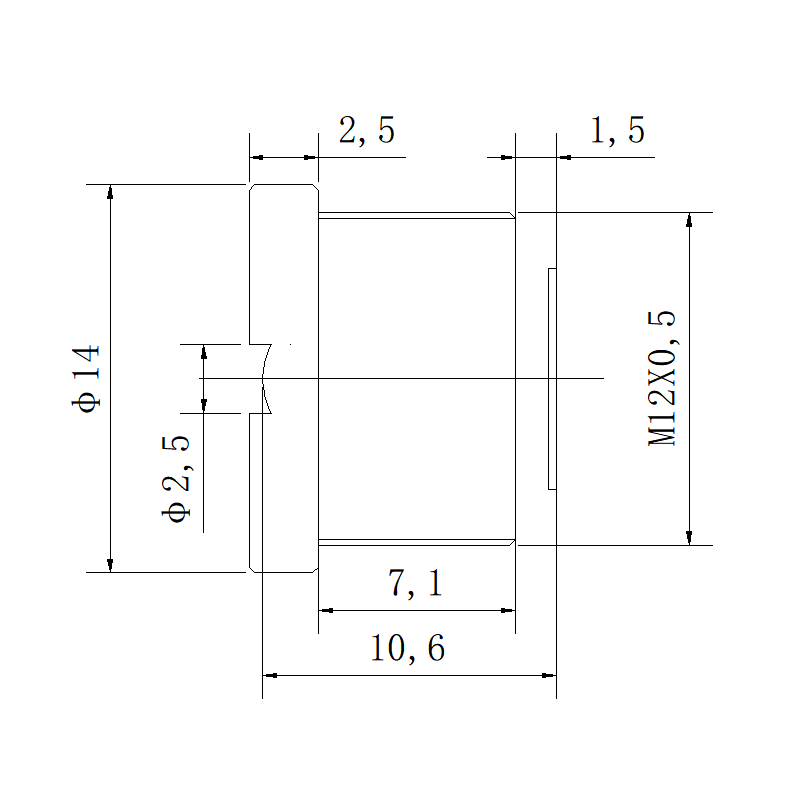

7.5mm CCTV lens, 1/2.5″ M12/S-Mount lens, 5-Megapixel low distortion lens.
CCL12507560MPF is 7.5mm CCTV lens with Built-In Filter, 1/2.5″ M12/S-Mount lens, 5-Megapixel low distortion lens, High-Resolution, Suitable for security surveillance.
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 7.5mm |
| F.O.V. | 52°(D) |
| 42°(H) | |
| 32°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1.4% |
| APERTURE | F6.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| B.F.L. | 2.9mm |
| TTL | 10.6mm |
| STRUCTURE | 2G2P+IRCF |
