S03012808320F

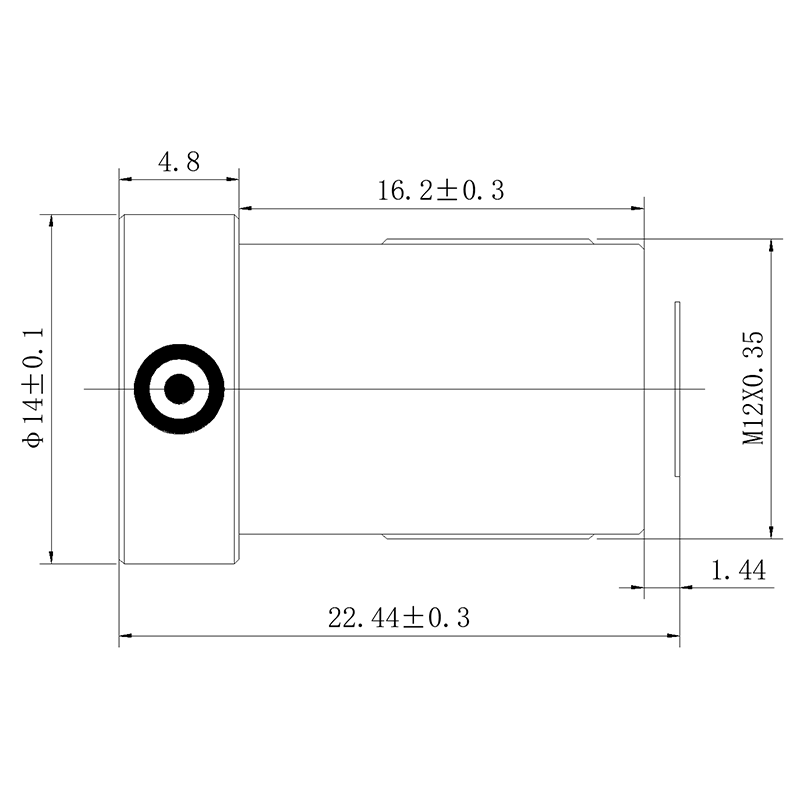

Wide-angle low distortion CCTV HD lens with Built-In Filter, 1/2.8″ Φ6.9 M12 lens 93° 8-Megapixel F2.0 security surveillance.
S03012808320F is Wide-angle low distortion CCTV HD lens with Built-In Filter, 1/2.8″ Φ6.9 M12 lens 93° 8-Megapixel F2.0 security surveillance.
| IMAGE FORMAT | Max Φ6.9mm |
| FOCAL LENGTH | 3.0mm |
| F.O.V. (1/2.8″ IMX415) | 93°(D=6.39) |
| 83°(H=5.57) | |
| 52°(V=3.13) | |
| RESOLUTION | 8 MP |
| DISTORTION | <-1% |
| APERTURE | F2.0 |
| MOUNT | M12X0.35 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| M.B.F.L. | 1.44mm |
| T.T.L. | 22.44mm |
| IRCF | Yes |
