CCL14011MPF
1/4″ 1.1mm wide angle, F2.0 M12 S-Mount automotive car rear view lens with short T.T.L. 10mm
CCL14011MPF is a 1.1mm M12 S-Mount automotive car rear view lens. It is designed for 1/4″ sensors, such as JX-H62, AR0140AT, OV9712. And it is a wide angle board lens with very short T.T.L. 10mm.
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 1.1mm |
| F.O.V. | 168°(D) |
| 138°(H) | |
| 112°(V) | |
| TV DISTORTION | <-18% |
| RESOLUTION | VGA |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 2.56mm |
| M.O.D. | 0.2m |
| CONSTRUCTION | 2G2P+IR cut filter |

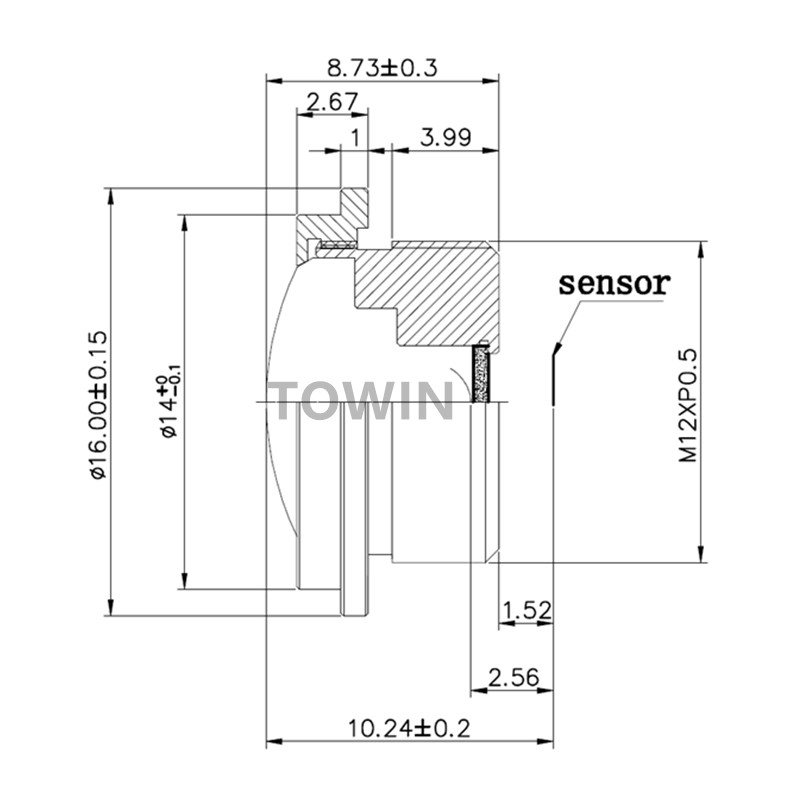

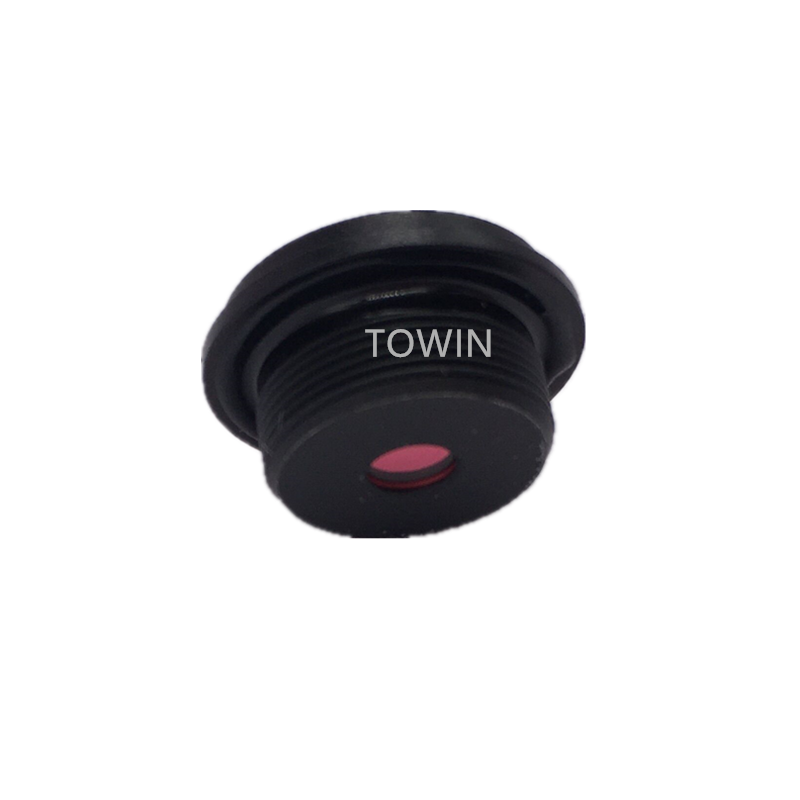

CCL14011MPF 1.1mm M12 S-mount Automotive car lens
