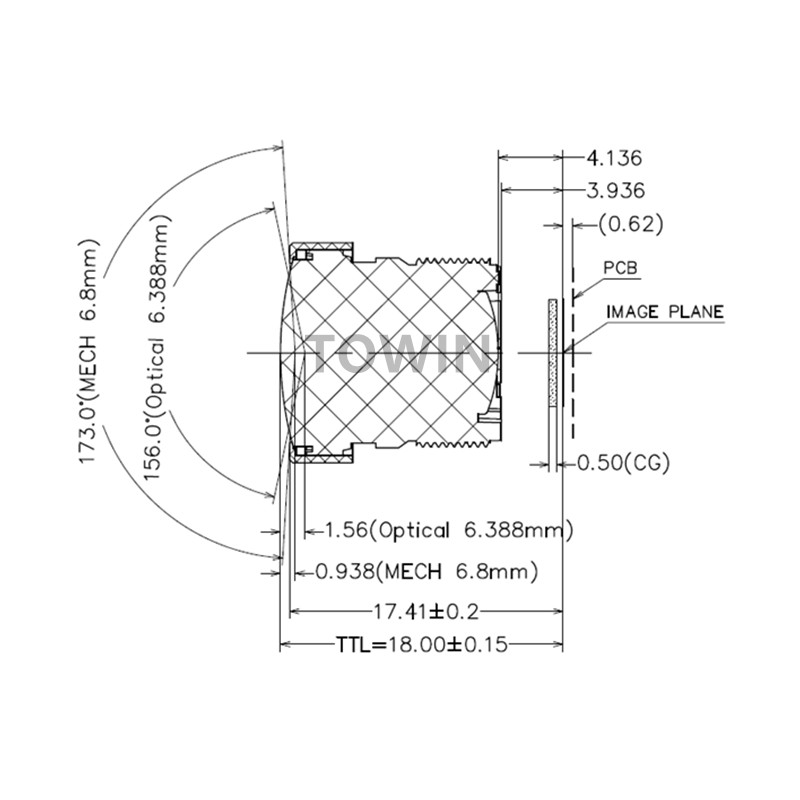

CCL12802620MPF-1 M12 S-mount wide angle vehicle lens for IMX290
| IMAGE FORMAT | 1/2.8″ |
| FOCAL LENGTH | 2.6mm |
| F.O.V. (sensor IMX290) | 156°(D) |
| 130°(H) | |
| 69°(V) | |
| RESOLUTION | 3 Megapixel |
| DISTORTION | <-74% |
| TV DISTORTION | <-6%(H) |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 4.136mm |
| T.T.L.(mm) | 18 |
| M.O.D. | 0.2m |
| CONSTRUCTION | 4G1MG+IRF+holder |
| HOLDER MATERIAL | LCP+30%GF(black) |
CCL12802620MPF-1 M12 S-mount wide angle vehicle lens for IMX290
