CCL127016MPF
M12 S-mount wide angle vehicle board lens waterproof IP68 for car rear view

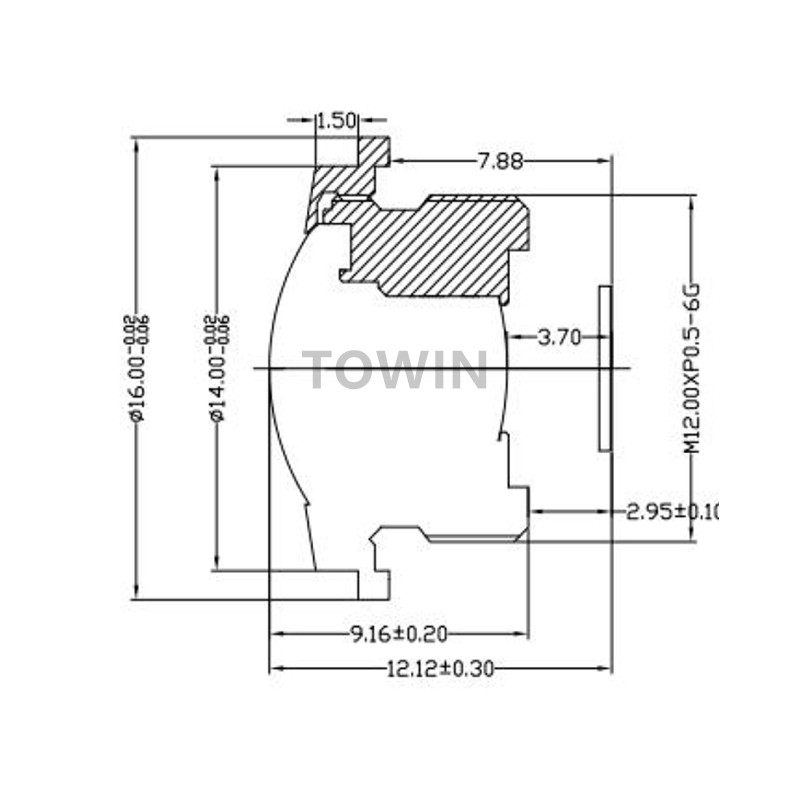

CCL127016MPF M12 S-mount wide angle vehicle board lens waterproof IP68 for car rear view
| IMAGE SIZE | Φ5.8 |
| FOCAL LENGTH | 1.6mm |
| FOV@5.8mm | 205°(H) |
| FOV@3.2mm | 105°(V) |
| FOV@4.3mm | 143°(H) |
| FOV@2.2mm | 72°(V) |
| RESOLUTION | 2MegaPixel |
| DISTORTION | <99% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| T.T.L. | 12.12mm |
| CONSTRUCTION | 6G+IRF |
CCL127016MPF M12 S-mount wide angle vehicle board lens waterproof IP68 for car rear view
