Low distortion wide angle 1/2.5″ 5.2mm 59° M12 mount lens rectilinear scanning HD 5MP
CCL125052MPF Low distortion wide angle 1/2.5″ 5.2mm 59° M12 mount lens rectilinear scanning HD 5MP

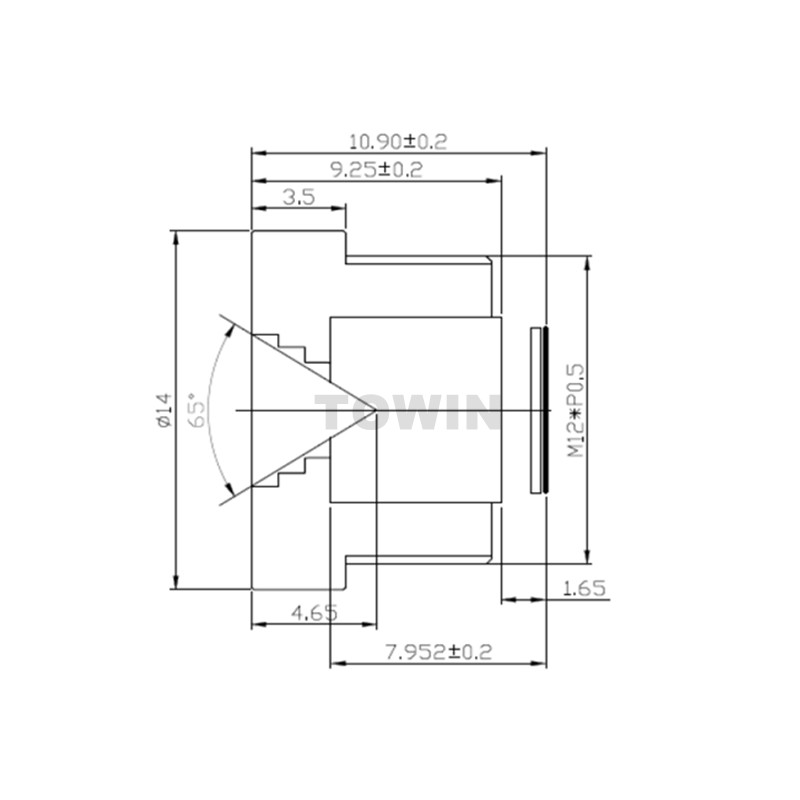

| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 5.2mm |
| H.F.O.V. | 59° |
| RESOLUTION | 5 MP |
| DISTORTION | <1% |
| APERTURE | F2.6 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 7.95mm |
| LENS COMPOMEMT | 5P+IR cut |
