Low distortion CCTV 1/2.3″ 4.9mm M12 mount lens IR corrected for HD 10MP surveillance
CCL123049MP Low distortion CCTV 1/2.3″ 4.9mm M12 mount lens IR corrected for HD 10MP surveillance
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 4.9mm |
| F.O.V. | 90°(D) |
| 73°(H) | |
| 61°(V) | |
| RESOLUTION | 10 MP |
| TV DISTORTION | <-8% |
| APERTURE | F2.2 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |

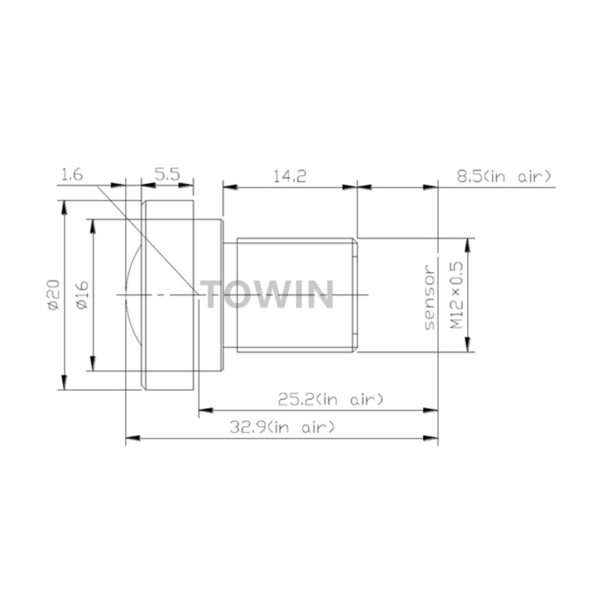

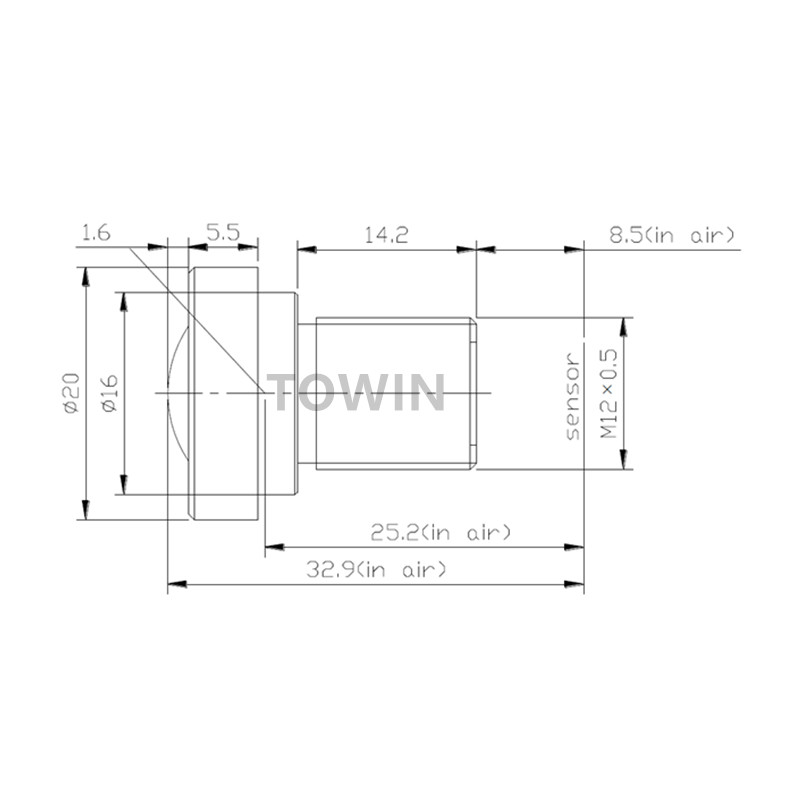

| T.T.L. | 32.9mm |
| DIMENSION | Φ20×24.4mm |
| IR | Corrected |
CCL123049MP Low distortion CCTV 4.9mm M12 mount lens IR corrected for HD 10MP surveillance
