CCL123046MP
Low distortion wide angle 1/2.3″ 4.6mm 71° M12 mount lens HD 12MP rectilinear scanning

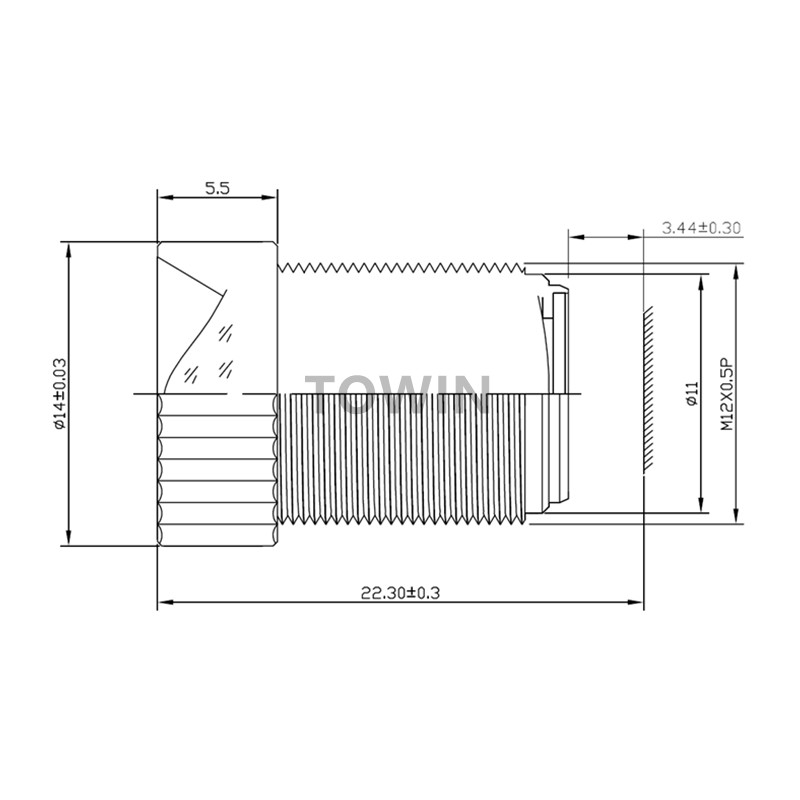

CCL123046MP Low distortion wide angle 1/2.3″ 4.6mm 71° M12 mount lens HD 12MP rectilinear scanning
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 4.6mm |
| F.O.V. | 82°(D) |
| 71°(H) | |
| 58°(V) | |
| RESOLUTION | 10 MP |
| DISTORTION | <0.5% |
| APERTURE | F4.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 22.3mm |
| DIMENSION | Φ14×18.8mm |
| LENS COMPOMEMT | 3G2P |
CCL123046MP Low distortion wide angle 4.6mm 71° M12 mount lens HD 12MP rectilinear scanning
