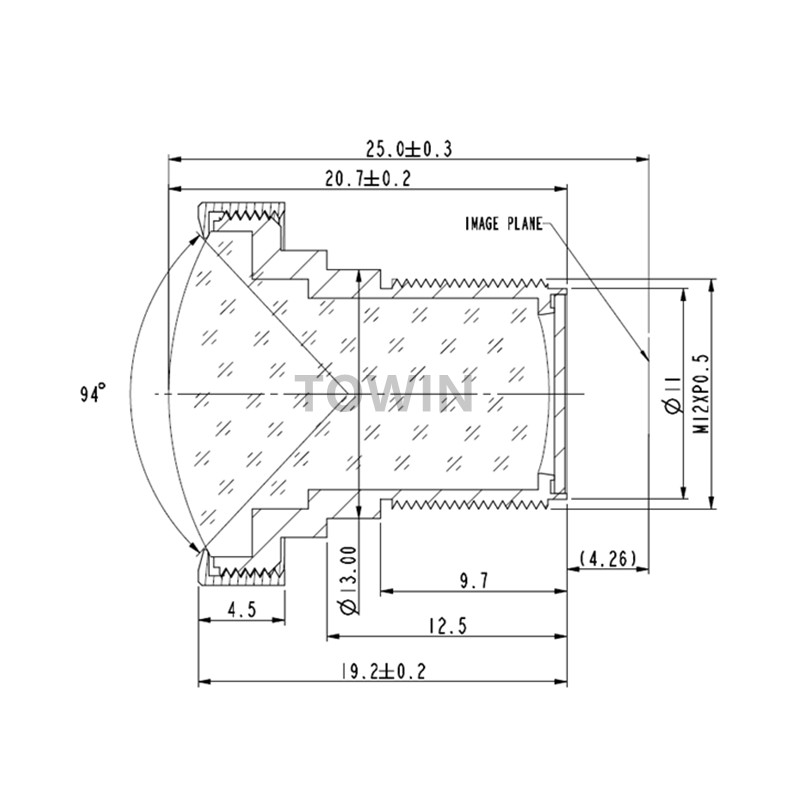

Low distortion wide angle 3.6mm 82° M12 mount lens 1/2.3“ with HD 14MP IMX117 UAV drone
CCL123036MPFR Low distortion wide angle 3.6mm 82° M12 mount lens 1/2.3“ with HD 14MP IMX117 UAV drone
| IMAGE FORMAT | 1/2.3“ |
| FOCAL LENGTH | 3.65mm |
| F.O.V. | 94°(D) |
| 82°(H) | |
| 69°(V) | |
| RESOLUTION | 12.5MP |
| TV DISTORTION | <0.5% |
| APERTURE | F2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 25mm |
| CONSTRUCTION | 6E+IRF |
CCL123036MPFR Low distortion wide angle 3.6mm 82° M12 mount lens with HD 14MP IMX117 UAV drone
