Wide Angle M12 S-mount 3.6mm board lens 1/2.3″ for MT9F002 HD 5MP HFOV 101° F2.0

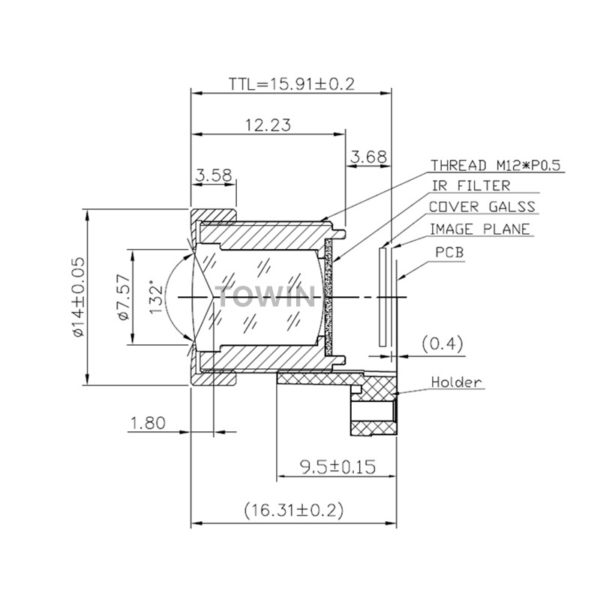

CCL1230365MPF Wide Angle M12 S-mount 3.6mm board lens 1/2.3″ for MT9F002 HD 5MP HFOV 101° F2.0
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 3.65mm |
| F.O.V. | 132°(D) |
| 101°(H) | |
| 74°(V) | |
| DISTORTION | -31% |
| RESOLUTION | 5 MP |
| APERTURE | F1.8 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.39mm |
| TTL | 15.91 |
| M.O.D. | 0.3m |
| CONSTRUCTION | 6G+IR cut |

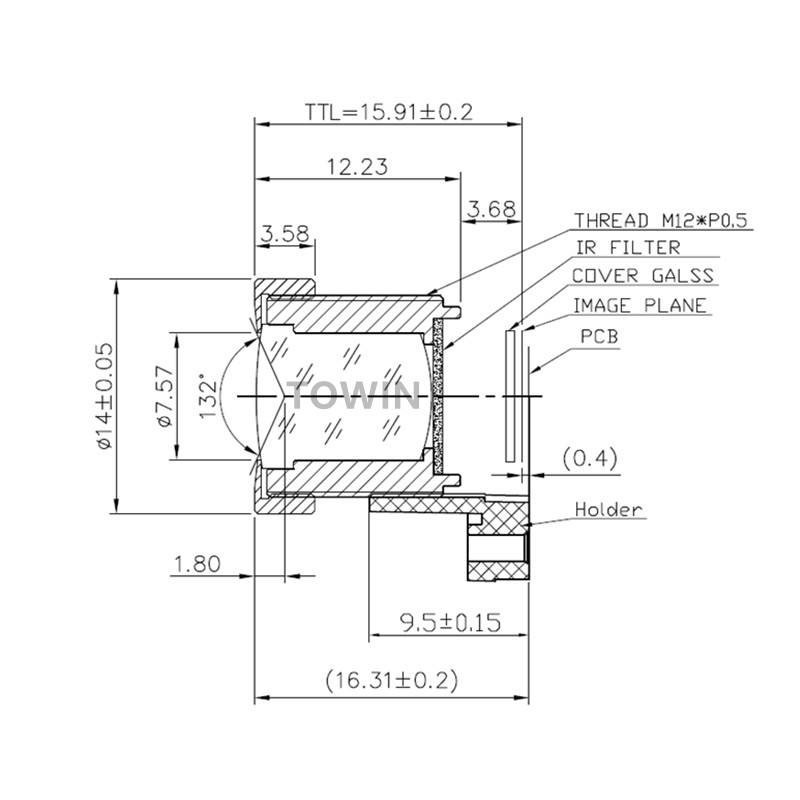

CCL1230365MPF Wide Angle M12 S-mount 3.6mm board lens for MT9F002 HD 5MP HFOV 101° F2.0
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
