Low-light surveillance demands lenses that balance sensitivity, clarity, and durability. M12 lenses, with their compact S-mount design and high-performance optics, have become a go-to solution for security cameras, drones, and industrial vision systems.

Why M12 Lenses Excel in Low-Light Conditions

M12 lenses (also called S-mount or board lenses) are engineered for embedded vision systems where space and power efficiency are critical. Their 12mm diameter and M12×0.5mm thread pitch allow direct integration into PCB-level cameras, making them ideal for surveillance applications.

Key benefits for low-light environments include:

• 1. High Light Sensitivity: Multi-layer anti-reflective coatings minimize glare and maximize light transmission.
• 2. Wide Aperture Options: Lenses like TOWIN’s F2.0 models capture more light in dim conditions.
• 3. IR Compatibility: Some M12 lenses are optimized for 850nm/940nm infrared illumination, enhancing nighttime performance.
• 4. Compact Durability: Ruggedized designs withstand harsh weather, vibrations, and temperature fluctuations.

M12 S-Mount wide-angle lens

TOWIN’s Best M12 Lenses for Low-Light Surveillance

TOWIN, a leading optical lens supplier (view their catalog here), offers a range of M12 lenses tailored for low-light applications. Below are their top-rated models:

1. TOWIN S4121020F-1: Ultra-Low Light Sensitive Lens

Focal Length: 2.0mm (Wide Angle)

Aperture: F2.0

Sensor Compatibility: 1/2.7″ to 1/3″ CMOS/CCD

Key Features:

• 98% light transmittance with multi-layer AR coating.
• IR-corrected design for 850nm infrared lighting.
• IP67 waterproof rating for outdoor use.

Best For: Urban surveillance, license plate recognition, and drone-based monitoring.

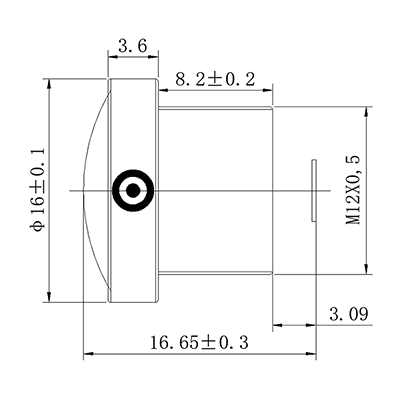

S4121020F-1-1

2. TOWIN S3719620F68: Telephoto with High Dynamic Range

Focal Length: 6.8mm (Telephoto)

Aperture: F2.8

Sensor Compatibility: 1/2.5″ to 1/3″

Key Features:

• Low distortion (<0.3%) for sharp edge-to-edge imaging.
• Supports 400–950nm wavelength range (visible to near-IR).
• Compact 12g weight for drone integration.

Best For: Perimeter security, facial recognition, and long-range industrial inspection.

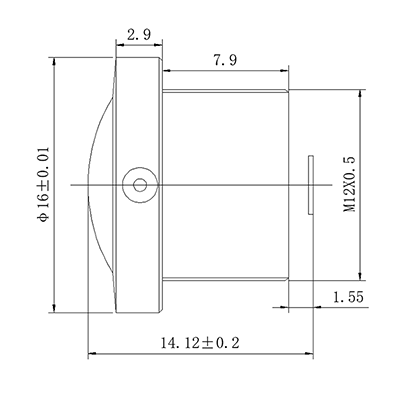

S3719620F68

3. TOWIN S3219020F: Fisheye Lens for 360° Coverage

Focal Length: 1.9mm (Fisheye)

Aperture: F2.2

Sensor Compatibility: 1/2.3″ to 1/3″

Key Features:

• 180° diagonal field of view with minimal barrel distortion.
• Anti-fog coating for humid environments.
• Compatible with TOWIN’s fisheye dewarping software.

Best For: Indoor surveillance, retail analytics, and smart city CCTV.

S3219020F

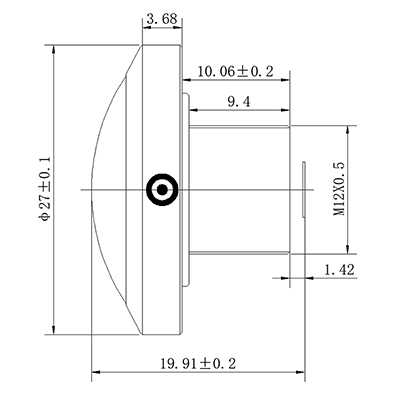

4. TOWIN S3122922: Macro Lens for Detail Capture

Focal Length: 2.9mm (Macro)

Aperture: F2.8

Sensor Compatibility: 1/3″ to 1/4″

Key Features:

• 0.1m minimum focusing distance for forensic-grade detail.
• Adjustable aperture ring (F2.8–F16) for low-light flexibility.
• Shock-resistant housing for industrial use.

Best For: Evidence collection, quality control, and microscopic surveillance.

S2918521F

5. TOWIN S2918521F: Automotive-Grade Rugged Lens

Focal Length: 2.1mm (Wide Angle)

Aperture: F2.0

Sensor Compatibility: 1/2.8″ to 1/3″

Key Features:

• -40°C to +85°C operating temperature range.
• Vibration-resistant design (5G RMS).
• Built-in IR cut filter for day/night switching.

Best For: Vehicle-mounted cameras, traffic monitoring, and construction site security.

S2918521F

How to Choose the Right M12 Lens for Low-Light Surveillance

Selecting the best M12 lenses for low-light surveillance involves evaluating these parameters:

• 1. Aperture Size (F-Number): Lower F-numbers (e.g., F2.0) allow more light in.
• 2. Sensor Compatibility: Ensure the lens matches your camera’s sensor size (e.g., 1/3″).
• 3. IR Performance: Opt for IR-corrected lenses if using infrared lighting.
• 4. Distortion Level: Low-distortion lenses (<1%) are critical for facial recognition.
• 5. Environmental Resistance: Look for IP67/IP68 ratings for outdoor use.

FAQs

1. What makes M12 lenses suitable for low-light conditions?

M12 lenses use anti-reflective coatings and wide apertures to maximize light intake. TOWIN’s models, like the S4121020F-1, achieve 98% light transmittance, critical for dim environments.

2. Can M12 lenses work with infrared illumination?

Yes! Many TOWIN M12 lenses, such as the S3719620F68, are optimized for 850nm/940nm IR wavelengths, enabling nighttime visibility without visible light.

3. Are M12 lenses durable enough for outdoor use?

Absolutely. TOWIN’s automotive-grade lenses (e.g., S2918521F) withstand extreme temperatures, vibrations, and moisture, making them ideal for harsh conditions.

4. How do I install an M12 lens?

M12 lenses screw directly into PCB-mounted S-mount holders. Ensure proper alignment to avoid vignetting or focus issues.

M12 S-mount wide angle 2.8mm board lens

Conclusion

For security professionals, choosing the best M12 lenses for low-light surveillance means prioritizing light sensitivity, durability, and compatibility. TOWIN’s S-mount lenses—from ultra-wide fisheyes to rugged automotive models—deliver unmatched performance in challenging environments.
