A pinhole camera is one of the simplest forms of a camera, functioning without the need for a traditional lens. Instead, it relies on a tiny aperture, known as a pinhole, to project an inverted image onto a surface inside the camera. Despite its simplicity, the concept of the pinhole camera is fundamental to understanding optics and photography.

The Pinhole Camera: A Brief Overview

The pinhole camera operates on the principle of rectilinear propagation of light. When light passes through a small hole, it projects an upside-down image on the opposite wall of the camera. This happens because each point on the illuminated object emits light rays in all directions, and only the rays that pass through the pinhole reach the interior surface, forming a point-to-point correspondence between the object and the image.

The absence of a traditional lens in a pinhole camera means that there is no refraction of light rays, which simplifies the optical path significantly. However, it also means that the image quality is limited by the size of the pinhole. A smaller pinhole produces a sharper image but requires longer exposure times due to reduced light intake, while a larger pinhole allows more light but compromises image sharpness.

TOWIN’s Pinhole Lens and Related Products

While a pinhole camera traditionally does not use a lens, modern advancements in optics have led to the development of pinhole lenses that offer improved performance over simple pinholes. TOWIN, a professional optical lenses supplier, offers a range of lenses, including those suitable for applications that might traditionally use pinhole techniques, providing enhanced control over light and image quality.

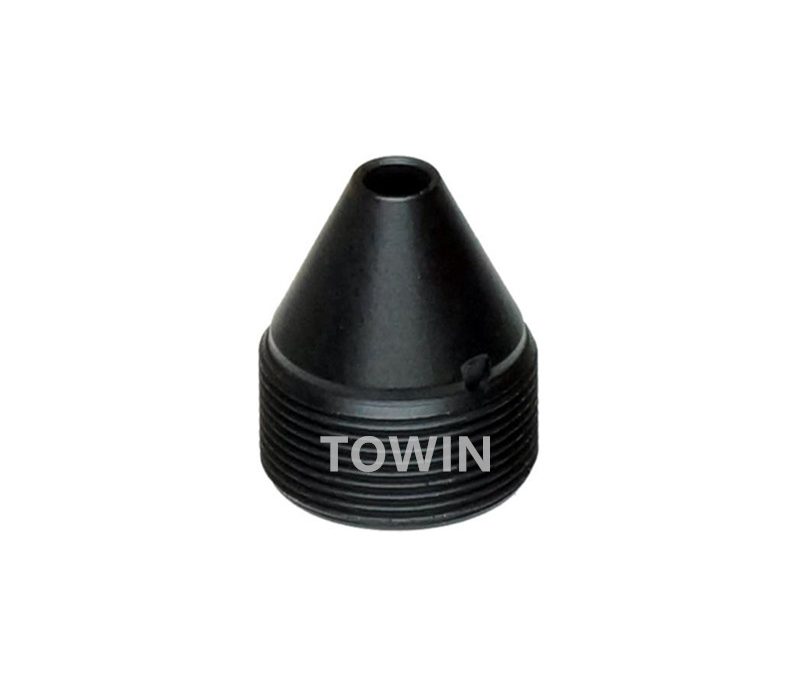

Pinhole Lenses

TOWIN’s Pinhole Lens Features

• Precision Aperture: TOWIN’s pinhole lenses are designed with precision apertures that mimic the function of a pinhole but with greater control over light transmission. This allows for optimized exposure times while maintaining image sharpness.
• Durability and Construction: Made from high-quality materials, TOWIN’s pinhole lenses are built to withstand the rigors of various applications, ensuring longevity and reliability.
• Compatibility: These lenses are designed to be compatible with a range of camera systems, making them versatile tools for researchers, photographers, and engineers alike.

Additional TOWIN Lenses for Versatile Applications

Beyond pinhole lenses, TOWIN offers a comprehensive lineup of optical lenses suitable for various applications:

• M12/S-Mount Lenses: These miniature lenses, also known as board lenses, are designed for direct threading into M12 mounts on PCB cameras. They come in various types, including low distortion, fisheye, wide angle, low light sensitive, and automotive lenses, catering to a wide range of applications from surveillance to automotive imaging.
• C-Mount Lenses: With a flange focal distance of 17.526 mm, C-mount lenses are typically used in machine vision, USB, GigE, and 3D cameras for industrial applications. They are also employed in traffic monitoring systems for intelligent traffic solutions.
• CS-Mount Lenses: Featuring a flange focal distance of 12.526 mm, CS-mount lenses are designed for attachment to CS-mount CCD/CMOS cameras. They are widely used in CCTV, network, and IP cameras for video surveillance, offering high-resolution imaging with options for fixed focal and vari-focal lengths, as well as manual and auto iris controls.

Conclusion

While the traditional pinhole camera operates without a lens, modern advancements in optics, as seen in TOWIN’s product lineup, offer improved alternatives that combine the simplicity of the pinhole concept with enhanced performance and control. TOWIN’s range of optical lenses, including specialized pinhole lenses, provides versatile solutions for a variety of applications, from surveillance and automotive imaging to industrial machine vision. Whether you’re exploring the basics of optics or seeking advanced imaging solutions, TOWIN offers the expertise and products to meet your needs.
