Low Distortion Lens – S16014000814F

S16014000814F is Low distortion M12-mount 1/4″ Megapixel industrial lens with Built-In IR Filter, 9.69° diagonal F.O.V., for machine vision & surveillance.

16mm M12 Low Distortion Industrial Lens

This 16mm M12 Low Distortion Lens is a compact fixed focal length optical solution designed for 1/4-inch megapixel imaging sensors. With a narrow 9.69° diagonal FOV and less than 1% distortion, it provides controlled image coverage and accurate image reproduction for compact industrial imaging systems, inspection cameras, and embedded vision devices.

Product Highlights at a Glance

• 16mm fixed focal length for narrow, controlled field of view.
• Less than 1% distortion for accurate image reproduction.
• M12 × 0.5 mount for compact embedded camera designs.
• 1/4″ megapixel support for detailed industrial imaging.
• 42mm M.O.D. for relatively close-range imaging applications.

16mm M12 Low Distortion Lens Applications

Core Application Scenes

This 16mm M12 low distortion lens is designed for applications where a compact camera needs a relatively narrow field of view and controlled geometric distortion. Its 16mm focal length produces a 9.69° diagonal FOV on a 1/4″ sensor, making it suitable for imaging a defined target area rather than covering a large scene.

The less-than-1% distortion specification is particularly useful when the shape and position of objects need to remain visually consistent across the image. The lens can therefore be considered for compact inspection cameras, embedded machine vision modules, barcode or code-reading equipment, and fixed-position industrial imaging devices where controlled perspective and repeatable image geometry are important.

For engineers developing a compact machine vision lens system, the M12 × 0.5 interface provides a practical mechanical solution for integrating the lens into small camera housings. The 42mm minimum object distance can also support close-range imaging where the camera must be positioned near the inspection target.

When selecting the lens for a specific sensor and working distance, the FOV Calculator can help estimate the required field of view, while the Focal Length Calculator can be used to evaluate focal-length requirements before final optical selection.

Compatible Device List

• Compact Industrial Cameras: Suitable for small-form-factor cameras using 1/4″ megapixel image sensors.
• Embedded Vision Modules: The M12 × 0.5 mount makes the lens suitable for compact embedded imaging platforms with limited installation space.
• Inspection Cameras: The narrow FOV can help concentrate the camera view on a defined inspection region rather than a large working area.
• Code and Object Imaging Systems: The controlled distortion can help preserve the apparent geometry of targets during fixed-position imaging.
• Custom OEM Camera Systems: The compact M12 configuration can be integrated into customized camera housings and embedded vision assemblies.

Designed for compact close-range industrial imaging and fixed-target inspection applications.

Frequently Asked Questions

Q: What sensor format is this 16mm M12 lens designed for?
A: This lens is specified for a 1/4″ image format and provides megapixel-level imaging performance.

Q: What is the field of view of the 16mm M12 lens?

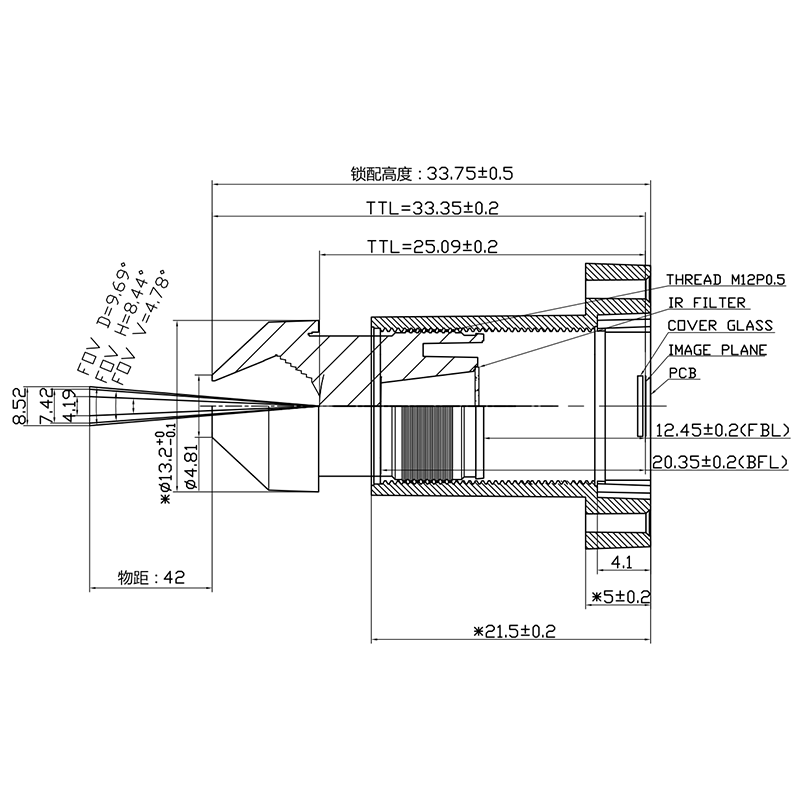

A: On a 1/4″ sensor, the lens provides a 9.69° diagonal FOV, 8.44° horizontal FOV, and 4.78° vertical FOV.

Q: Is this lens suitable for low-distortion imaging?
A: Yes. The specified distortion is less than -1%, making it suitable for applications where controlled geometric distortion is important.

Q: Is this a fixed focal length lens?
A: Yes. The 16mm focal length is fixed, providing a consistent field of view for fixed-camera applications.

Q: What type of mount does this lens use?
A: It uses an M12 × 0.5 mount, a compact interface commonly used in embedded cameras and miniature industrial imaging systems.

Q: What is the minimum object distance of this lens?
A: The specified minimum object distance is 42mm. Actual application performance should be evaluated according to the target size, sensor, and required image quality.

Q: Can this lens be used for machine vision applications?
A: Yes. Its compact M12 mount, megapixel resolution, narrow FOV, and less-than-1% distortion make it suitable for selected compact machine vision and industrial inspection systems.

Q: How can I determine whether 16mm is the correct focal length for my camera?
A: The required focal length depends on sensor size, working distance, and target field of view. You can use the Lens Selection Guide together with the Sensor Guide to evaluate these factors. For a specific project, you can also contact TOWIN for lens selection support.
