Low Distortion Lens – S05612705630-1

S05612705630-1 is low distortion 5-Megapixel CCTV lens with a 1/2.7″ sensor size, 5.6mm focal length, and fixed M12 mount, offering a 64° diagonal field of view.

5.6mm M12 Low Distortion Lens

This 5.6mm M12 lens is a compact 5MP low distortion lens designed for embedded vision, machine vision, and industrial imaging applications. With a 1/2.7″ image format, 64° diagonal FOV, F3.0 aperture, and 10.3mm total track length, it provides a practical optical solution for space-constrained camera designs.

Product Highlights at a Glance

• 5MP resolution for detailed imaging in compact vision systems
• Low distortion design with specified TV distortion below 2.5%
• 64° diagonal FOV provides practical scene coverage without an ultra-wide optical design
• F3.0 fixed aperture for a compact optical configuration
• 10.3mm TTL enables integration into highly space-constrained camera modules
• M12x0.5 mount for embedded and board-level camera systems

5.6mm M12 Low Distortion Lens Applications

Core Application Scenes

The 5.6mm focal length provides a 64° diagonal field of view on a 1/2.7″ sensor, making this lens suitable for camera systems that need moderate scene coverage while maintaining controlled optical distortion.

The specified TV distortion below 2.5% makes the lens suitable for imaging applications where excessive geometric deformation should be limited. It can be considered for object recognition, positioning, visual inspection, and embedded monitoring where image geometry is relevant but an ultra-low-distortion optical design is not required.

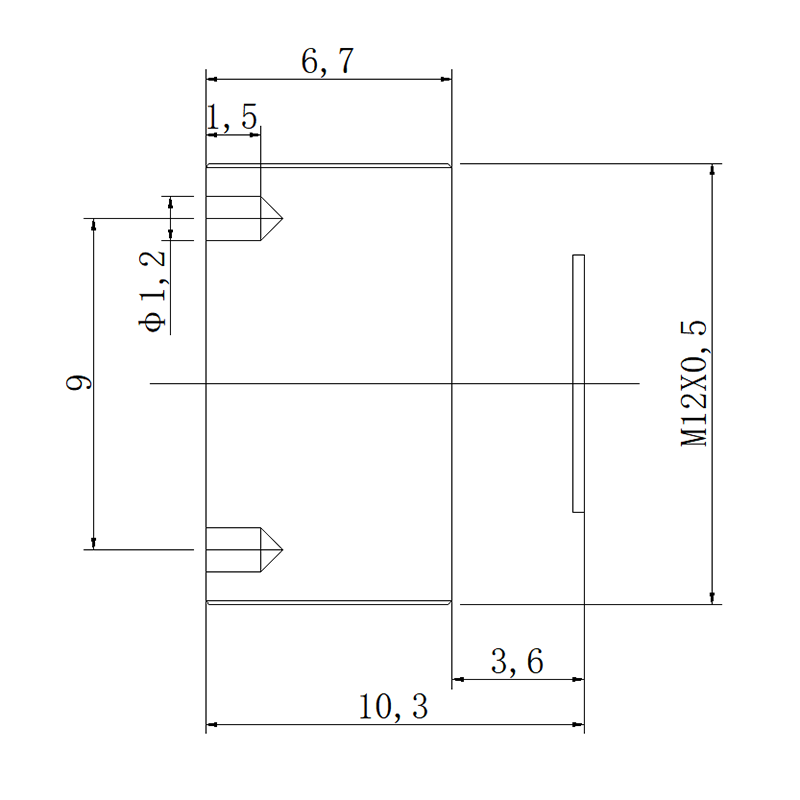

One of the strongest mechanical characteristics is the 10.3mm total track length. This extremely compact optical package can be valuable when the camera housing has limited internal depth. Combined with an M12x0.5 mount, the lens is well suited to compact board-camera and embedded vision designs.

The F3.0 fixed aperture provides a straightforward optical configuration for systems where a fixed lens setup is preferred. The 0.2m MOD also allows the camera to be positioned relatively close to the imaging target.

Typical application scenarios include:

• Compact machine vision systems
• Embedded vision cameras
• Industrial object recognition
• Component positioning
• Automated visual inspection
• Compact AI cameras
• Board-level camera modules
• Robotic vision devices
• Industrial monitoring
• Smart factory imaging
• Space-constrained inspection equipment

For engineers choosing a lens according to sensor format, focal length, and working distance, TOWIN’s Sensor Guide provides useful optical matching information. The Lens Selection Guide can also help evaluate the main parameters before selecting a lens.

Compatible Devices

This lens can be considered for:

• 1/2.7″ industrial cameras
• 5MP embedded cameras
• M12-mount board cameras
• Compact machine vision cameras
• Embedded AI vision modules
• Robotic inspection cameras
• Industrial monitoring devices
• Compact visual inspection systems
• Space-constrained camera modules

Before integration, the camera designer should confirm the sensor’s active imaging area, M12 thread compatibility, and required working distance.

Designed for compact machine vision and embedded imaging applications where low distortion and extremely short optical length are important design requirements.

Frequently Asked Questions

Q1: What type of lens is this 5.6mm M12 lens?
A: It is a fixed focal M12 lens designed for 1/2.7″ sensors, with 5MP resolution and specified TV distortion below 2.5%.

Q2: What is the field of view of the lens?
A: The specified field of view is 64° diagonal, 56° horizontal, and 33° vertical.

Q3: Is this a low distortion lens?
A: Yes. The product is positioned as a low distortion lens, with TV distortion specified below 2.5%. The actual suitability should be evaluated according to the distortion tolerance of the target application.

Q4: Is this lens a fisheye lens?
A: No. Its 64° diagonal FOV and controlled distortion do not indicate a fisheye design. It is better classified as a fixed focal low distortion M12 lens.

Q5: What is the biggest advantage of the 10.3mm TTL?
A: The 10.3mm total track length allows the lens to be considered for camera assemblies where internal optical space is highly limited, such as compact board cameras and embedded vision modules.

Q6: What sensor format is this lens designed for?
A: The specified image format is 1/2.7″. The actual sensor active area should be verified during system integration.

Q7: What is the minimum object distance?
A: The specified MOD is 0.2m, or 200mm.

Q8: What aperture does this lens use?
A: The lens uses a fixed F3.0 aperture.
