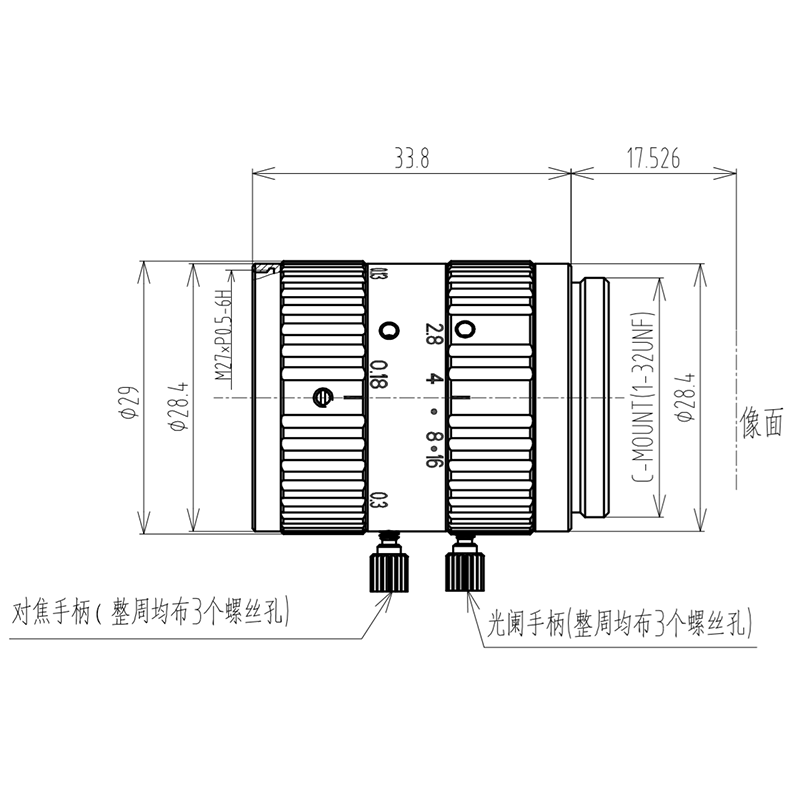

Low Distortion Lens – C252328M10

C252328M10 is 25mm 10-Megapixel low-distortion lens, 2/3″ C-mount lens, manual iris, F2.8~16 Telephoto lens, high resolution Industrial lens.

25mm F2.8–16 10MP C-Mount Low Distortion Industrial Lens

This 25mm C-Mount industrial low distortion lens is designed for 2/3″ sensors and supports up to 10MP resolution with extremely low TV distortion of less than 0.1%. Its 25mm focal length, manual iris, manual focus, and manual zoom adjustment provide precise optical control for factory automation, machine vision inspection, and high-accuracy imaging applications.

Product Highlights at a Glance

• 10MP high-resolution imaging for detailed machine vision inspection.
• <0.1% TV distortion maintains accurate geometric representation.
• 25mm fixed focal length provides a controlled field of view for inspection systems.
• F2.8–16 manual iris allows precise exposure and depth-of-field adjustment.
• C-Mount design supports a wide range of industrial cameras and vision systems.

C-Mount Industrial Low Distortion Lens Applications

Core Application Scenes

This 25mm lens is suitable for applications where high resolution and very low distortion are more important than an extremely wide field of view.

• Factory automation and production-line inspection
• Dimensional measurement and precision inspection
• Electronic component inspection
• Industrial part recognition
• PCB and assembly inspection
• Machine vision imaging
• Barcode and code inspection
• Robotic vision systems
• High-accuracy object detection

Designed for precision machine vision and factory automation applications.

The combination of 10MP resolution and less than 0.1% TV distortion makes this lens particularly suitable for imaging tasks where object geometry and edge positioning need to remain highly consistent across the image.

For more information about selecting optics for industrial inspection, see TOWIN’s Machine Vision solution and Lens Selection Guide.

Compatible Device List

• 2/3″ industrial cameras
• 10MP machine vision cameras
• C-Mount cameras
• Factory automation vision systems
• Robotic inspection cameras
• Industrial inspection equipment
• Measurement and imaging systems

For projects requiring different focal lengths, sensor formats, or optical specifications, explore TOWIN’s C-Mount Lenses.

Frequently Asked Questions

Q: What sensor size is this 25mm lens designed for?
A: This lens is designed for 2/3″ image sensors and supports up to 10MP resolution.

Q: What is the field of view of the 25mm lens?
A: The specified field of view is 25° diagonal, 20° horizontal, and 15° vertical.

Q: How low is the distortion of this lens?
A: The TV distortion is specified at less than 0.1%, making it suitable for applications requiring accurate image geometry.

Q: Is this a fixed focal length lens?
A: Yes. The focal length is 25mm. The lens uses manual focus, manual iris, and manual zoom adjustment as specified.

Q: What type of camera mount does this lens use?
A: It uses a standard C-Mount interface and is designed for compatible industrial cameras.

Q: Can the aperture be adjusted?
A: Yes. The manual iris can be adjusted from F2.8 to F16, allowing users to control exposure and depth of field according to the imaging environment.

Q: What is the minimum object distance?
A: The minimum object distance is 0.1m, providing flexibility for relatively close-range inspection applications.

Q: How can I select the correct focal length for my machine vision system?
A: Focal length should be selected according to the sensor size, required field of view, working distance, and target dimensions. TOWIN’s FOV Calculator can help estimate the required viewing area, while the Focal Length Calculator can assist with focal-length selection.
