S02812312325
CCL1320117MP
03/25/2020
S02812812018
03/26/2020

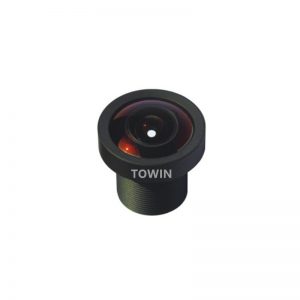

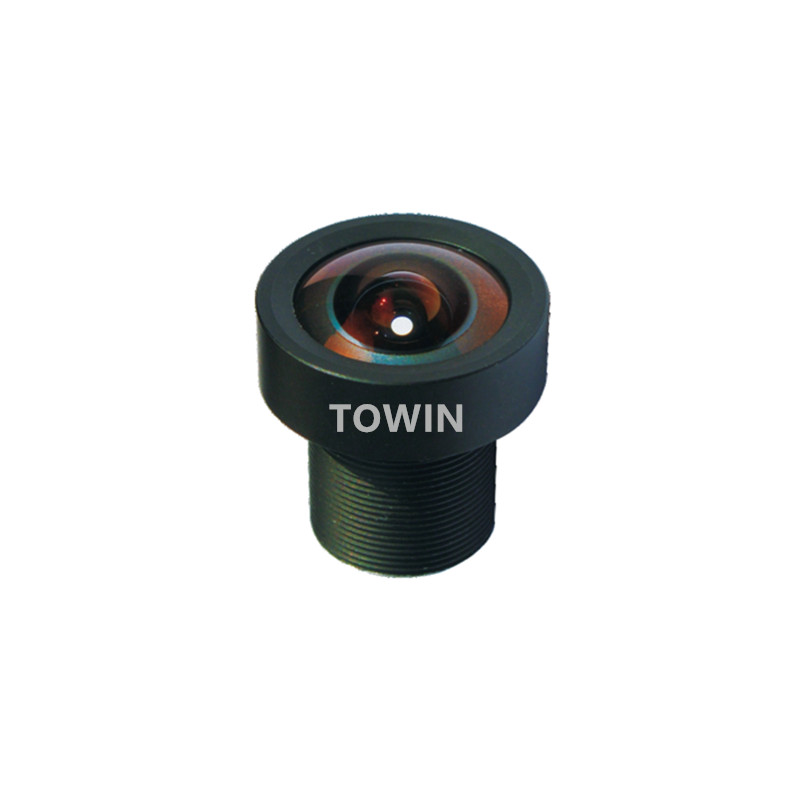

S02812312325 is a 2.8mm drone UAV M12 S-Mount lens. It is designed for 1/2.3″ IMX377, IMX206,12-16 megapixel sensors. And it is super wide angle HFOV 123 degree.
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 2.8mm |
| F.O.V. | 150° |
| 123° | |
| 93° | |
| RESOLUTION | 16 MP |
| DISTORTION | <63% |
| APERTURE | F2.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 24mm |
| STRUCTURE | 5G1M |

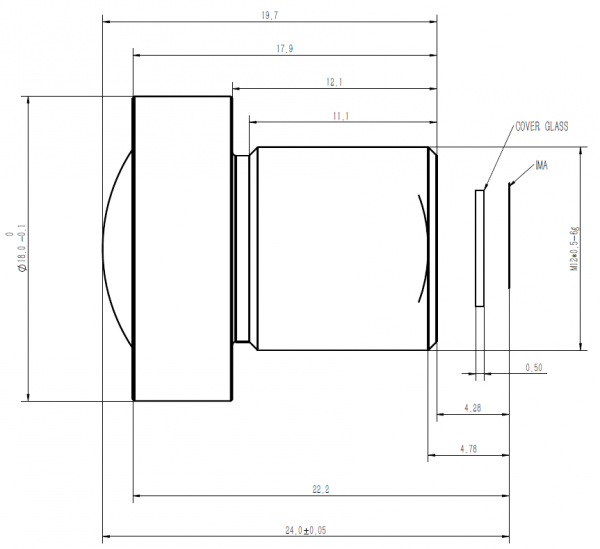

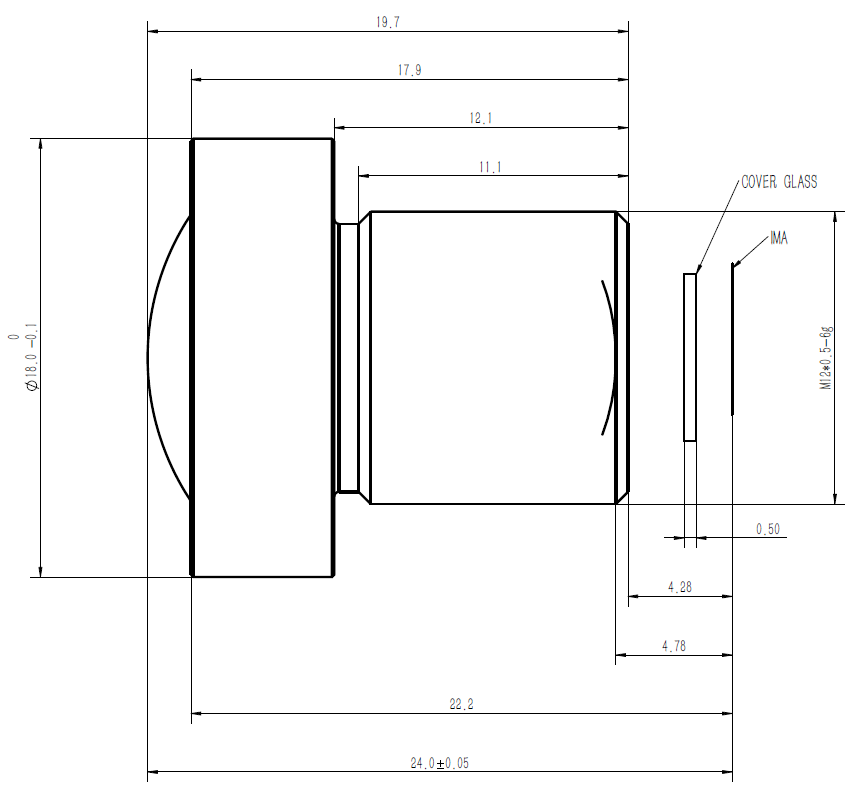

S02812312325 2.8mm drone UAV S-Mount lens-1
