CCL14031MPF
Low distortion wide angle 3.1mm 50° M12 mount lens 1/4″ HD MP for PC web camera
CCL14031MPF Low distortion wide angle 3.1mm 50° M12 mount lens HD MP for PC web camera
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 3.1 mm |
| F.O.V. | 65°(D) |
| 50°(H) | |
| 37°(V) | |
| RESOLUTION | 2 MP |
| DISTORTION | <-1.5% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 1.78mm |

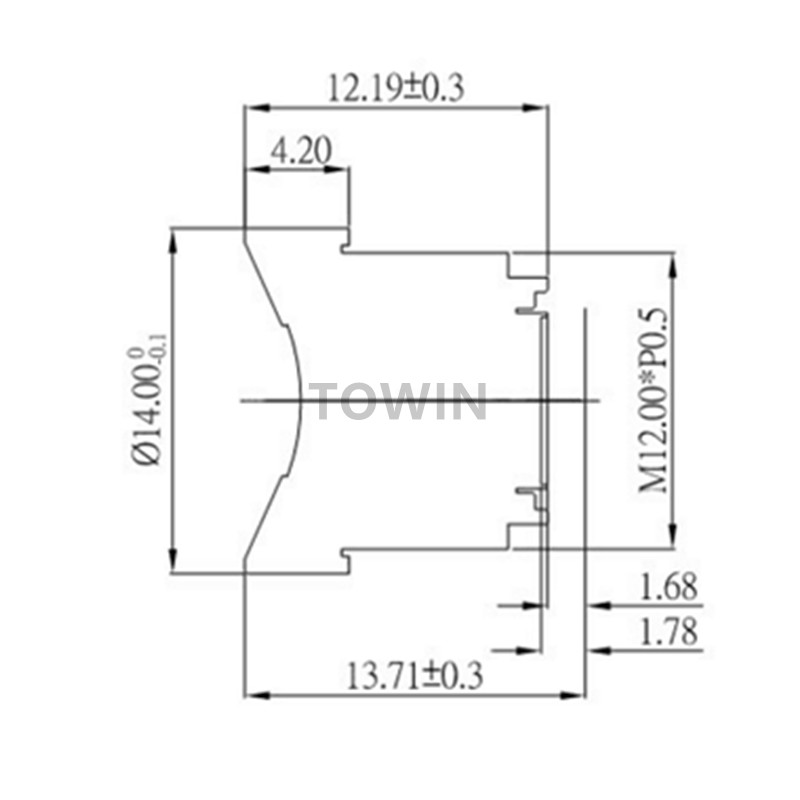

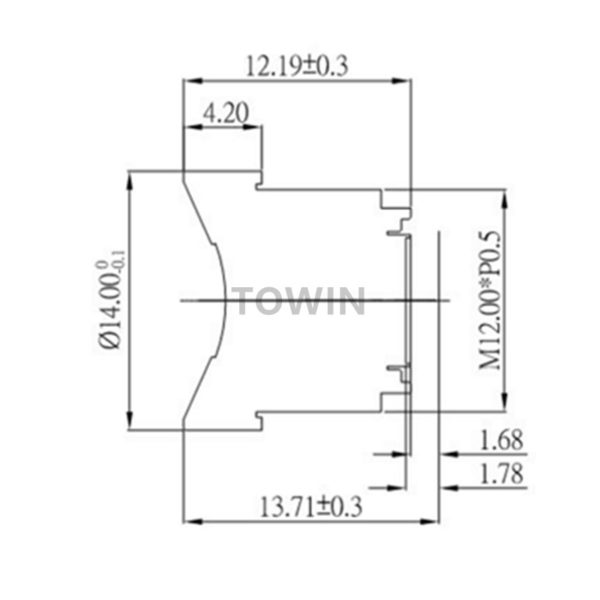

| DIMENSION | Φ14×12.19mm |
| LENS COMPONENT | 5P+IR |
CCL14031MPF Low distortion wide angle 3.1mm 50° M12 mount lens HD MP for PC web camera
