CCL127017MP
1/2.7″ Low distortion wide angle 110° M12 mount lens HD 5MP rectilinear scanning

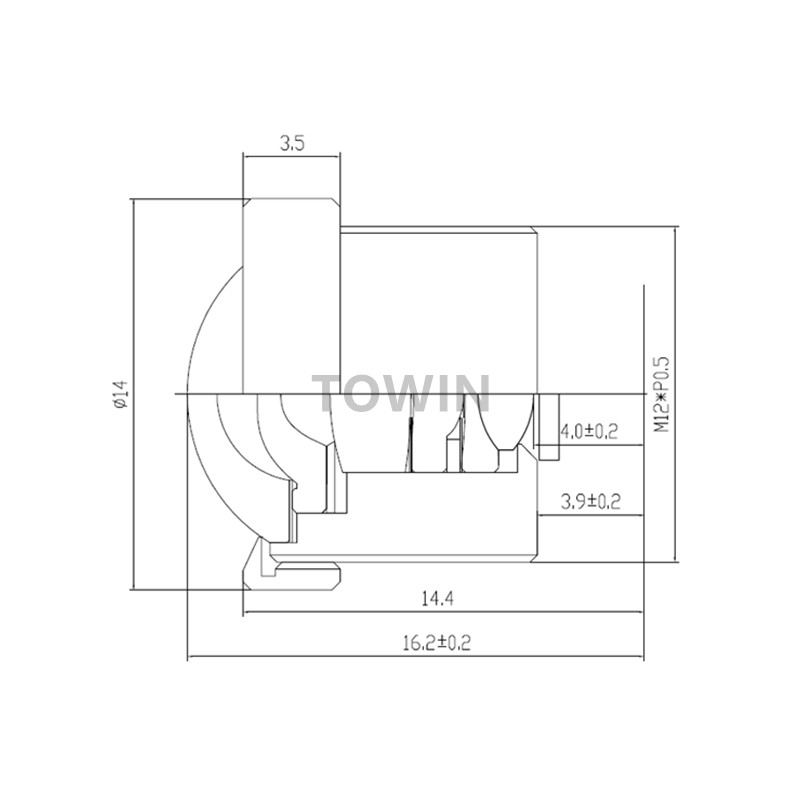

CCL127017MP Low distortion wide angle 1/2.7″ 110° M12 mount lens HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 1.7 mm |
| F.O.V. | 125°(D) |
| 110°(H) | |
| 95°(V) | |
| RESOLUTION | 3 megapixel |
| DISTORTION | <3% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| B.F.L. | 4 mm |
| T.T.L. | 16.2mm |
| CONSTRUCTION | 4G2P |
CCL127017MP Low distortion wide angle 110° M12 mount lens HD 5MP rectilinear scanning
