In the realm of compact imaging systems, M12 Lenses have emerged as a game-changer, offering a blend of miniaturization, high resolution, and versatility. These lenses, also known as S-Mount lenses, are widely used in embedded vision, robotics, automotive systems, and consumer electronics. However, not all M12 Lenses are created equal—their performance hinges on their mount types and design specifications.

Why M12 Lenses Mount Types Matter

M12 Lenses are defined by their 12mm diameter threaded interface (M12 x 0.5 pitch), but their mount types determine compatibility, stability, and optical performance. The right mount ensures seamless integration with cameras, minimizes vibration-induced pixel shifts, and supports high-resolution sensors. Towin, a leader in optical innovation, offers M12 Lenses engineered for durability, low distortion, and customization, making them ideal for demanding environments.

5 Key M12 Lenses Mount Types & Their Applications

1. Standard S-Mount (M12 x 0.5 Thread)

The most common M12 Lenses mount type, the standard S-Mount features a 12mm threaded design for direct attachment to camera boards. Its compact size (e.g., 14mm diameter, 17mm length) suits space-constrained devices like drones, endoscopes, and smart surveillance cameras.

Towin’s Advantage:

• Shock Resistance: Towin’s Rugged Blue Series M12 Lenses withstand 50g shocks, ensuring stability in industrial automation and automotive systems.
• Low Distortion: With distortion as low as -0.25%, these lenses eliminate the need for post-processing corrections, critical for 3D mapping and object tracking.
• High Resolution: Designed for 1/3” to 1/2” sensors with up to 5MP resolution, they capture fine details in medical imaging and quality inspection.

High Resolution S-Mount Lens

2. Fixed Aperture Mount

Fixed aperture M12 Lenses maintain a constant f-number (e.g., f/2.5 or f/8.0), simplifying exposure control in consistent lighting conditions. This mount type is popular in machine vision, where uniform illumination is essential.

Towin’s Advantage:

• Precision Engineering: Towin’s fixed-aperture lenses (e.g., 6mm FL f/8.0) feature 5-element designs with λ/4 MgF2 coating, minimizing chromatic aberration and enhancing contrast.
• Wide Field of View: With a 48° horizontal FOV on 1/3” sensors, they excel in wide-angle monitoring applications like retail analytics and traffic management.

Iris Fixed lens

3. Adjustable Focus Mount

Some M12 Lenses allow manual focus adjustment via a threaded ring, enabling flexibility in varying working distances. This mount type is valuable in prototyping and multi-purpose setups.

Towin’s Advantage:

• Customizable Focus Range: Towin offers lenses with focus ranges from 100mm to infinity, adaptable to laboratory instruments and robotic arms.
• Secure Locking Mechanism: Adjustable mounts include locking screws to prevent accidental focus shifts during operation.

Low-distortion-M12-fixed-focus-industrial-lens

4. IR-Cut Filter Integrated Mount

For color-accurate imaging in daylight, M12 Lenses with built-in IR-cut filters block infrared light, preventing color casts. This mount type is vital for security cameras and consumer electronics.

Towin’s Advantage:

• Dual-Band Performance: Towin’s IR-cut lenses transmit visible light (400–700nm) while blocking IR, ensuring true-to-life colors in facial recognition and smart doorbells.
• Compact Design: The filter is embedded within the lens assembly, maintaining the M12 form factor without adding bulk.

M12 CCTV lens 3-Megapixel IR corrected

5. C-Mount Adapter Compatible Mount

While M12 Lenses are inherently compact, adapters allow them to fit C-mount cameras, expanding their use in legacy systems. However, compatibility requires careful alignment to avoid vignetting.

Towin’s Advantage:

• Seamless Integration: Towin provides C-mount adapters with rubber O-rings to dampen vibrations, making M12 Lenses viable for industrial microscopy and aerospace imaging.
• Cost Efficiency: Retrofitting M12 Lenses onto C-mount cameras reduces costs compared to full system upgrades.

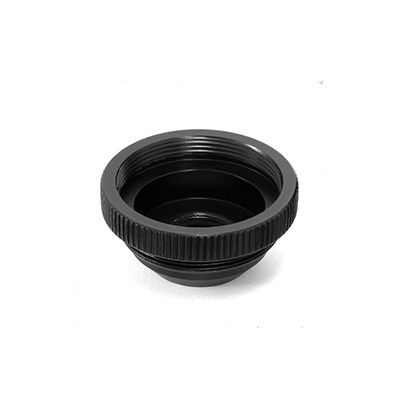

C-Mount Adapter Compatible Mount

Towin’s M12 Lenses: Redefining Precision & Durability

Towin’s M12 Lenses stand out for their ruggedness, optical clarity, and adaptability. Key features include:

• Shock Resistance: Up to 50g shock tolerance for harsh environments.
• Low Distortion: ≤0.3% distortion for accurate geometric imaging.
• High Resolution: Support for 5MP sensors with 1.4µm pixel sizes.
• Customization: Tailored focal lengths, apertures, and coatings to meet specific needs.

For instance, Towin’s 10mm FL f/2.5 Rugged Blue Series M12 Lens weighs just 5g yet delivers a 27.1° horizontal FOV on 1/3” sensors, ideal for autonomous vehicle navigation. Similarly, the 6mm FL f/8.0 variant offers a 47.9° FOV with minimal distortion, perfect for license plate recognition.

FAQs

1. What is the main difference between M12 and C-mount lenses?

M12 Lenses are smaller (12mm thread) and designed for compact cameras, while C-mount lenses have a 1” diameter thread and are used in larger industrial systems. M12 Lenses often require adapters for C-mount compatibility.

2. Can M12 Lenses be used outdoors?

Yes! Towin’s M12 Lenses feature ruggedized designs with aluminum housings and weather-resistant coatings, making them suitable for outdoor surveillance and agricultural drones.

8mm-M12-CCTV-lens

Conclusion

M12 Lenses mount types play a pivotal role in unlocking the full potential of compact imaging systems. Whether you need low-distortion lenses for machine vision or shock-resistant optics for automotive applications, Towin’s M12 Lenses deliver unmatched precision and reliability.
