Key Takeaways

• M12 board lenses (S-mount) adopt a standard M12X0.5 thread design, enabling direct PCB board mounting for compact IoT device integration.
• TOWIN’s megapixel M12 board lenses support 5MP+ high resolution with IR correction and multi-coating technology for 24/7 day/night use in IoT scenarios.
• The miniature size, low distortion and high light sensitivity of M12 board lenses make them the optimal optical choice for diverse smart IoT devices.
• TOWIN offers a full range of M12 board lens variants (wide angle, low light, pinhole, etc.) with custom design, fast shipping and professional one-stop service.
• Compared with C-mount/CS-mount lenses, M12 board lenses feature smaller size and higher cost performance, perfectly matching the embedded design needs of IoT devices.
• TOWIN’s M12 board lenses follow strict tolerance control (±0.2/±0.3mm) to ensure stable optical performance for mass IoT device deployment.

Introduction

The rapid development of the Internet of Things (IoT) has raised higher requirements for optical components in smart devices: compact size, high resolution, easy integration and stable performance have become core demands for IoT visual collection modules. Among various optical lens interfaces, M12 board lenses (also known as M12/S-mount lenses or miniature board lenses) have become the first choice for IoT device manufacturers due to their standardized thread design, ultra-compact structure and high adaptability.

As a professional optical lenses supplier in China with R&D and manufacturing capabilities, TOWIN has focused on the R&D and production of megapixel M12 board lenses for IoT scenarios for a long time. Adhering to the brand concept of PROFESSIONAL-ALL-EASY-FAST, TOWIN’s M12 board lenses cover 5MP+ high resolution, multiple focal lengths and various functional types, perfectly matching the visual collection needs of smart security, industrial IoT, smart home, intelligent traffic and other IoT devices. This article will fully interpret the core definition, technical parameters, application scenarios and selection guide of M12 board lenses, and detail the advantages and product layout of TOWIN’s M12 board lenses for IoT devices.

Core Definition & Key Advantages of M12 Board Lenses

Core Definition

M12 board lenses, also called M12/S-mount lenses or miniature board lenses, are a type of optical lens with a standard M12X0.5 metric thread interface. They are designed for direct threaded installation into the M12 mount of PCB (Printed Circuit Board) cameras, so they are named “board lenses”. Due to their ultra-small physical size, they are also known as “miniature lenses” in the industry, and are the core optical component for embedded visual collection in compact electronic devices such as IoT terminals.

Key Advantages

TOWIN’s megapixel M12 board lenses retain all the inherent advantages of traditional M12 lenses and are optimized for IoT application characteristics, with the following core competitive advantages:

• Standardized interface & easy integration: M12X0.5 universal thread design, no additional adapter required, direct mounting on PCB camera modules, reducing IoT device assembly time and cost.
• Ultra-compact miniature size: Adapt to the embedded and miniaturized design trend of IoT devices, and can be seamlessly integrated into small smart terminals such as wearable devices and micro sensors.
• 5MP+ megapixel high resolution: Meet the high-definition visual collection needs of IoT devices, and realize clear image capture for smart monitoring, industrial detection and other scenarios.
• Diverse functional types: Cover low distortion, fisheye, wide angle, low light sensitive, pinhole and automotive M12 board lenses, matching different IoT application scenarios.
• Day/night dual-use performance: Adopt multi-coating technology and IR correction design, ensure clear imaging in low light/night environment, and meet the 24-hour working demand of IoT devices.
• Strict tolerance control: All optical parameters follow high-precision tolerance standards (±0.2/±0.3mm), ensuring stable and consistent performance for mass production of IoT devices.
• Customizable design: TOWIN provides personalized R&D and manufacturing according to IoT customers’ special requirements for focal length, aperture, size and resolution.

25mm M12 low-distortion lens

Typical Application Scenarios of Megapixel M12 Board Lenses

TOWIN’s megapixel M12 board lenses are designed for the diverse visual collection needs of IoT devices, and their application scenarios cover all major smart IoT fields. Different functional types of M12 board lenses are matched with corresponding IoT scenarios to achieve optimal optical performance:

• Smart security IoT devices: Network cameras, mini surveillance cameras, smart doorbells and visual alarm sensors; matching wide angle/low light sensitive M12 board lenses for 24-hour high-definition monitoring.
• Industrial IoT terminals: Embedded visual detection sensors, industrial IoT cameras, AGV visual navigation modules; matching low distortion M12 board lenses to ensure high-precision image collection for industrial detection.
• Intelligent traffic IoT nodes: Mini traffic monitoring sensors, vehicle flow statistics cameras, electric vehicle visual positioning modules; matching automotive grade M12 board lenses with high anti-interference performance.
• Smart home devices: Smart cat eyes, panoramic smart cameras, home security sensors; matching fisheye/wide angle M12 board lenses to achieve large-field-of-view imaging.
• Smart agriculture IoT: Field visual monitoring sensors, greenhouse crop growth detection cameras, unmanned aerial vehicle (UAV) mini visual modules; matching high light sensitivity M12 board lenses to adapt to outdoor complex light environments.
• Wearable & portable IoT devices: Sports cameras, mini visual recorders, smart glasses visual modules; matching pinhole/ultra-mini M12 board lenses for compact integration.
• Smart city IoT terminals: Street lamp integrated monitoring sensors, public area mini cameras, environmental monitoring visual modules; matching weather-resistant M12 board lenses to adapt to outdoor harsh environments.

Key Technical Parameters of Megapixel M12 Board Lenses (IoT-Optimized)

The optical performance of M12 board lenses for IoT devices is determined by core technical parameters. TOWIN’s megapixel M12 board lenses follow high-precision optical design standards, and all parameters are optimized for IoT application characteristics. The following table details the key technical parameters, their definitions, IoT adaptation requirements and TOWIN’s standard product specifications:

TOWIN Megapixel M12 Board Lenses for IoT Devices

As a professional Chinese optical lens supplier with independent R&D and manufacturing capabilities, TOWIN has built a complete product system of megapixel M12 board lenses for IoT scenarios, adhering to the brand concept of PROFESSIONAL-ALL-EASY-FAST and providing one-stop optical solutions for global IoT device manufacturers. Our M12 board lens lineup covers low-distortion wide-angle, ultra-precise low-distortion telephoto, and ultra-wide fisheye types, all optimized for IoT device characteristics such as miniaturization, high-definition imaging, and 24/7 operation.

Core Product Advantages

Full range of functional types: Cover low distortion wide-angle, ultra-precise low distortion telephoto, and 199° ultra-wide fisheye M12 board lenses, matching the visual collection needs of all IoT scenarios from panoramic monitoring to high-precision long-distance detection.

High-resolution multi-spec configuration: Support 8MP/12MP megapixel imaging, adapt to multiple sensor formats (1/1.7″, 1/1.8″, 2/3″, etc.), and meet the HD visual collection requirements of different IoT devices.

IoT-optimized optical design: Equipped with IR correction/built-in IRCF, multi-coating technology, and strict distortion control; partial models support multi-sensor adaptation, realizing day/night dual-use and high-precision imaging.

Ultra-compact & standardized installation: All adopt M12X0.5 standard thread, direct PCB board mounting, miniaturized physical size, and perfect fit for the embedded design of IoT devices.

High-precision manufacturing & mass production compatibility: Strict tolerance control for key optical and physical parameters, 6G optical structure for partial models, ensuring consistent product performance for mass IoT device deployment.

Customizable R&D & fast delivery: Provide personalized design of focal length, aperture, and sensor adaptation according to IoT customer needs; mainstream models support fast selection and shipping.

TOWIN M12 Lenses

We have launched 5 hot-selling flagship M12 board lens models for different IoT application scenarios, covering low-distortion wide-angle, ultra-precise low-distortion medium/telephoto, and ultra-wide fisheye types. Each model is engineered with targeted optical performance to match the visual collection needs of specific IoT devices.

1. CCL117049MP – 12MP Low Distortion Wide-Angle Lens

• Key Specs Highlights
  • Sensor format: 1/1.7″
  • Focal length: 4.9mm
  • Resolution: 12MP
  • Aperture: F2.2
  • Max distortion: < -8%
  • Diagonal FOV: 96°
  • Core features: IR corrected, fixed iris, ultra-compact size (Φ20×24.4mm), M.O.D. 0.3m
• IoT Application Analysis
  • This wide-angle high-resolution model is the optimal choice for IoT devices requiring large field of view and low-light imaging. The F2.2 large aperture ensures high light sensitivity for clear imaging in low-light environments, and IR correction realizes 24/7 day/night operation—ideal for smart security wide-angle monitoring (smart doorbells, mini surveillance cameras), smart home panoramic visual collection, and industrial IoT wide-angle on-site detection. The 96° diagonal FOV enables single-lens coverage of large spaces, reducing the number of IoT camera deployments and hardware costs.

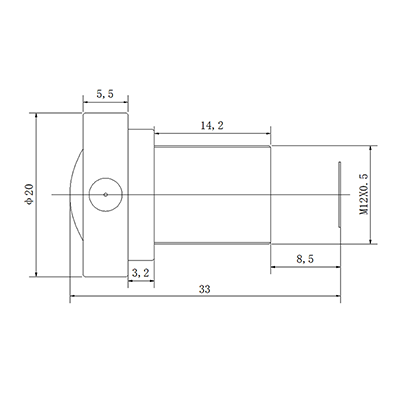

4.9mm Low distortion lens

2. CCL121630MPF – 8MP Ultra-Low Distortion M12 CCTV Lens

• Key Specs Highlights
  • Sensor format: 1/1.8″, 1/2.5″
  • Focal length: 16mm
  • Resolution: 8MP
  • Aperture: F3.0
  • Max distortion: < 0.3%
  • Core features: Built-in IRCF, multi-sensor adaptation, fixed iris, M.O.D. 0.3m
  • Dual FOV support: 31°(D) for 1/1.8″, 26°(D) for 1/2.5″
• IoT Application Analysis
  • With ultra-low distortion (<0.3%) and multi-sensor adaptation, this model is designed for IoT devices requiring medium-distance precise imaging. The built-in IRCF ensures stable infrared light correction, and the dual-sensor compatibility makes it suitable for flexible matching of different IoT camera modules. It is widely used in intelligent traffic IoT (road bayonet monitoring, vehicle flow statistics), industrial IoT medium-distance visual detection (conveyor belt product inspection), and smart city medium-distance perimeter monitoring.

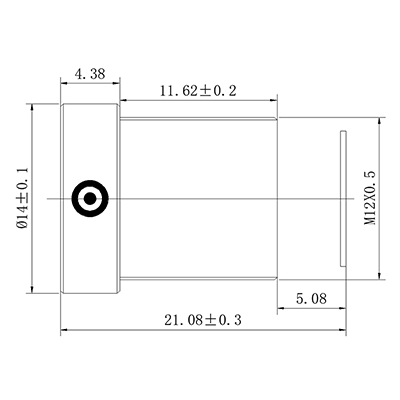

Low-distortion 8-Megapixel CCTV lens

3. S25023002080 – 8MP Extreme Low Distortion Lens

• Key Specs Highlights
  • Sensor format: 2/3″
  • Focal length: 25mm
  • Resolution: 8MP
  • Aperture: F8.0
  • Max distortion: < 0.1% (extreme low)
  • Diagonal FOV:25°
  • Core features: 6G optical structure, fixed iris, M.O.D. 0.2m, compact T.T.L. 26.2mm
• IoT Application Analysis
  • As the ultra-precise low-distortion flagship model of TOWIN’s M12 board lens lineup, its 0.1% extreme distortion control and 6G optical structure ensure pixel-level high-precision imaging—perfect for industrial IoT high-precision visual detection scenarios. It is widely applied in AGV visual navigation, industrial robot precision positioning, and high-precision defect detection of small parts on production lines. The 25mm telephoto and 25° FOV also make it suitable for long-distance small-area security monitoring of IoT terminals such as industrial parks and data centers.

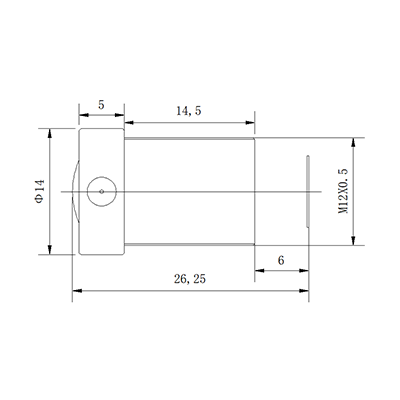

M12 Board Lenses

4. S50023001080 – 12MP Low Distortion Long-Focal M12 Lens

• Key Specs Highlights
  • Sensor format: 2/3″, 1/2″
  • Focal length: 50mm
  • Resolution:12MP
  • Aperture: F8.0
  • Max distortion: < 0.3%
  • Dual FOV support:12.6°(D) for 2/3″,9.2°(D) for 1/2″
  • Core features: Multi-sensor adaptation, fixed iris, M.O.D. 0.3m
• IoT Application Analysis
  • Combining 12MP high resolution and 50mm long focal length, this model is the best choice for IoT devices requiring long-distance high-definition precise imaging. The multi-sensor adaptation and low distortion control realize clear and undistorted imaging of distant targets, which is widely used in industrial IoT long-distance detection (remote inspection of large industrial equipment), smart city long-distance perimeter security (airport, high-speed rail station peripheral monitoring), and intelligent traffic long-distance road condition monitoring. Its 12MP high resolution also supports AI-based target recognition and tracking for IoT intelligent analysis systems.

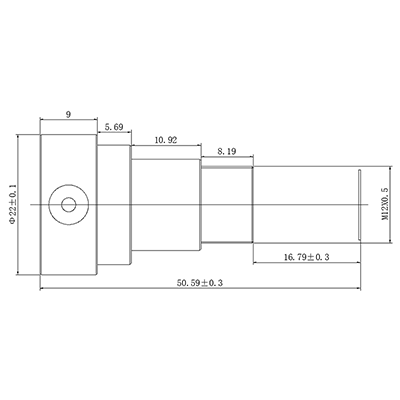

M12 Board Lenses

5. S7820026F – 8MP 199° Ultra-Wide Fisheye Lens

• Key Specs Highlights
  • Image format: Max Φ7.79mm
  • Focal length:2.29mm
  • Resolution:8MP
  • Aperture: F2.6
  • Max distortion: < -98%
  • Diagonal FOV:199° (ultra-wide)
  • Core features: Built-in IRCF, fixed iris, ultra-wide FOV, M.O.D. 0.2m, T.T.L. 22.98mm
• IoT Application Analysis
  • This ultra-wide fisheye model is engineered for IoT devices requiring 360° panoramic visual collection. The 199° ultra-wide diagonal FOV enables single-lens full coverage of large spaces, greatly reducing the number of IoT camera deployments and hardware costs. It is widely used in intelligent traffic IoT (intersection panoramic monitoring), retail/banking IoT (store/ATM panoramic surveillance), industrial automation (360° defect inspection on conveyor belts), and IoT drones (lightweight aerial panoramic reconnaissance). The built-in IRCF and F2.6 aperture ensure clear day/night imaging in various complex light environments.

Comprehensive Specs & Application Summary of TOWIN IoT-Optimized M12 Board Lenses

Contact TOWIN for Procurement

Whether you need standard megapixel M12 board lenses for general IoT scenarios or customized optical solutions for special high-precision/ultra-wide FOV IoT applications, TOWIN’s professional R&D and sales team can provide one-stop services from product selection to mass production.

• Official Email: info@towin-elec.com
• Brand Concept: PROFESSIONAL-ALL-EASY-FAST (Professional R&D, full product range, easy selection, fast delivery)
• Value-added Service: Free sample testing, personalized optical parameter customization, technical support for IoT camera module matching

Selection Guide for IoT-Oriented Megapixel M12 Board Lenses

Selecting the right M12 board lens is the key to ensuring the visual collection performance of IoT devices. TOWIN recommends the following step-by-step selection guide, combining the actual application scenarios and design requirements of IoT devices to make the optimal choice:

• Match the image sensor size of IoT cameras: Confirm the optical format of the sensor (e.g., 1/2″) and select the M12 board lens with the corresponding matching specification to avoid imaging black edges/ deformation.
• Determine the resolution requirement: According to the HD level of IoT visual collection, select 5MP+ megapixel M12 board lenses (TOWIN’s mainstream standard) to meet the clear imaging demand.
• Select the appropriate focal length: Choose wide angle focal length for large field of view scenarios (e.g., smart home panoramic monitoring); choose standard/ low distortion focal length for high-precision collection scenarios (e.g., industrial IoT detection).
• Consider the actual working environment: Select low light sensitive M12 board lenses for low light/night working scenarios; select weather-resistant automotive grade lenses for outdoor IoT scenarios (e.g., intelligent traffic).
• Check the installation space of IoT devices: Confirm the physical size of the lens installation position, and select the ultra-mini M12 board lens for compact embedded IoT devices (e.g., wearable devices).
• Confirm the special optical performance requirements: Select IR corrected/multi-coated M12 board lenses for 24/7 working IoT devices; select pinhole M12 board lenses for hidden visual collection scenarios.
• Evaluate the mass production demand: Prioritize M12 board lens suppliers with strict tolerance control, fast delivery and customizable design (e.g., TOWIN) to meet the mass production needs of IoT devices.

Comparison of M12 Lenses with C-mount/CS-mount

IoT device manufacturers often need to compare different optical lens interfaces when selecting lenses. M12/S-mount, C-mount and CS-mount are the three most common industrial optical interfaces. The following table comprehensively compares the core parameters, characteristics and IoT compatibility of the three interfaces, to clearly show the advantages of M12 lenses for IoT devices:

Core Conclusion:

For compact IoT devices with miniaturized, embedded and mass production requirements, M12 lenses are the optimal optical choice; C-mount lenses and CS-mount lenses are more suitable for large industrial/surveillance terminals with no strict size requirements, and are not the first choice for most small/medium IoT devices.

FAQs

Q1: What is an M12 board lens?

A1: An S-mount lens with a standard M12×0.5 thread, engineered for direct PCB mounting in compact camera modules.

Q2: Why choose M12 board lenses for IoT?

A2: Ultra-compact size, simple integration, high cost-efficiency, and stable mass production performance fit IoT miniaturization needs.

Q3: What resolution and sensors do they support?

A3: Typical options are 5MP–12MP, compatible with 1/1.7″, 1/1.8″, 2/3″ and smaller sensor formats.

Q4: Do they support 24/7 day-night imaging?

A4: Yes. IR correction or built-in IRCF, paired with multi-coating, ensures clear low-light and infrared imaging.

Q5: Can M12 lenses be customized?

A5: Yes. Focal length, aperture, distortion control, and sensor matching can be adjusted for specific scenarios.

Conclusion

In the era of the Internet of Things, the demand for high-definition, compact and highly adaptable visual collection components is increasing with the popularization of smart devices. M12 board lenses (S-mount) have become the core optical solution for IoT devices due to their standardized M12X0.5 thread design, ultra-compact size, 5MP+ megapixel resolution and easy integration characteristics, and are widely used in smart security, industrial IoT, smart home, intelligent traffic and other major IoT fields.

As a professional Chinese optical lens supplier with R&D and manufacturing capabilities, TOWIN has built a complete and optimized megapixel M12 board lens product system for IoT scenarios, adhering to the brand concept of PROFESSIONAL-ALL-EASY-FAST. TOWIN’s M12 board lenses cover all functional types, support day/night dual-use, follow strict high-precision tolerance control, and provide customizable design and fast delivery services, perfectly meeting the visual collection and mass production needs of global IoT device manufacturers.

Whether you need standard megapixel M12 board lenses or personalized custom optical solutions for special IoT scenarios, TOWIN can provide you with professional one-stop services. Contact us via email info@towin-elec.com and start your IoT optical lens customization and procurement journey!
