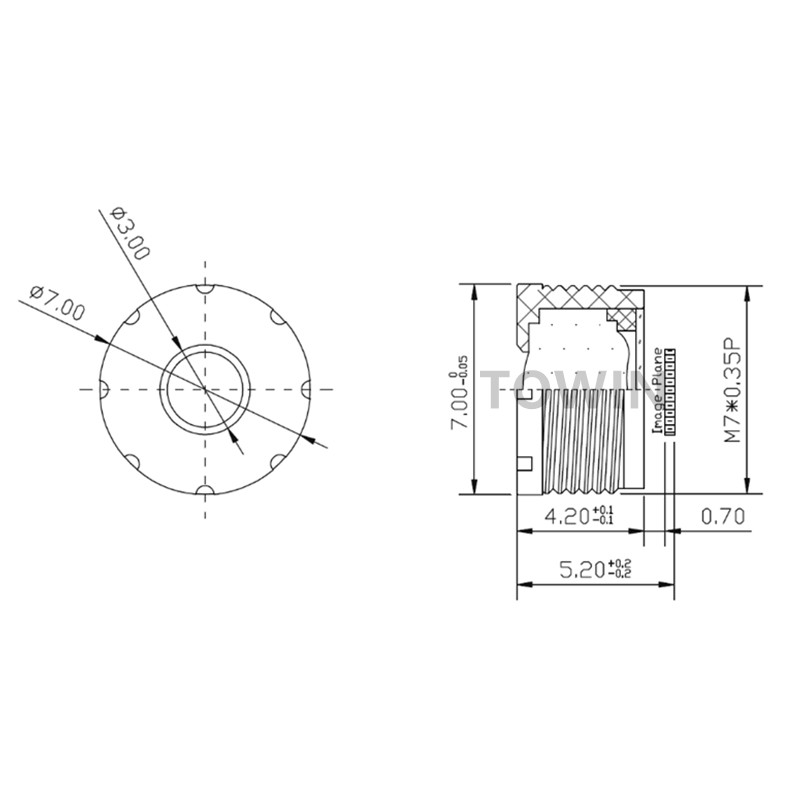

M7 mount lens 3.2mm 1/4″ low distortion lens for PC web cam
CCL14032MPR M7 mount lens 3.2mm 1/4″ low distortion lens for PC web cam.
IMAGE FORMAT | 1/4″ |
FOCAL LENGTH | 3.2mm |
D. F.O.V. | 65° |
RESOLUTION | Megapixel |
DISTORTION | <1% |
APERTURE | F2.5 |
MOUNT | M7X0.35 |
IRIS | Fixed |
FOCUS | Manual |
ZOOM | Fixed |
F.B.L. | 0.7mm |
M.O.D. | 0.1m |
CONSTRUCTION | 4P |
