CCL14018MPF是1.8mm M12 S接口广角板机镜头。 它设计用于1/4“传感器芯片，例如JX-H62，AR0140AT，OV9712。 这是很短的光学总长T.T.L. 只有15毫米。
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 1.8mm |
| F.O.V. | 180°(D) |
| 130°(H) | |
| 99° (V) | |
| RESOLUTION | Megapixel |
| OPTICAL DISTORTION | <-87.5% |
| APERTURE | F2.5 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| R.I. | 65% |
| B.F.L. | 3.20mm |
| LENS COMPOMEMT | 6G+IR cut filter |

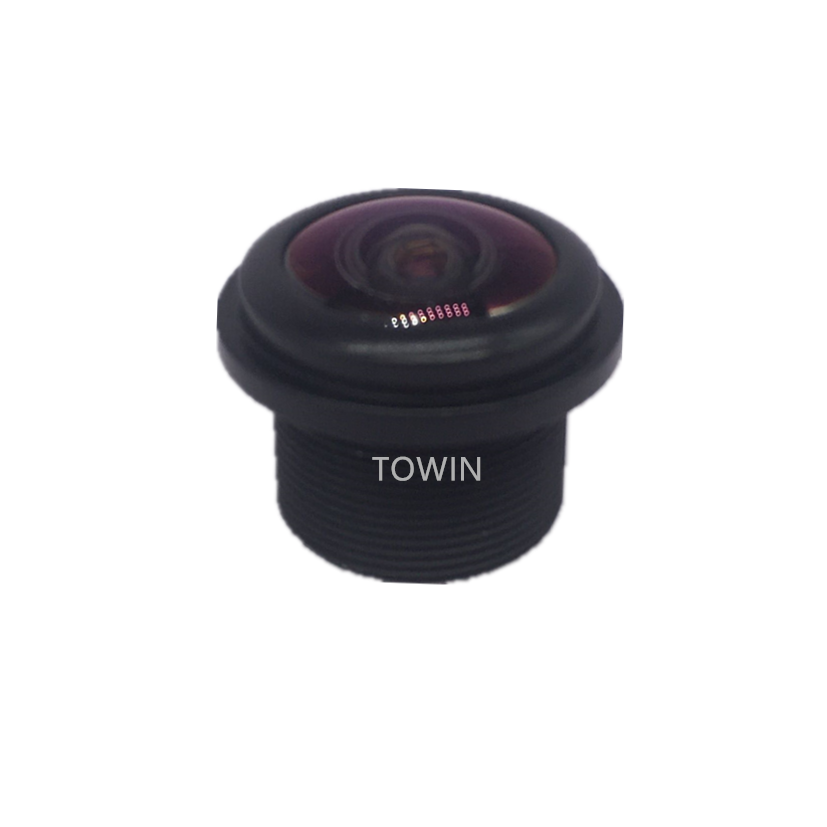

CCL14018MPF 1.8mm wide angle M12 S-mount board lens
