CCL1203MP是一款3mm广角M12闭路电视监控板机镜头，用于1/2″传感器Aptina MT9M001、MT9T001和F2.0低光IP摄像机，是一款红外校正镜头，用于日夜安全视频监控。
| IMAGE FORMAT | 1/2″ |
| FOCAL LENGTH | 3mm |
| F.O.V. | 160°(D) |
| 130°(H) | |
| 98°(V) | |
| RESOLUTION | 3Megapixel |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 5.08mm |
| M.O.D. | 0.1m |
| IR | Corrected |

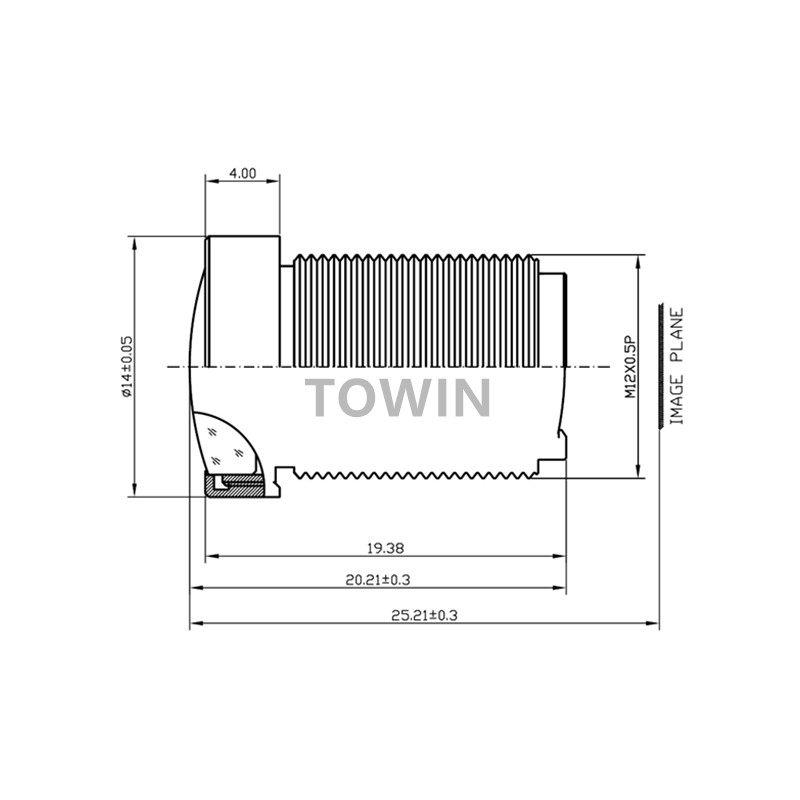

CCL12030MP 3mm wide angle M12 S mount CCTV lens
